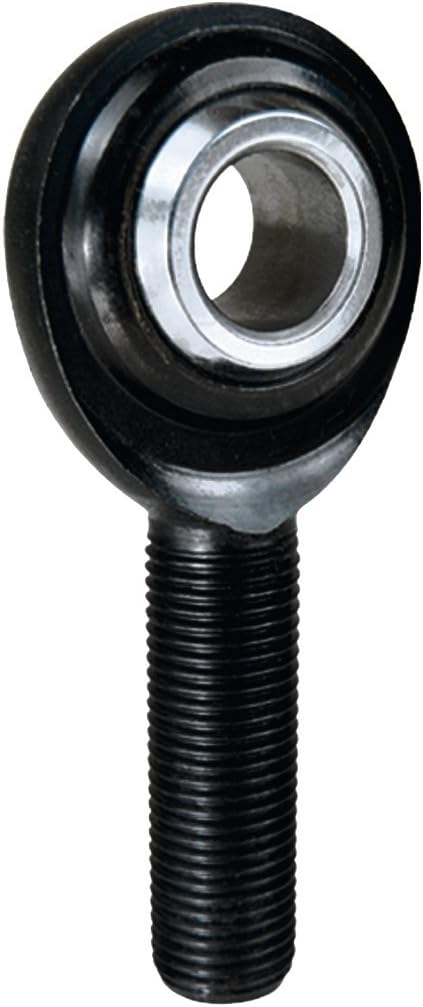

QA1 Precision Products PCML10-12 PCM Series Chromoly Steel Male Rod
End
QA1?s 2-piece economy style rod end, commonly referred to as a
mohawk design, has only two components: the ball and the body. The
body is swaged around the ball on each side to lock it in, and then
loosened.
This style is generally very economical and is commonly used in
light duty applications.
PCYM-T Series Chromoly
Steel
QA1 offers its 2-piece PCYM-T Chromoly Steel Series rod ends for
applications requiring high misalignment. These black oxide coated
rod ends offer superior load ratings over carbon steel two-piece
rod ends and have a PTFE liner. The
PCYM-T is an ideal choice for high
misalignment applications with the highest misalignment available
in the industry. Other sizes are available in the PCYM-T Series as special order.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
- High Misalignment
BODY
- Chromoly Steel
- Heat Treated
- Black Oxide Coated
- PTFE Lined
CM Series Carbon Steel
Male
For a traditional carbon steel two-piece rod end, QA1 offers its CM Carbon
Steel Series rod ends. These metal to metal rod ends are protective
coated for corrosion resistance and are available in both metric
and inch dimensions with left and right hand threads in male and
female styles. Grease fittings and stud configurations are
available by calling 800.721.7761.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
BODY
- Carbon Steel
- Protective Coated for Corrosion Resistance
Notes: Load ratings apply only to rod ends
without grease fittings. For ratings with grease fittings, please
contact QA1.
For sizes 2, 3, 3-4, 4, 4-5, 5 and 5-6, grease fittings are not
available.
CM-T Series Carbon Steel
Male
For a self-lubricating version of a traditional carbon steel
two-piece male rod end, QA1 offers its
CM-T Carbon Steel Series rod ends with a
PTFE liner. These rod ends are protective
coated for corrosion resistance and are available in inch
dimensions with left and right hand threads. Stud configurations
are available by calling 800.721.7761.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
BODY
- Carbon Steel
- Protective Coated for Corrosion Resistance
- PTFE Lined
GM-T Series Stainless Steel
Male
For unbeatable looks, the GM-T Stainless
Steel Series male rod ends are perfect for your ride. These
PTFE lined rod ends can be polished to
give you the gleaming look you prefer. QA1?s GM-T Stainless Steel Series rod ends are available in
metric and inch dimensions, and in both right and left hand
thread.
BALL
- 440C Stainless Steel
- Heat Treated
- Precision Ground
BODY
- 300 Series Stainless Steel
- PTFE Lined
PCM & PCM-T Series Chromoly Steel
For a variety of options in a two-piece design, QA1 offers its PCM and
PCM-T Chromoly Steel Series rod ends.
These black oxide coated rod ends offer superior load ratings over
carbon steel two-piece rod ends and are available as metal to metal
or PTFE lined.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
BODY
- Chromoly Steel
- Heat Treated
- Black Oxide Coated
- PTFE Lined (PCM-T)
CF Series Carbon Steel
Female
For a traditional carbon steel two-piece female rod end,
QA1 offers its CF Carbon Steel Series rod ends. These metal to metal
rod ends are protective coated for corrosion resistance and are
available in both metric and inch dimensions with left and right
hand threads. Grease fittings and stud configurations are
available.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
BODY
- Carbon Steel
- Protective Coated for Corrosion Resistance
Notes: Load ratings apply only to rod ends
without grease fittings. For ratings with grease fittings, please
contact QA1.
For sizes 2 and 3, grease fittings are not available.
CF-T Series Carbon Steel
Female
For a self-lubricating version of a traditional carbon steel
two-piece female rod end, QA1 offers its
CF-T Carbon Steel Series rod ends with a
PTFE liner. These rod ends are protective
coated for corrosion resistance and are available in inch
dimensions with left and right hand threads. Stud configurations
are available by calling 800.721.7761.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
BODY
- Carbon Steel
- Protective Coated for Corrosion Resistance
- PTFE Lined
GF-T Series Stainless Steel
Female
For unbeatable looks, the GF-T Stainless
Steel Series female rod ends are perfect for your ride. These
PTFE lined rod ends can be polished to
give you the gleaming look you prefer. QA1?s GF-T Stainless Steel Series rod ends are available in
metric and inch dimensions, and in both right and left hand
thread.
BALL
- 440C Stainless Steel
- Heat Treated
- Precision Ground
BODY
- 300 Series Stainless Steel
- PTFE Lined
