QA1 CML8 Carbon Steel Male Rod End 1/2-20 Thread 2-Piece

Manufacturer

Part Number

CML8

7 reviews

Sale Price

$6.87

In Stock (10+)

Usually delivered within 2 days

Check out with

No Hassle Returns

Live-in-stock inventory

Fitment guaranteed

Show details for QA1 CML8 Carbon Steel Male Rod End 1/2-20 Thread 2-Piece

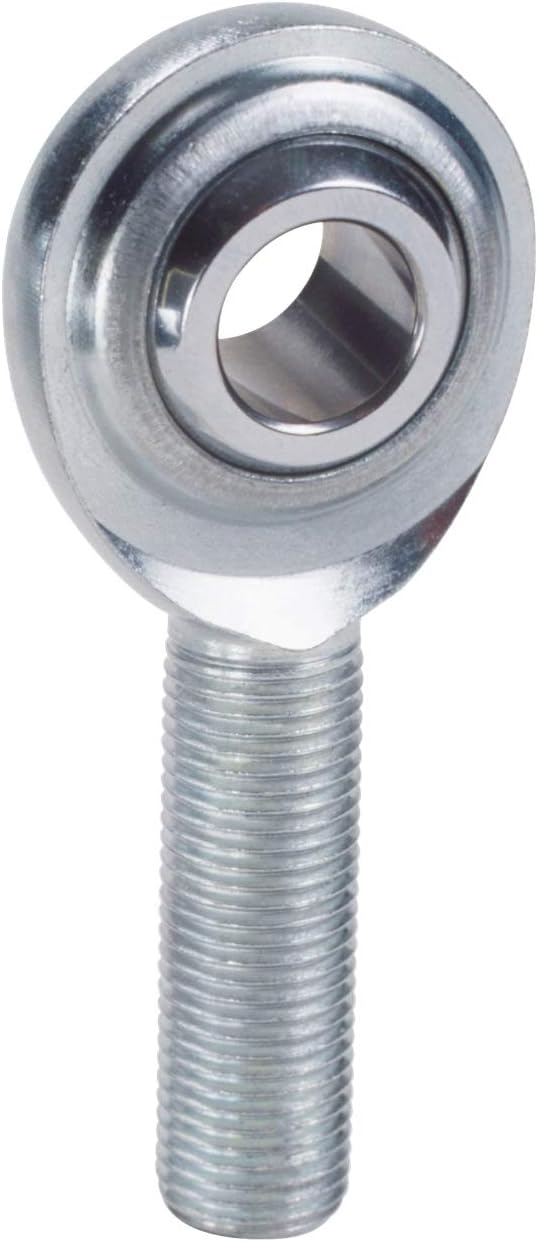

Picture of QA1 CML8 Carbon Steel Male Rod End 1/2-20 Thread 2-Piece

QA1 CML8 Carbon Steel Male Rod End 1/2-20 Thread 2-Piece — image 1

QA1 CML8 Carbon Steel Male Rod End 1/2-20 Thread 2-Piece — image 2

Product Details

The QA1 CML8 is a 2-piece carbon steel male rod end designed for light-duty applications requiring reliable articulation and cost-effective performance. This economical "mohawk" style rod end features a simple two-component design with the ball swaged securely into the body, providing smooth movement and misalignment capability.

Ball Specifications:

52100 bearing steel construction for durability
Heat treated for enhanced strength
Hard chrome plated finish for wear resistance
Precision ground surface for smooth operation

Body Specifications:

Carbon steel body construction
Protective coating for corrosion resistance
Metal-to-metal bearing design

Key Features:

Economical 2-piece design with minimal components
Male threaded shank for easy installation
Available with left or right-hand threads
Suitable for suspension linkages, steering components, and control arms

The CML8 provides a cost-effective solution for applications where a traditional carbon steel rod end is sufficient. The 2-piece construction reduces complexity while maintaining the quality and precision QA1 is known for in motorsports and performance applications.

Products specifications

A (+/-0.015)

2.437

Approx Bearing Weight

0.24

B (+0.0025/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.5

D Ref

1.312

Grease Fitting

Heat-Treated

Yes

Jam Nut Included

Misalign Angle

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.438 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.625 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

20 degrees

Rod End Static Load Capacity

10,046 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

1/2-20 LH in.

Thread Length

1.500 in.

Thread Type

Left Hand

Thread UNF-3A

1/2 -20

UTL Radical Static

10046

W (+/-0.005)

0.625

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
