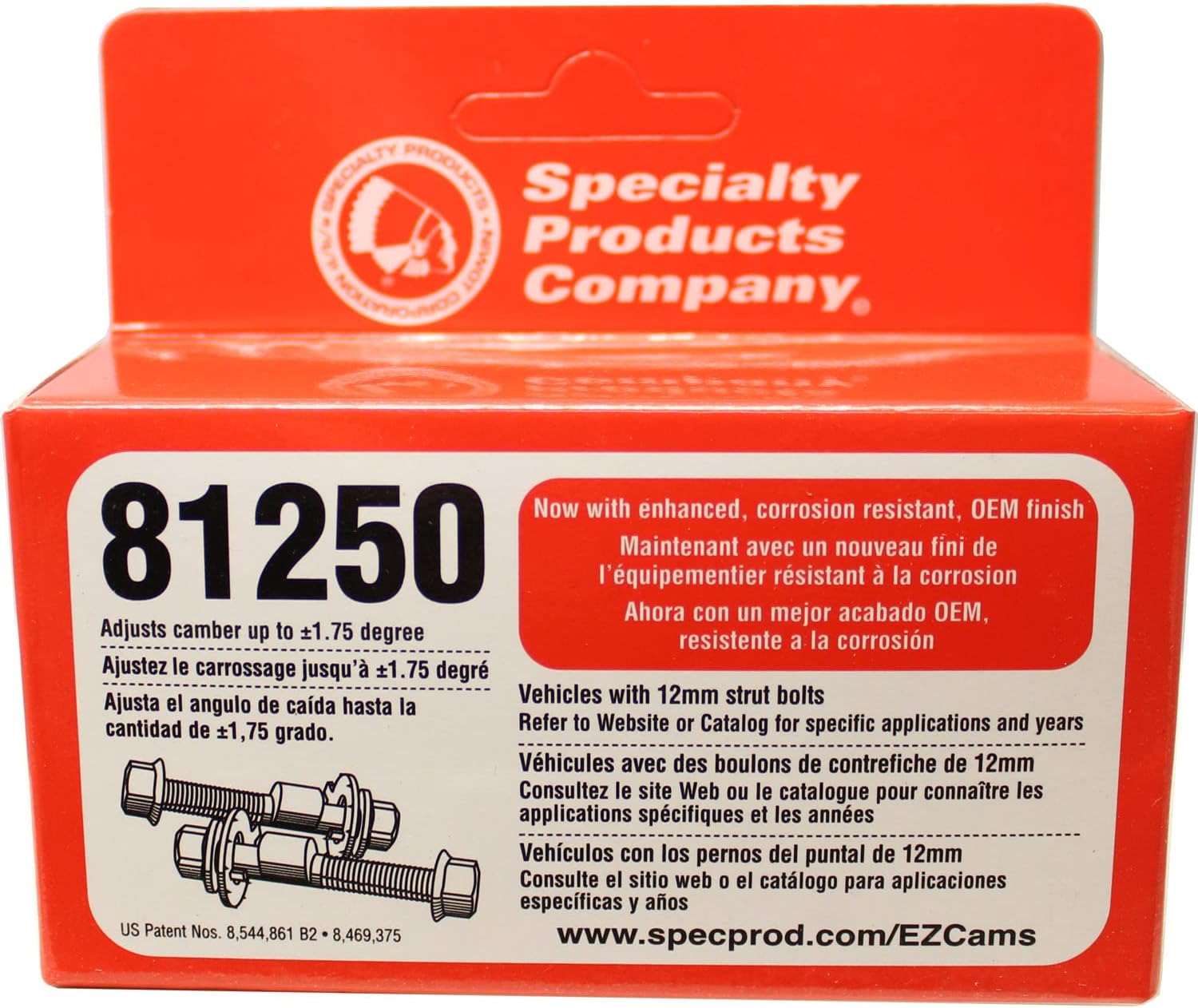

SPC Performance 81250 Ez Cam Xr (12mm - 2)

The SPC Performance EZ Cam XR is a universal adjustable camber bolt kit designed to provide up to ±1.75° of camber adjustment on vehicles with two-bolt strut assemblies. This innovative solution transforms a standard fixed strut mount into a fully adjustable alignment component without grinding or permanent modifications.

Key Features:

• Universal 12mm cam bolt design fits most two-bolt strut applications
• Provides up to ±1.75° of camber adjustment range
• Includes pair of cam bolts (one kit per axle required)
• Premium 12.9 grade bolt provides superior clamping force and highest safety factor
• Hex Chromate-free finish delivers 700+ hour salt spray resistance versus competitors' ~20 hours
• Environmentally friendly coating prevents hydrogen embrittlement
• Laser-etched markings on bolt head indicate lobe position for easy adjustment orientation
• Approximately 0.4 hour installation time per side

Installation:

Simply remove the upper OE strut bolt, install the EZ Cam bolt, loosen the lower bolt, and dial in your desired camber setting. The patented design makes camber adjustment a quick, cost-effective one-person job without requiring grinding or specialized tools. Once installed, the strut remains adjustable for the life of the vehicle.

Pro Tip:

SPC offers the EZ Sizer Magnet (P/N 20503) to quickly determine which EZ Cam size you need by measuring OE threads. The 81139 Magnetic Camber Gauge is an excellent companion tool that attaches to the brake rotor, allowing you to watch camber change in real-time as you adjust the cam bolt.
