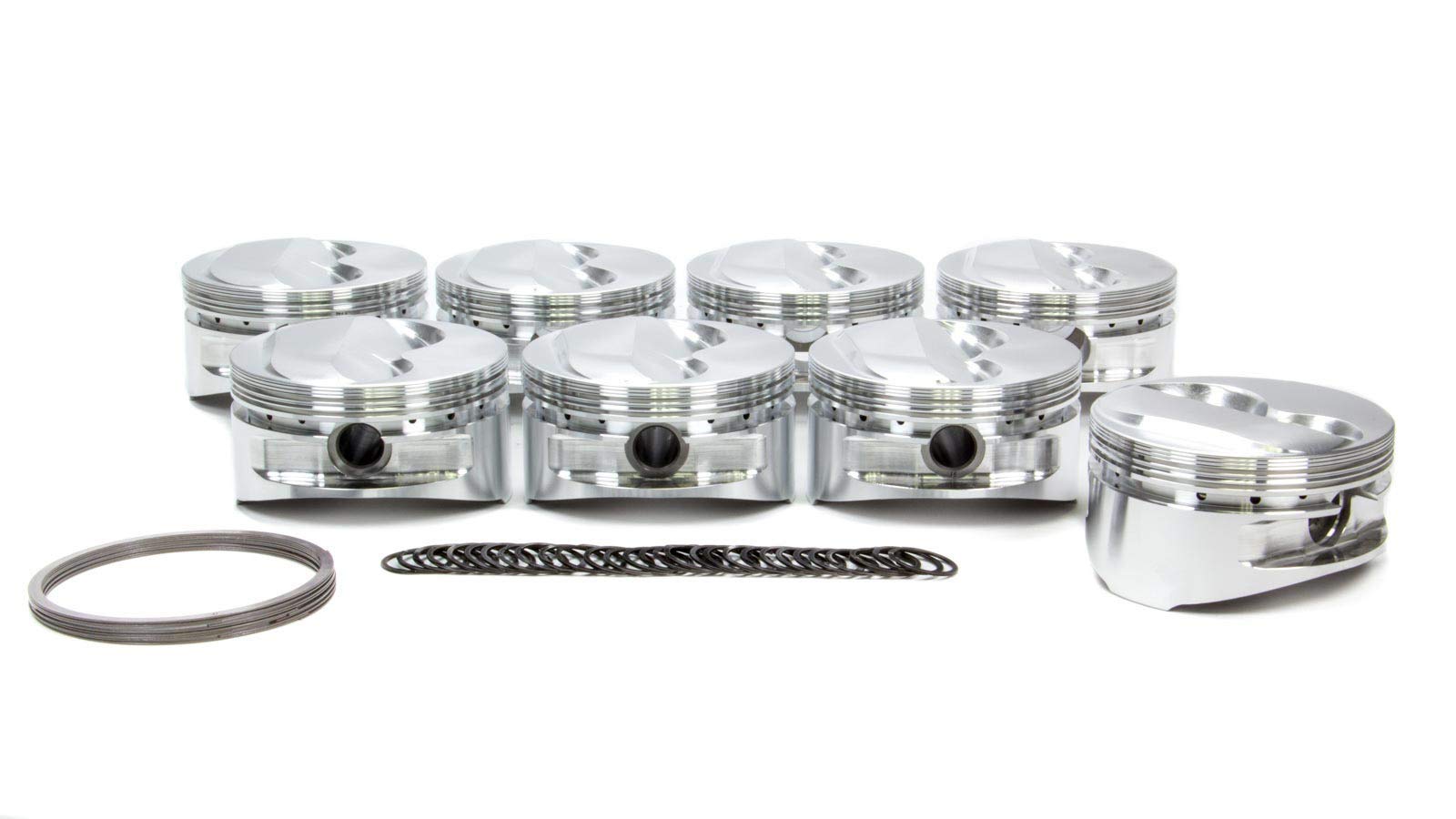

JE Pistons 182036 Forged Dome Piston Set Bore Alloy - 4.155 2618 8-Cylinder

(1970-1980 Chevrolet 400 Small Block)

Part of: JE Pistons Forged Dome Piston Set Bore

Other options in this family: JE Pistons 353906 JE Pistons 186235 JE Pistons 359152 JE Pistons 361278 JE Pistons 258239

Manufacturer

Picture for manufacturer JE Pistons

Part Number

182036
4 reviews
Sale Price

$1,076.99

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The JE Pistons 182036 forged piston set delivers race-proven performance for high-horsepower engine builds. Precision-machined from 2618 aluminum alloy, these pistons feature a 23-degree solid dome design that increases compression while maintaining optimal crown thickness for strength and heat dissipation. With a 4.155-inch bore, 1.062-inch compression distance, and 0.927-inch pin diameter, this set is engineered for demanding applications where durability and power output are critical.

Key Features:

  • Application-specific forgings for optimized, uniform crown thickness
  • Contact reduction groove minimizes frictional drag for increased efficiency
  • Accumulator groove increases top ring stability and sealing
  • CNC-machined side relief with lower support band adds skirt strength
  • Honed pin bores with double pressure-fed pin oilers for superior lubrication
  • Wire locks included for secure pin retention
  • Oil rail support included for enhanced ring support
  • 23-degree dome configuration for increased compression ratio

Each JE Pistons set includes 8 matched pistons to ensure consistent weight and dimensional tolerances across all cylinders. Recommended ring set: J10008-4155-5. Backed by over 60 years of racing piston expertise, JE Pistons are trusted by engine builders worldwide for Chevy, Ford, Mopar, and Buick performance applications.

Products specifications

Fits

1970-1980 Chevrolet 400 Small Block

Block Height

9

Bore

4.155

Bore (in)

4.155 in.

Bore (mm)

105.537mm

CID

420

Comp Height

1.06

Comp Ratio @ 58CC

14.3:1

Comp Ratio @ 64cc

13.2:1

Comp Ratio @ 76CC

11.4:1

Compression Distance (in)

1.062 in.

Dome Volume

3

Gram Weight

457

Notes

Oil rail support included. Solid dome design.

Pin Diameter (in)

0.927 in.

Piston Head Volume (cc)

-3.00cc

Piston Material

Forged aluminum

Piston Ring Thickness

1/16 in. x 1/16 in. x 3/16 in.

Piston Style

Dome, with two valve reliefs

Quantity

Sold individually.

Rod

6

Stroke

3.875

Wrist Pin Style

Press-fit or floating

Make

Chevrolet

Forging Type

Round

Category Hierarchy

Pistons>Piston Kits

Piston Head Type

Dome

Oil Ring Thickness

0.218

Piston Material

2618

Second Compression Ring Thickness

0.064

Out of Stock Message

Call for Availability

Piston Pin Wall Thickness

0.150

Compression Height

1.062

Piston Avg Wt

460

Piston Pin Outside Diameter

0.927

Ringset Included

No

Piston Pin Material

5115

Top Compression Ring Thickness

0.064

Bore Diameter

4.155

Product Market

Domestic

Engine

SMALL BLOCK CHEVROLET

Add-On

927-2750-15-51S

Add-On

J10008-4155-5

Industry

Automotive

Cylinder Head

CHEVROLET 23 DEG 20/30

Add-On

927-042-CS

Piston Volume

5.6

Piston Pin Length

2.750

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Piston Quantity

8
