Product Details

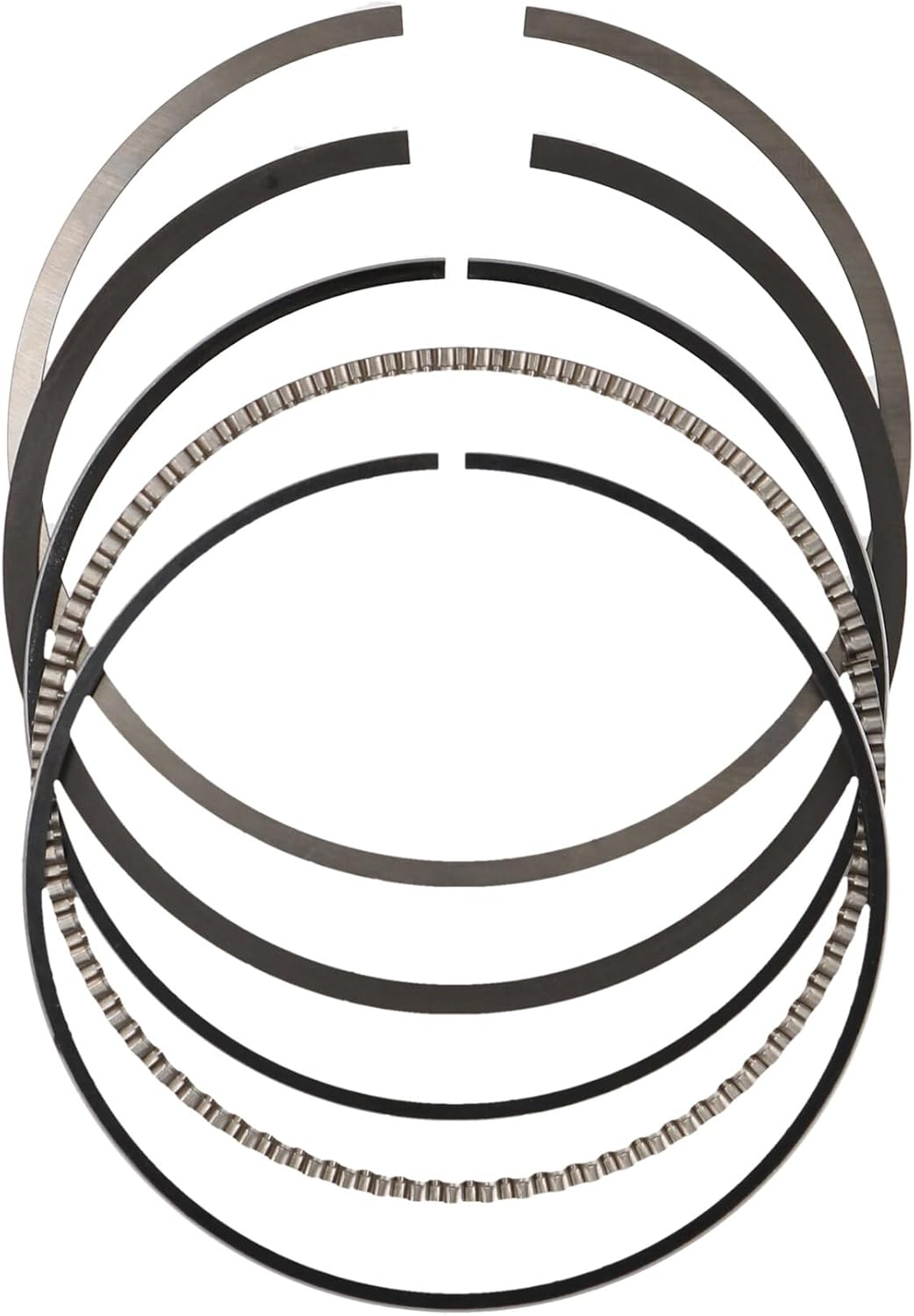

The JE Pistons JG1006-3405 is a complete piston ring set designed specifically for 6-cylinder applications requiring file-fit installation. These rings are engineered to pair with JE piston set 252059, providing a precision fit for 1993-1998 Toyota Supra MKIV 2JZ engines.

Key Features:

  • File-fit design allows custom gap adjustment for optimal ring seal and performance
  • Engineered specifically for JE piston part number 252059
  • High-quality ring materials designed for severe duty and high-performance applications
  • Complete set includes top compression ring, second compression ring, and oil control ring assembly for all 6 cylinders
  • Trusted by professional race teams in IDRC and NHRA competition

JE Pistons ring sets are manufactured to exacting tolerances to ensure proper cylinder seal, minimize blow-by, and maximize power output. The file-fit design gives engine builders the flexibility to precisely set ring end gaps according to their specific application requirements, whether street performance or all-out racing. Each ring set is sold complete for one 6-cylinder engine.

Products specifications

2nd Ring (Heigh/Width/Type)

1.2mm / 0.146 / DPE

Bore

86.50 mm(3.405 in)

Bore (in)

3.405 in.

Bore (mm)

86.487mm

File Fit

No

Gapless

No

Notes

Barrel face backcut neutral top ring, Napier backcut neutral second ring with flex vent-style oil ring.

Oil Ring (Heigh/Width/Type)

2.8mm / 0.128 / CNF

Oil Ring Included

Yes

Oil Ring Material

Nitride coated carbon steel

Oil Ring Tension

Low

Oil Ring Thickness

2.8mm

Quantity

Sold as a set.

Second Ring Facing Material

Phosphate coated

Second Ring Included

Yes

Second Ring Material

Ductile iron

Second Ring Thickness

1.2mm

Top Ring (Heigh/Width/Type)

1.0mm / 0.134 / CNS

Top Ring Facing Material

Gas nitrided

Top Ring Included

Yes

Top Ring Material

Steel

Top Ring Thickness

1.0mm

Category Hierarchy

Accessories>Rings>Ring Sets

Top Ring Facing Material

Nitride

Third Ring Facing Material

Carbon Steel

Second Compression Ring Thickness

0.0472

Industry

Automotive

Top Compression Ring Thickness

0.0394

Oil Ring Thickness

0.110

File Fit

Yes

Third Ring Material

Carbon Steel

Out of Stock Message

Call for Availability

Top Ring Material

Carbon Steel

Second Ring Facing Material

Phosphate
