Part number: CMR10
Product Details
QA1 Precision Products CMR10 in our Rod Ends Department
Products specifications
A (+/-0.015) 2.625
Approx Bearing Weight 0.36
B (+0.0025/-0.0005) 0.625
Ball Dia Ref 1.125
C (+0.062/-0.031) 1.625
D Ref 1.5
Grease Fitting No
Heat-Treated Yes
Jam Nut Included No
Misalign Angle 26
Quantity Sold individually.
Rod End Attachment Female threads
Rod End Ball Width 0.750 in.
Rod End Centerline Length 2.625 in.
Rod End Construction 2-piece
Rod End Finish Zinc plated
Rod End Head Bore Size 0.625 in.
Rod End Head Diameter 1.500 in.
Rod End Head Width 0.750 in.
Rod End Material Carbon steel
Rod End Misalign Angle (degrees) 26 degrees
Rod End Static Load Capacity 11,385 lbs.
Rod End Style Metal to metal
Rod End Thread Size 5/8-18 RH in.
Thread Length 1.625 in.
Thread Type Right Hand
Thread UNF-3A 5/8 -18
UTL Radical Static 11385
W (+/-0.005) 0.75

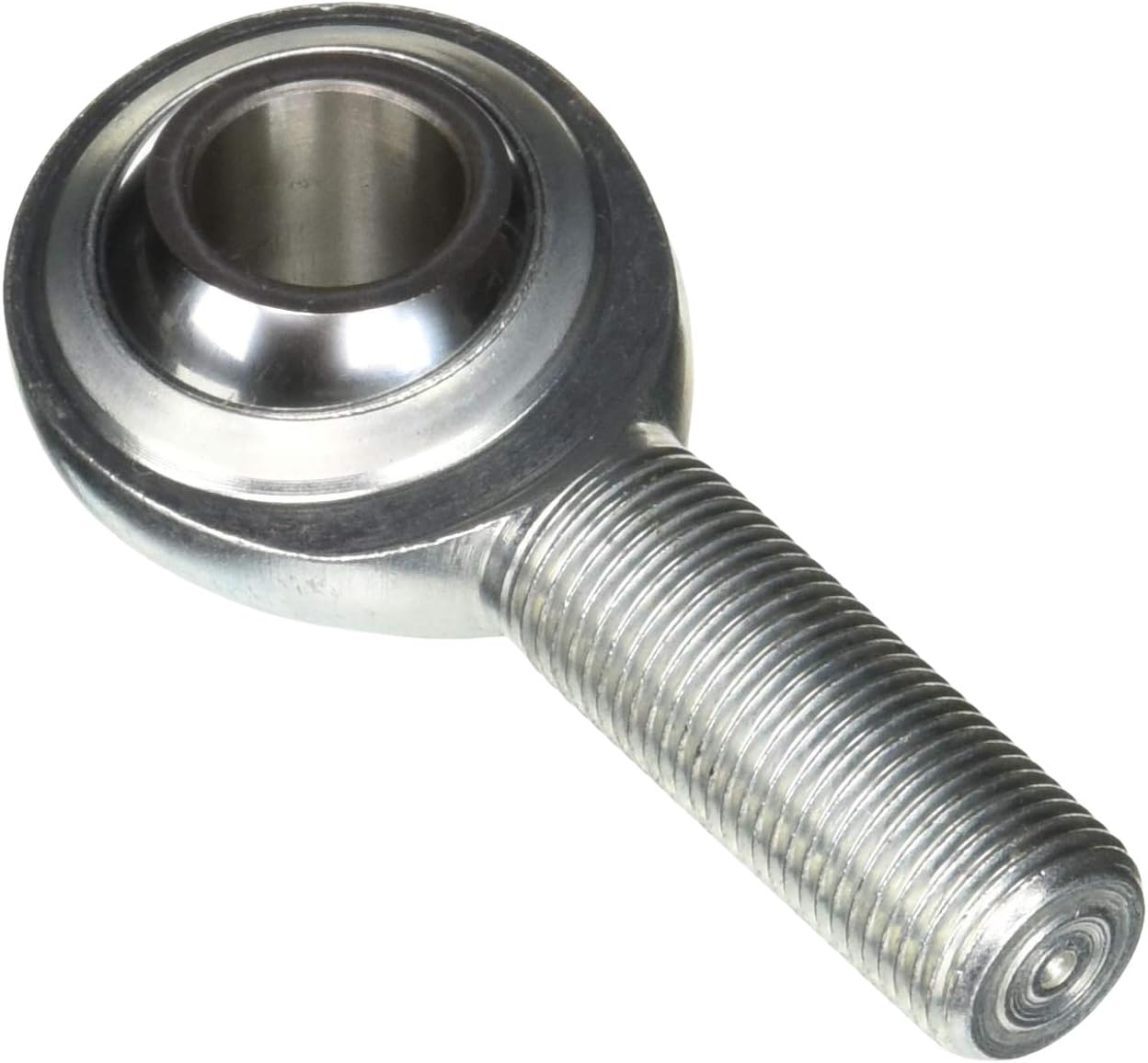

QA1 Precision Products CMR10 CF Carbon Steel Series Male Rod End

QA1?s 2-piece economy style rod end, commonly referred to as a mohawk design, has only two components: the ball and the body. The body is swaged around the ball on each side to lock it in, and then loosened.

This style is generally very economical and is commonly used in light duty applications.

PCYM-T Series Chromoly Steel
QA1 offers its 2-piece PCYM-T Chromoly Steel Series rod ends for applications requiring high misalignment. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and have a PTFE liner. The PCYM-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Other sizes are available in the PCYM-T Series as special order.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground
  • High Misalignment

BODY

  • Chromoly Steel
  • Heat Treated
  • Black Oxide Coated
  • PTFE Lined

CM Series Carbon Steel Male
For a traditional carbon steel two-piece rod end, QA1 offers its CM Carbon Steel Series rod ends. These metal to metal rod ends are protective coated for corrosion resistance and are available in both metric and inch dimensions with left and right hand threads in male and female styles. Grease fittings and stud configurations are available by calling 800.721.7761.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

BODY

  • Carbon Steel
  • Protective Coated for Corrosion Resistance

Notes: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1.

For sizes 2, 3, 3-4, 4, 4-5, 5 and 5-6, grease fittings are not available.

CM-T Series Carbon Steel Male
For a self-lubricating version of a traditional carbon steel two-piece male rod end, QA1 offers its CM-T Carbon Steel Series rod ends with a PTFE liner. These rod ends are protective coated for corrosion resistance and are available in inch dimensions with left and right hand threads. Stud configurations are available by calling 800.721.7761.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

BODY

  • Carbon Steel
  • Protective Coated for Corrosion Resistance
  • PTFE Lined

GM-T Series Stainless Steel Male
For unbeatable looks, the GM-T Stainless Steel Series male rod ends are perfect for your ride. These PTFE lined rod ends can be polished to give you the gleaming look you prefer. QA1?s GM-T Stainless Steel Series rod ends are available in metric and inch dimensions, and in both right and left hand thread.

BALL

  • 440C Stainless Steel
  • Heat Treated
  • Precision Ground

BODY

  • 300 Series Stainless Steel
  • PTFE Lined

PCM & PCM-T Series Chromoly Steel
For a variety of options in a two-piece design, QA1 offers its PCM and PCM-T Chromoly Steel Series rod ends. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and are available as metal to metal or PTFE lined.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

BODY

  • Chromoly Steel
  • Heat Treated
  • Black Oxide Coated
  • PTFE Lined (PCM-T)

CF Series Carbon Steel Female
For a traditional carbon steel two-piece female rod end, QA1 offers its CF Carbon Steel Series rod ends. These metal to metal rod ends are protective coated for corrosion resistance and are available in both metric and inch dimensions with left and right hand threads. Grease fittings and stud configurations are available.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

BODY

  • Carbon Steel
  • Protective Coated for Corrosion Resistance

Notes: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1.

For sizes 2 and 3, grease fittings are not available.

CF-T Series Carbon Steel Female
For a self-lubricating version of a traditional carbon steel two-piece female rod end, QA1 offers its CF-T Carbon Steel Series rod ends with a PTFE liner. These rod ends are protective coated for corrosion resistance and are available in inch dimensions with left and right hand threads. Stud configurations are available by calling 800.721.7761.

BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

BODY

  • Carbon Steel
  • Protective Coated for Corrosion Resistance
  • PTFE Lined

GF-T Series Stainless Steel Female
For unbeatable looks, the GF-T Stainless Steel Series female rod ends are perfect for your ride. These PTFE lined rod ends can be polished to give you the gleaming look you prefer. QA1?s GF-T Stainless Steel Series rod ends are available in metric and inch dimensions, and in both right and left hand thread.

BALL

  • 440C Stainless Steel
  • Heat Treated
  • Precision Ground

BODY

  • 300 Series Stainless Steel
  • PTFE Lined
