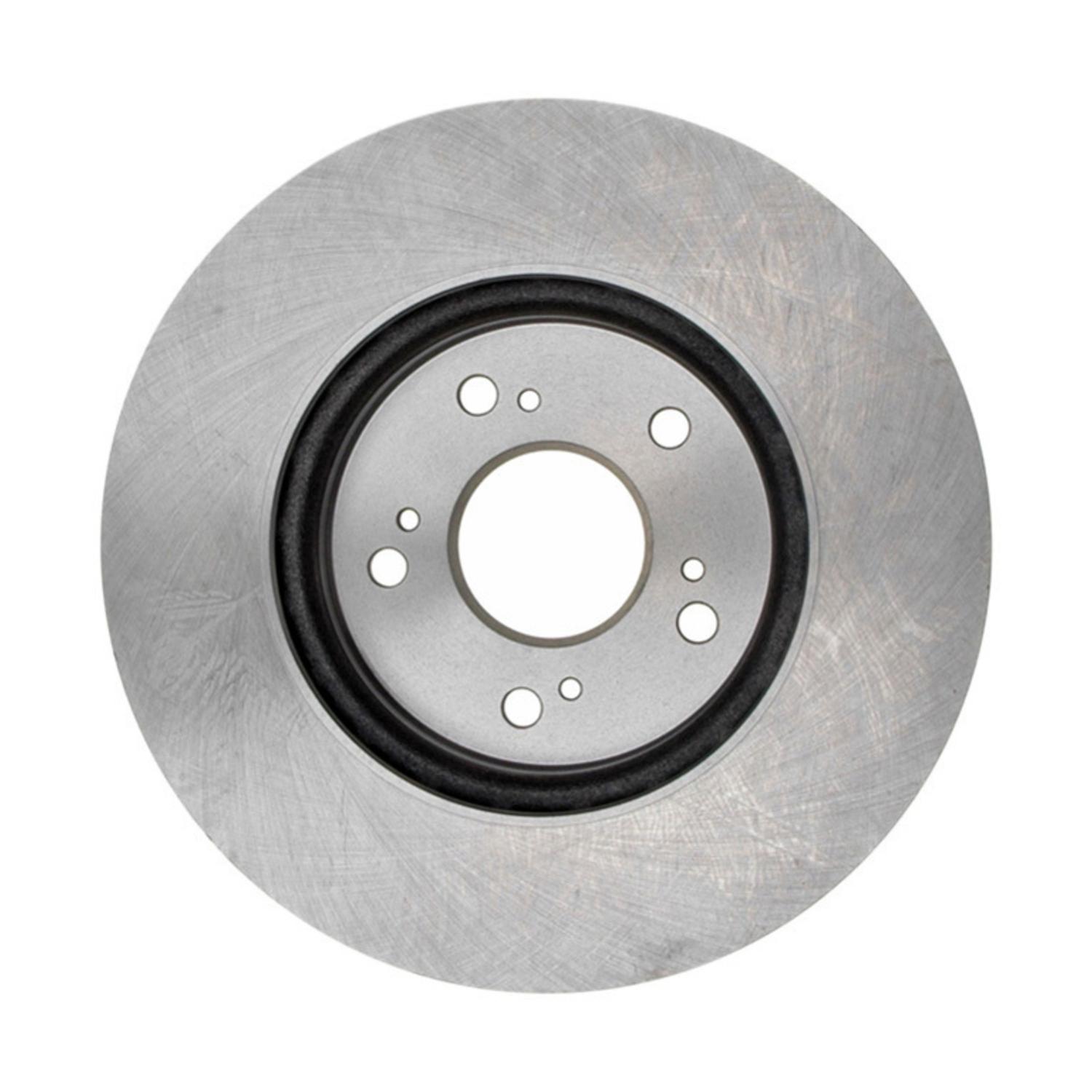

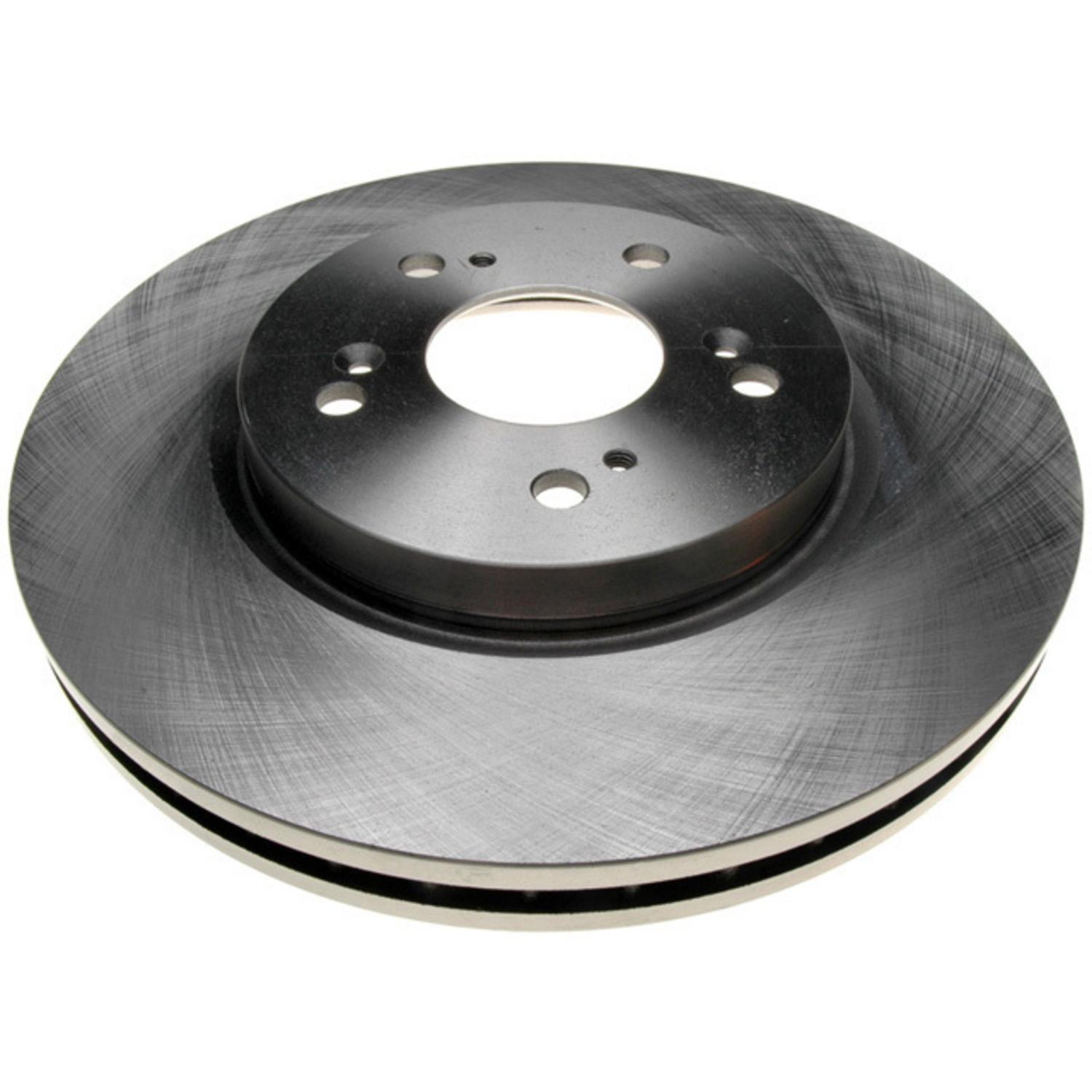

Raybestos 980515R R-Line Front Disc Brake Rotor

The Raybestos 980515R R-Line disc brake rotor is engineered for everyday driving conditions, delivering dependable braking performance and exceptional value. Part of Raybestos' R-Line series, this front brake rotor is precision-machined to meet or exceed OE specifications for reliable stopping power.

Key Features:

• Vented rotor design with 11.654-inch outside diameter for improved heat dissipation
• Mill balanced and 100% validated to minimize thickness variation and vibration
• Non-directional ground finish ready to install right out of the box
• Lateral runout of 0.004" with thickness variation less than 0.0005" for reduced pedal pulsation
• Developed from OE samples using G3000-qualified material
• 5-bolt mounting pattern with 114.3mm bolt circle diameter
• Center hole diameter of 2.524 inches for precise hub fitment

Technical Specifications:

• Overall Diameter: 11.654 inches (296mm)
• Overall Height: 1.858 inches (47.2mm)
• Discard Thickness: 1.024 inches
• Mounting Bolt Holes: 5
• Bolt Circle Diameter: 4.5 inches (114.3mm)

Raybestos R-Line rotors meet SAE standards for tensile strength and provide industry-leading application coverage. The precision manufacturing process ensures consistent quality and minimizes brake noise for smoother, quieter stopping performance. OEM cross-reference numbers include Honda 45251SWAA00, 45251STKA00, and 45251STKA20.
