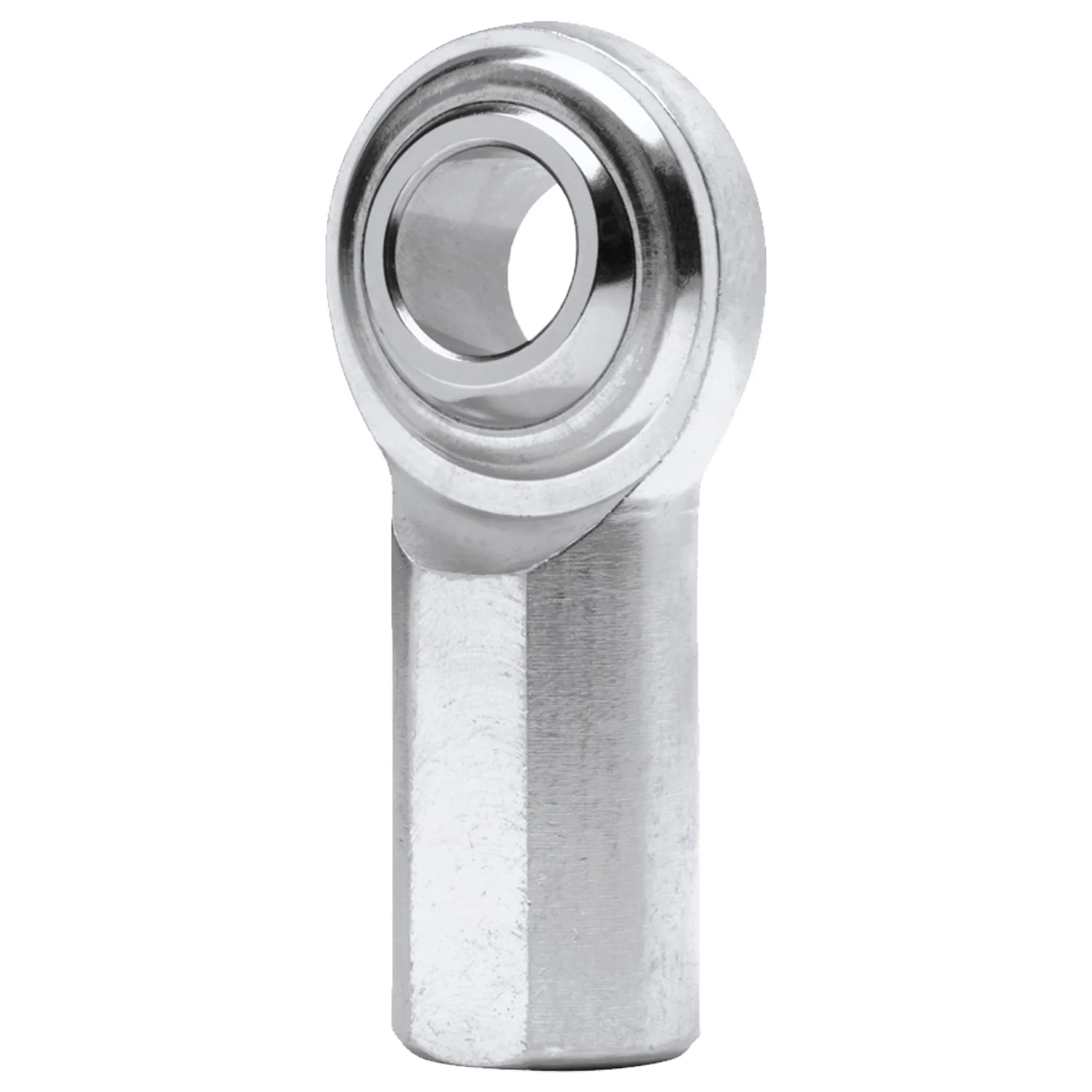

QA1 GFR8T G Series Stainless Steel Rod End 1/2" Bore 1/2"-20 Female PTFE Lined

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

GFR8T
14 reviews
Sale Price

$23.19

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 GFR8T is a premium two-piece stainless steel female rod end from the G Series (GF-T) lineup, engineered for superior performance in demanding applications. Featuring a 300 series stainless steel body and self-lubricating PTFE liner, this rod end excels in corrosive environments including marine, off-road, and outdoor applications where protection against the elements is critical.

Key Specifications:

  • 1/2 inch bore diameter with +0.0015/-0.0005 inch tolerance
  • 1/2"-20 right-hand female thread with 1 inch thread length
  • Overall length: 2-25/32 inches (2.781")
  • Head outside diameter: 1-1/4 inches
  • Maximum ball swivel: 20 degrees
  • Static radial load capacity: 7,352 lbf

Construction Features:

  • Ball: 440C stainless steel, heat treated, precision ground, hard chrome plated
  • Body: 300 series stainless steel with PTFE lining
  • PTFE-lined race provides self-lubricating surface that reduces wear and requires no lubrication
  • Follows SAE Specification J1120 construction standards

The traditional two-piece design provides reliable performance in light to medium duty applications, while the stainless steel construction offers excellent corrosion resistance and can be polished for show-quality appearance. Available in both right and left-hand threads, with studded configurations available upon request.

Products specifications

A (+/-0.015)

2.125

Approx Bearing Weight

0.29

B (+0.0015/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.062

D (+/-0.010)

1.312

E (+/-0.010)

0.875

F (+/-0.010)

0.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

20

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.125 in.

Rod End Construction

2-piece

Rod End Finish

Natural

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.625 in.

Rod End Material

Stainless steel

Rod End Misalign Angle (degrees)

20 degrees

Rod End Static Load Capacity

7,352 lbs.

Rod End Static Load Capacity (lbs)

4,650 lbs.

Rod End Style

Teflon® lined

Rod End Thread Size

1/2-20 RH in.

Thread Length

1.062 in.

Thread Type

Right Hand

Thread UNF-2B

1/2 -20

UTL Radical Static

7352

W (+/-0.005)

0.625

Prop 65
