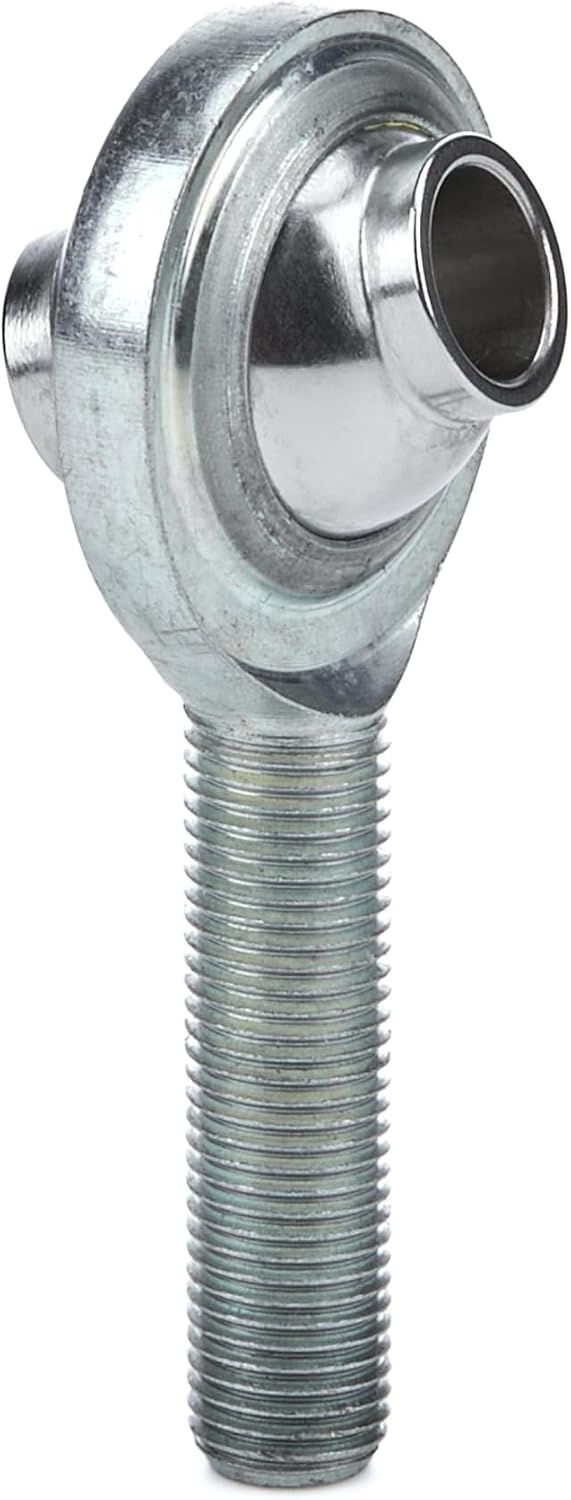

QA1 PCYML10-12T High Misalignment Chromoly Rod End PTFE Lined 2-Piece Male

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

PCYML10-12T
5 reviews
Sale Price

$22.04

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 PCYML10-12T is a high-performance 2-piece chromoly steel male rod end from the PCYM-T Series, engineered for applications requiring exceptional misalignment capability. This economical mohawk-style design features only two components—a precision ball and body—with the body swaged around the ball to create a secure yet articulating connection.

Key Features:

  • PTFE liner for self-lubricating operation and extended service life
  • Industry-leading high misalignment capability for extreme articulation demands
  • Chromoly steel construction with superior load ratings versus carbon steel alternatives
  • Black oxide coated body for enhanced corrosion resistance
  • Precision ground, hard chrome plated 52100 bearing steel ball
  • Heat treated ball and body for maximum strength and durability

Ball Specifications:

  • Material: 52100 bearing steel, heat treated
  • Finish: Hard chrome plated, precision ground
  • Design: High misalignment geometry

Body Specifications:

  • Material: Chromoly steel, heat treated
  • Finish: Black oxide coating
  • Bearing surface: PTFE lined for maintenance-free operation
  • Style: Male thread configuration

This rod end is ideal for racing suspension systems, steering linkages, and other high-performance applications where maximum articulation angle is critical. The PTFE liner eliminates the need for routine greasing while maintaining smooth operation under load.

Products specifications

A (+/-0.015)

3.375

Approx Bearing Weight

0.68

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.312

C (+0.062/-0.031)

2

D Ref

2

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

64

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

1.375 in.

Rod End Centerline Length

3.375 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

2.000 in.

Rod End Head Width

1.375 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

64 degrees

Rod End Static Load Capacity

30,290 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

3/4-16 LH in.

Thread Length

2.000 in.

Thread Type

Left Hand

Thread UNF-3A

3/4 -16

UTL Radical Static

27862

W (+/-0.005)

1.375
