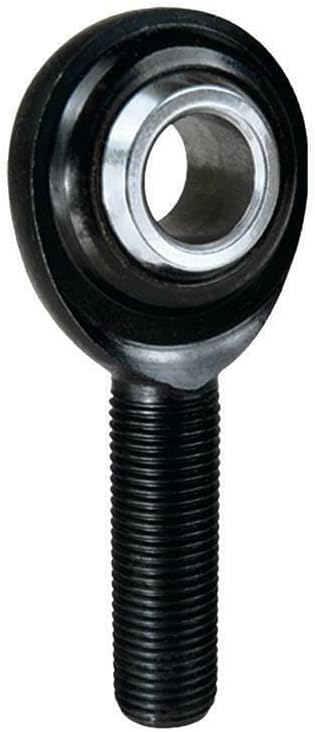

QA1 PCMR12 Chromoly Steel Male Rod End 3/4" Bore

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

PCMR12
13 reviews
Sale Price

$14.42

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 PCMR12 is a high-performance 2-piece chromoly steel male rod end from the PCM Series, designed for applications demanding superior strength and durability. This rod end features a traditional "mohawk" design with just two components—a precision-ground ball and heat-treated chromoly body—making it both economical and reliable for motorsports, industrial machinery, and custom suspension builds.

Key Features:

  • Ball: 52100 bearing steel, heat treated, hard chrome plated, and precision ground for smooth operation and long service life
  • Body: Heat-treated chromoly steel with black oxide coating for corrosion resistance and superior load capacity
  • Construction: 2-piece swaged design where the body is crimped around the ball and then loosened for optimal articulation
  • Threading: 3/4" bore with male thread configuration
  • Performance: Higher load ratings compared to standard carbon steel rod ends

The PCMR12 offers exceptional value for builders seeking chromoly strength without the cost of 3-piece designs. The hard chrome plated ball ensures minimal wear and consistent performance, while the black oxide body coating provides reliable corrosion protection. This rod end is ideal for suspension links, steering components, throttle linkages, and other mechanical connections requiring rotational movement and angular misalignment capability.

Note: This is a metal-to-metal design. For self-lubricating applications, consider the PCMR12-T with PTFE liner. Load ratings apply to rod ends without grease fittings.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.57

B (+0.0015/-0.0005)

0.75

Ball Dia Ref

1.312

C (+0.062/-0.031)

1.75

D Ref

1.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

24

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.750 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.875 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

24 degrees

Rod End Static Load Capacity

25,000 lbs.

Rod End Static Load Capacity (lbs)

25,000 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

3/4-16 RH in.

Thread Length

1.750 in.

Thread Type

Right Hand

Thread UNF-3A

3/4 -16

UTL Radical Static

25000

W (+/-0.005)

0.875
