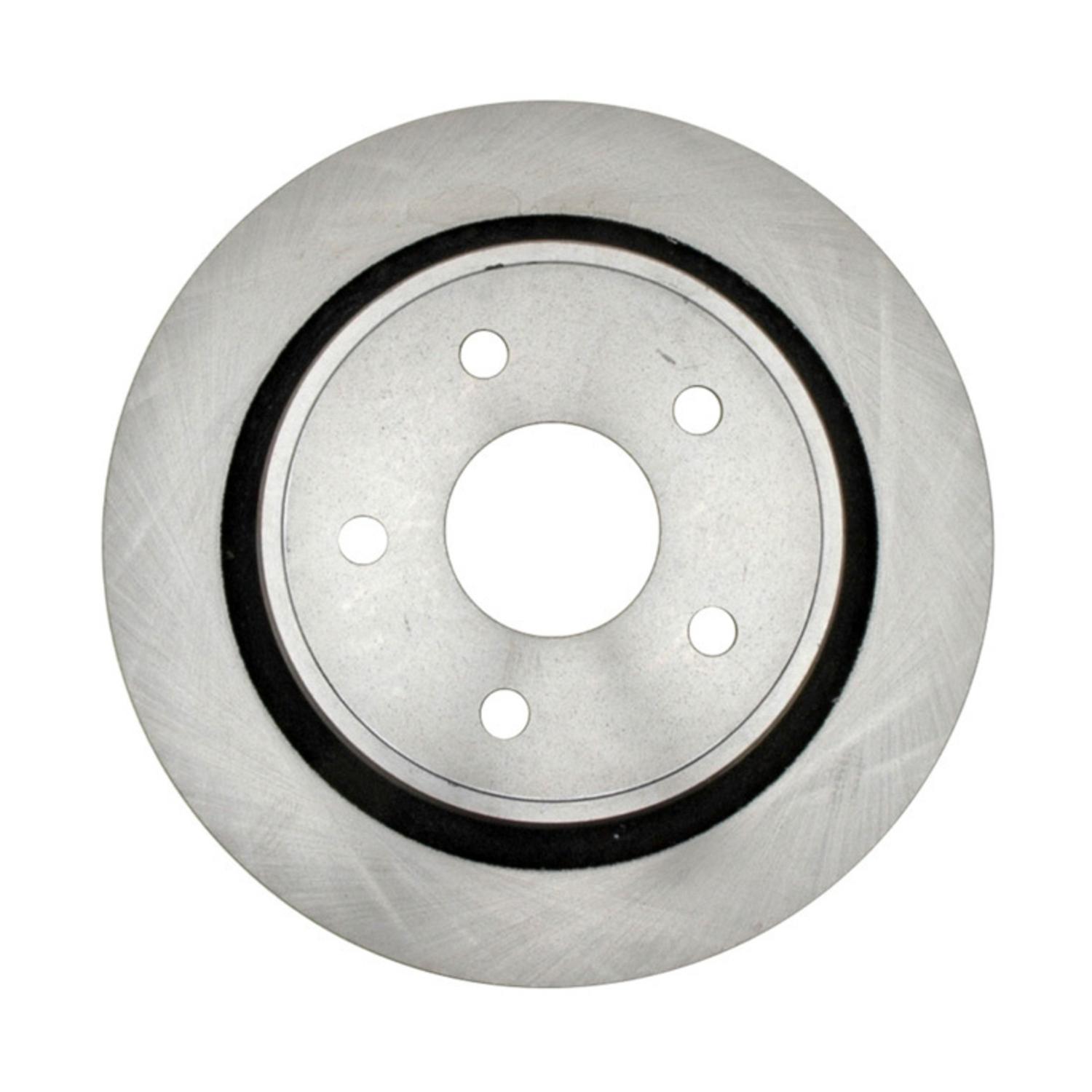

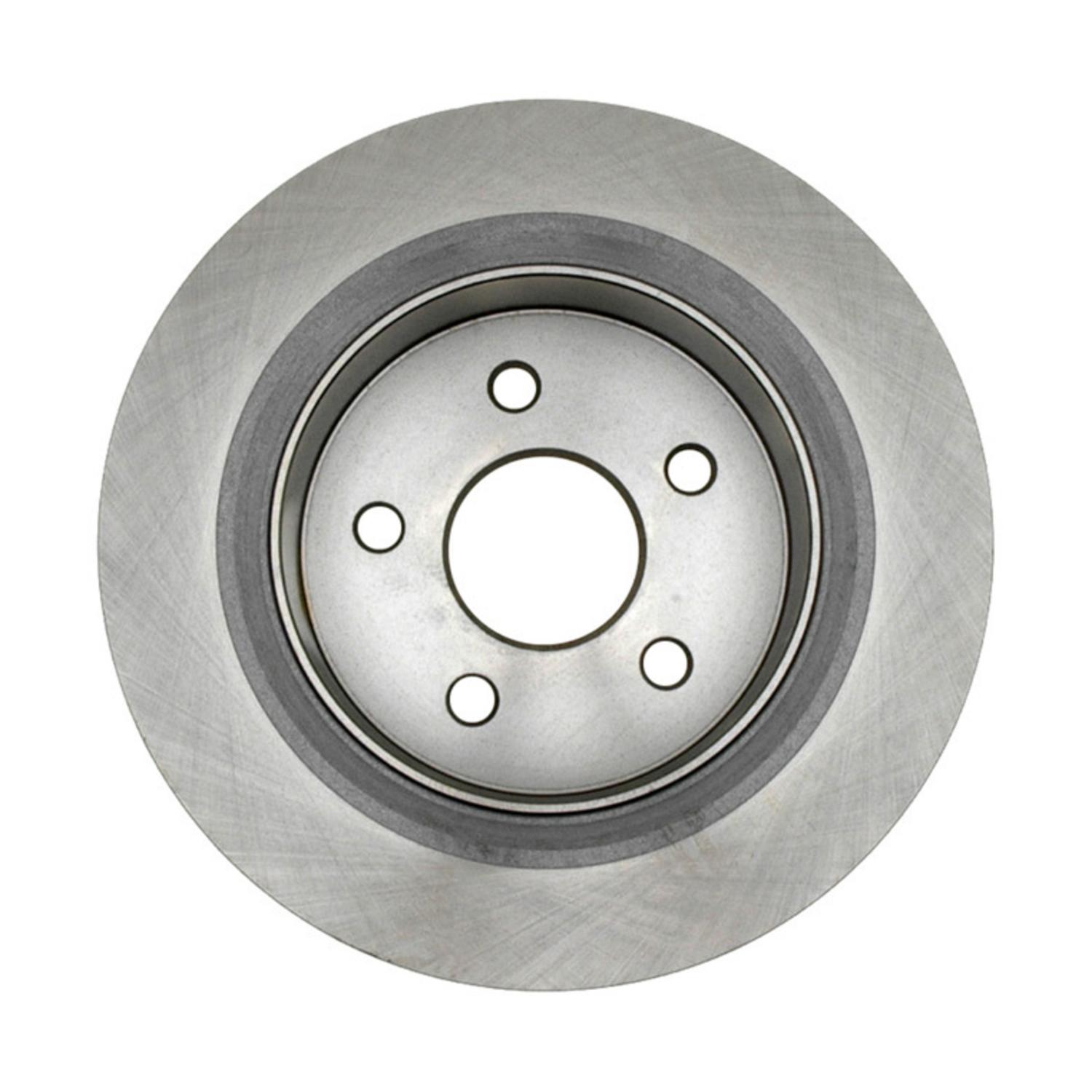

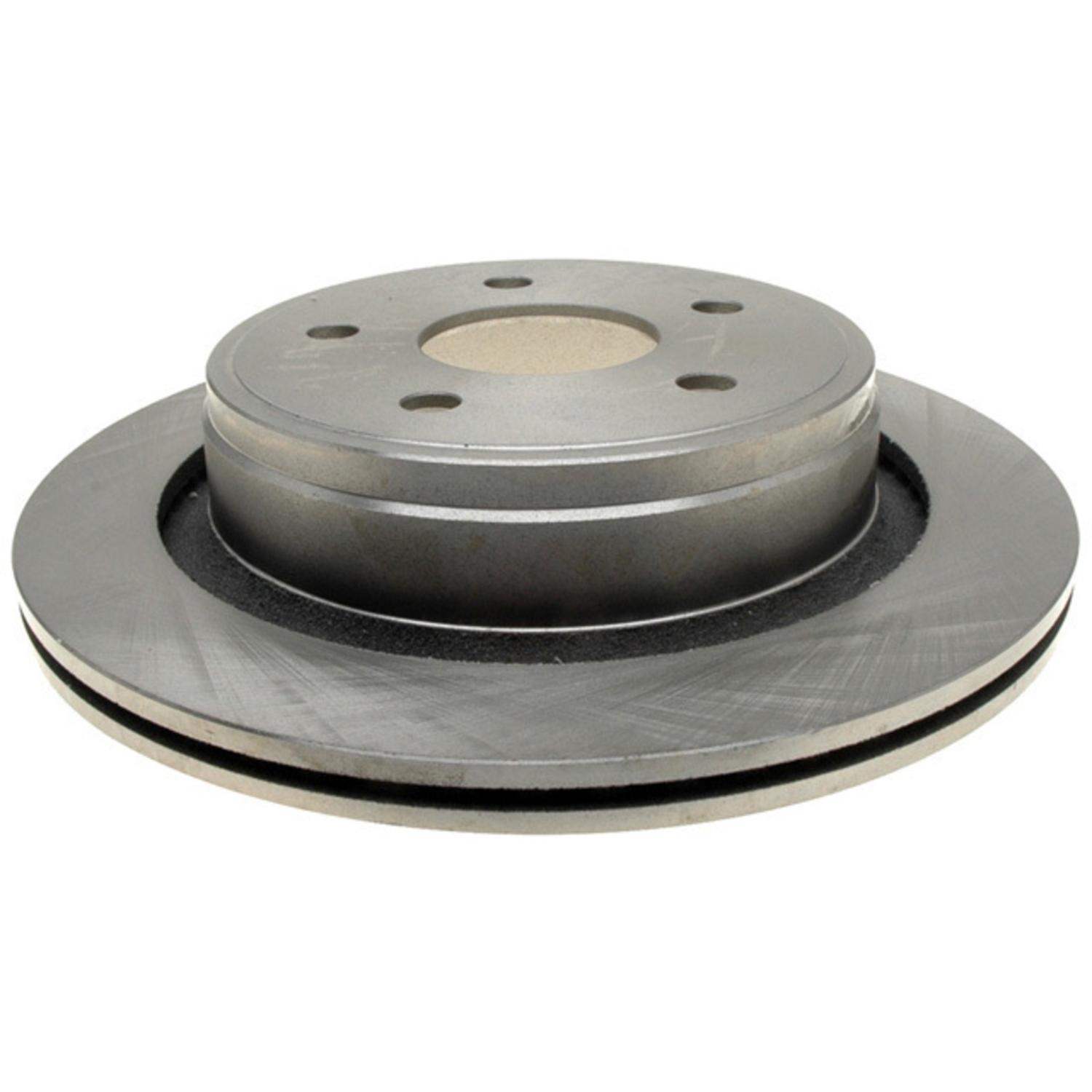

Raybestos 780082R R-Line Rear Disc Brake Rotor

The Raybestos 780082R R-Line disc brake rotor is engineered for everyday driving conditions, providing dependable stopping power and performance for rear brake applications. This vented cast iron rotor features a drum-in-hat design and is precision-manufactured to meet or exceed OE specifications.

Key Features:

• Vented cast iron construction for superior heat dissipation
• Non-directional ground finish, ready to install right out of the box
• Mill balanced edges with 100% validation to minimize vibration and thickness variation
• OE-matched vane configuration, weight, and design for reliable fit and function
• Meets SAE standards for tensile strength
• 13.86 inch outer diameter with 5 x 5.5 inch bolt pattern
• 0.865 inch nominal thickness (discard thickness: 0.803 inch)

Part of the Raybestos R-Line series, this rotor delivers industry-leading application-specific coverage with tight lateral runouts for reduced pedal pulsation, less brake noise, and extended pad life. Each rotor is precision-balanced to ensure smooth, vibration-free braking performance.

OEM Cross-Reference Numbers: 52009968AA, 52009968AB, 52009968AC, 52009968AD, VCDR0898AB, VRDR0563AC
