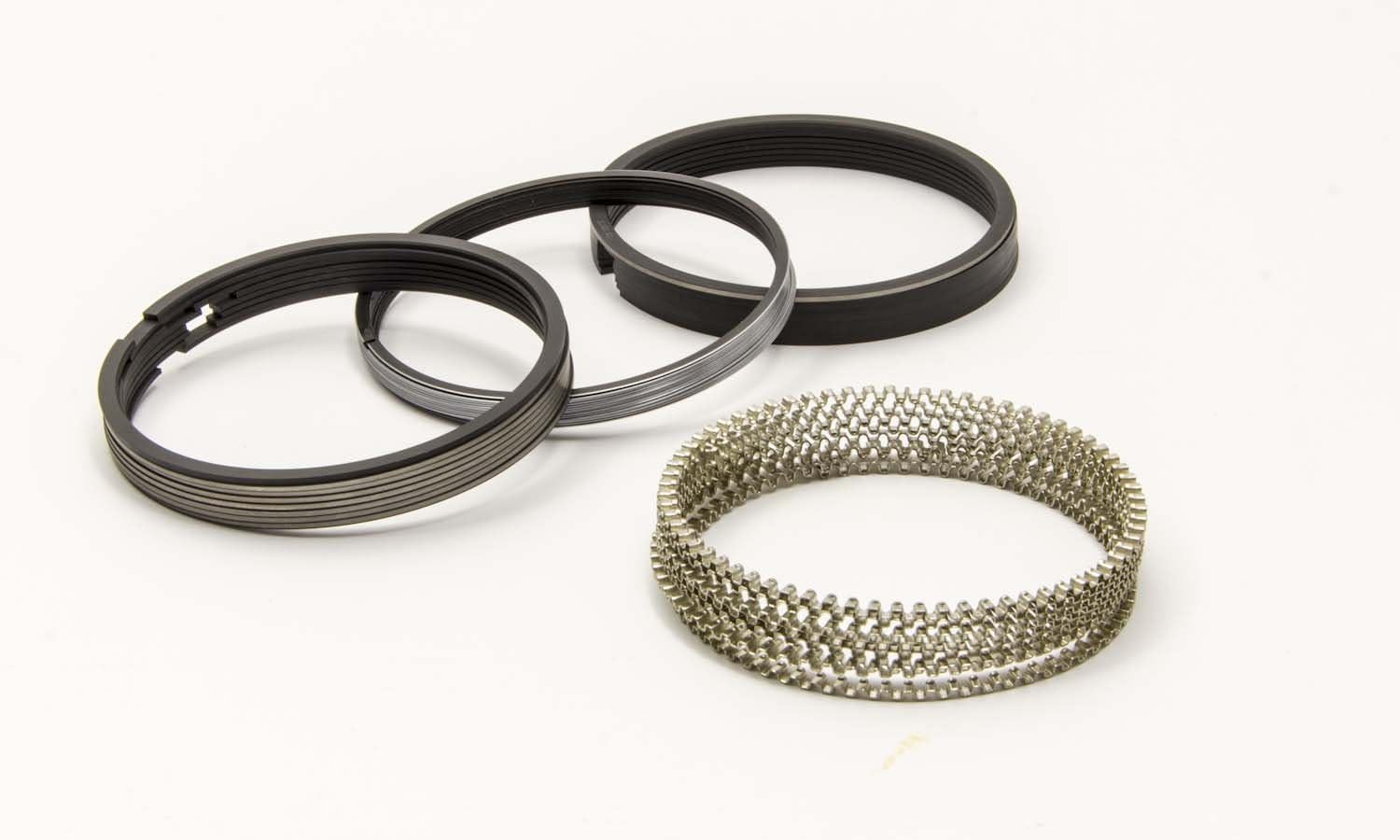

Manley 46620-8 Piston Ring Set .025 Oversize 3.572" Bore

(1997-2008 Ford F-150; 1996-2008 Ford Mustang; 1999-2008 Ford F-250 Super Duty; 1999-2008 Ford F-350 Super Duty; 1997-1999 Ford F-250)

Part of: Manley Piston Ring Set Bore

Other options in this family: Manley 46861DT-1 Manley 46861DT-4 Manley 46880-1 Manley 46875-1 Manley 46995DT-4

Manufacturer

Picture for manufacturer Manley

Part Number

46620-8
12 reviews
Sale Price

$228.24

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 46620-8 piston ring set is designed for .025" oversize applications with a 3.572" actual bore diameter. This premium three-piece ring set delivers minimal blowby and increased horsepower while maintaining cooler, cleaner oil for extended engine life.

Specifications:

  • Oversize: .025"
  • Actual Bore Diameter: 3.572"
  • Top Ring Width: 1.5mm
  • Second Ring Width: 1.5mm
  • Oil Ring Width: 3mm
  • Oil Ring Tension: Standard (9-13 lbs.)

Construction:

  • Top Ring: Ductile iron with plasma moly coating for superior wear resistance
  • Second Ring: Conventional reverse twist cast iron design
  • Oil Ring: 3-piece standard tension design

Manley piston rings are engineered to provide optimal sealing performance, reduce friction, and improve combustion efficiency. The plasma moly top ring coating ensures exceptional durability in high-performance applications, while the reverse twist second ring promotes effective oil control and ring seal.

Products specifications

Fits

1997-2008 Ford F-150; 1996-2008 Ford Mustang; 1999-2008 Ford F-250 Super Duty; 1999-2008 Ford F-350 Super Duty; 1997-1999 Ford F-250

Bore (in)

3.572 in.

Bore (mm)

90.729mm

File Fit

Yes

Gapless

No

Oil Ring Included

Yes

Oil Ring Material

Stainless steel

Oil Ring Tension

Standard

Oil Ring Tension Rating

9-13 lb.

Oil Ring Thickness

3.0mm

Quantity

Sold as a set.

Second Ring Facing Material

Cast iron

Second Ring Included

Yes

Second Ring Material

Cast iron

Second Ring Thickness

1.5mm

Top Ring Facing Material

Plasma-moly

Top Ring Included

Yes

Top Ring Material

Ductile iron

Top Ring Thickness

1.5mm
