QA1 Precision Products GS401-10550A Coilover Spring and Shock Assembly

Manufacturer

QA1 Precision Products

Picture for manufacturer QA1 Precision Products GMP1 Shocks & Struts - Individual

Part Number

GS401-10550A
17 reviews
04/19/2034 9:24 AM
Sale Price

$699.95

Out of Stock

Notify me when available
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

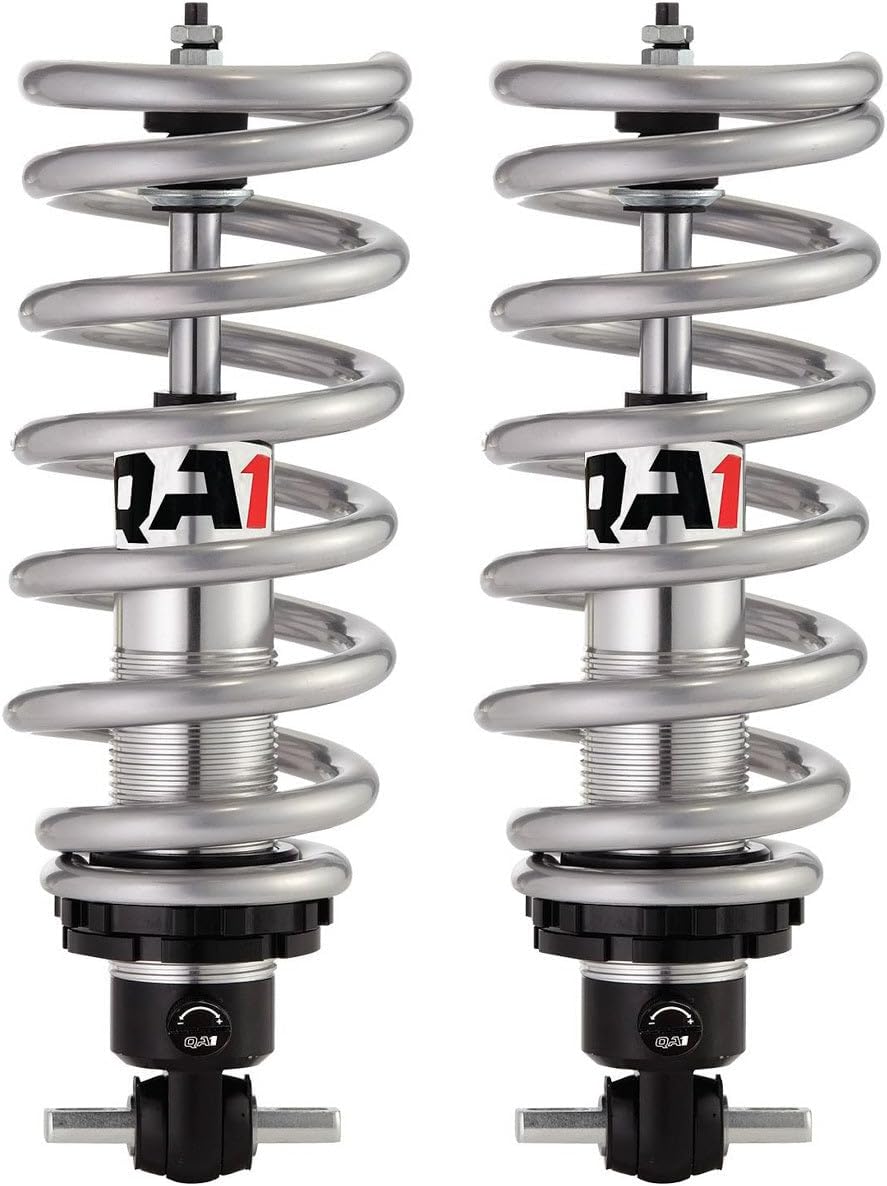

QA1 Precision Products GS401-10550A Coilover Spring and Shock Assembly

QA1 Precision Products GS401-10550A Pro-Coil Front Shock Kit - GM BB Cars

QA1 GS401-10550A - QA1 GM Pro Coil Single Adjustable Coil-Over Conversion Systems Details

Spring Style ''A''

  • 1967-1969 Camaro / Firebird
  • 1968-1974 Nova / Chevy II
  • 1973-1974 Omega
Shock Mount Type:
  • Stud Type Upper Mount
  • T-Bar Type Lower Mount

    *Notes: Some front applications may require the lower a-arm to be dropped for installation. Body diameter may be too large to allow mounting from the bottom. Some control arm's shock openings may need to be enlarged to accept a QA1 shock.

    Stud mounts are measured to the shoulder of the stud. Add 13/16'' for installed compressed length per stud mount. Loops and t-bars are measured to the center of the loop. Lengths may vary slightly.
  • Pro Coil Front Coil-Over System
  • Single Adjustable Shock
  • 9'' Compressed / 12.8'' Extended Shock Height
  • 10'' Spring Free Length
  • 2101-2300 lbs. Front End Weight
  • 550 lbs/in. Spring Rate

Products specifications

Adjustable Mounting Bracket Included

No

Adjustable Valving

Yes

Coil-Over Kit Position

Front

Coil-Over Springs Included

Yes

Collapsed Length (in)

10.130 in.

Compressed Height

9

Crossmember Included

No

Extended Height

12.8

Extended Length (in)

14.000 in.

Gas Charged

No

Internal Design

Twin-tube

Lower Mount

Bar pin

Notes

Single adjustable coil-overs, designed to fit applications with big block engines. Shocks are remote ready, they can be used with the QA1 two or four channel remote adjustable system.

Number of Valving Selections

18

Quantity

Sold as a kit.

Recommended Front-End Weight

2,101-2,300 lbs.

Ref No

16

Shock Body Finish

Clear anodized

Shock Body Material

Aluminum

Shocks Included

Yes

Spring Finish

Silver powdercoated

Spring Rate (lbs/in)

550 lbs./in.

Suspension Height Adjustment

0.0-2.0 in. lowered front

Threaded Adjustment Range

3.000 in.

Upper Mount

Stud

Welding Required

No
