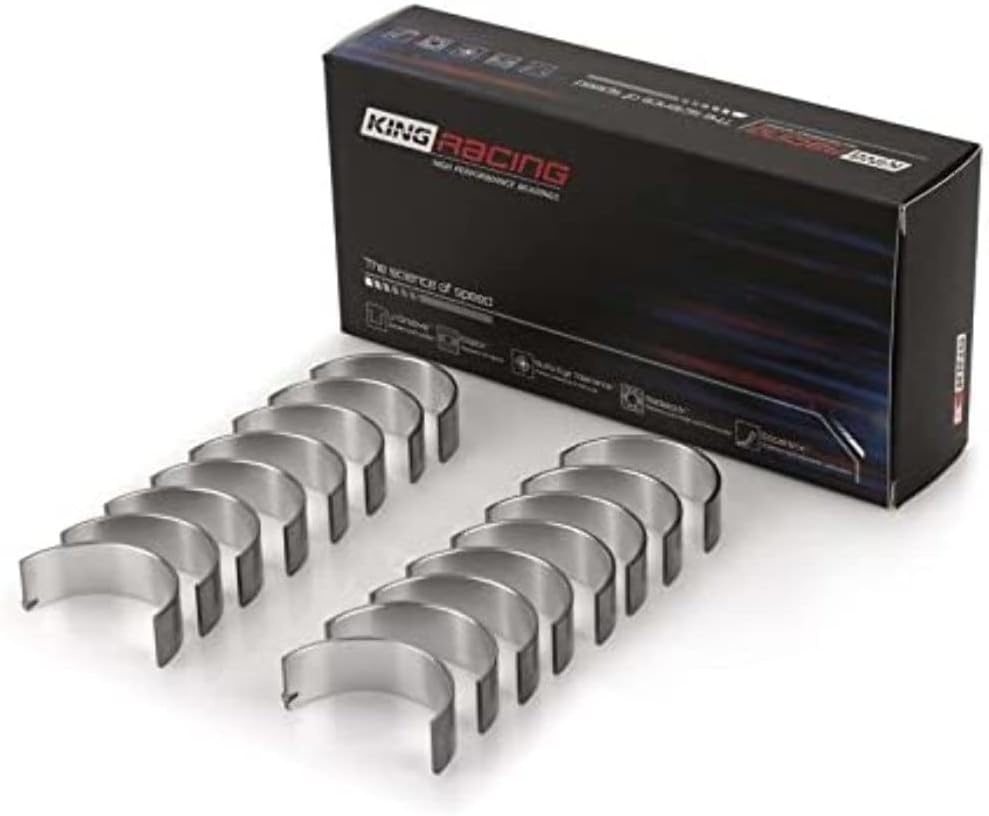

King Engine Bearings CR 807HPN 001 Connecting Rod Bearing Set For Chevrolet Sbc 307ci 350ci & Gen Iii/iv

King offers 3 levels of rod bearings for use in OE Stock, High Performance, and Extreme Performance applications. King connecting rod bearings are sold in engine sets.



CP-Series, AM-Series & SI-Series Bearings:
King CP-Series, AM-Series & SI-Series bearings are recommended for OE applications. CP-Series beartings are copper-lead on steel (Tri-Metal) with a .001" copper-lead tin overplate. AM-Series bearings are aluminum-copper-tin plus Alloy on high-strength steel (Bi-Metal). SI-Series bearings are Silicon-Aluminum bearings (Bi-Metal) which are designed for Aftermarket Gasoline or Diesel Engine Rebuilding & Performance Engines with OE Crankshafts.

HP-Series Bearings:
King HP-Series bearings are recommended for street and strip high performance applications. These Bi-Metal Silicon Aluminum bearings are designed for blown, turbocharged, NOS, and alcohol-fueled engines using aftermarket crankshafts. These bearings have chamfered oil holes are fit aftermarket cranks machined with a large radii at the edge of the journals. Ideal for use in High Load, Short Duration Applications like Drag Racing, Tractor Pulling, Monster Trucks, etc.

XP-Series Bearings:
King XP-Series bearings are for extreme performance in high-load capacity applications. These Tri-Metal copper lead bearings are designed use on cranks with large radii (narrow rod bearings) and feature enlarged, chamfered oil holes. Ideal for use in High Load Circle Track & Endurance Applications.

---

What does the King part number Prefix/Suffix mean

---

NOTE: The term "Undersize" refers to a thicker bearing which is used when the Crankshaft has been turned down and is now undersized, not the bearing itself. The term "Oversize" is typically a thinner bearing than stock to allow for increased clearance.

Select your application below.

Chevy: 327ci , Small Block/LS/400ci , Big Block

Chrysler: 318/340/360ci Small Block , 426 Hemi, 440ci

Ford: 289/302ci Small Block , 351 Windsor , 4.6L/5.4L SOHC/DOHC , 429/460ci Big Block

Pontiac: Pontiac
Connecting Rod Bearing Set

• Chevy Small Block, LS, 400ci (Narrowed)
• HP-Series
• .001" Undersize
