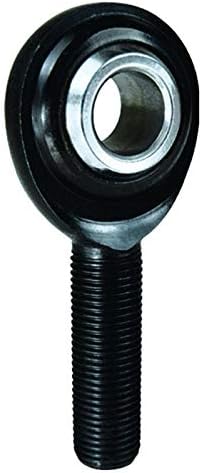

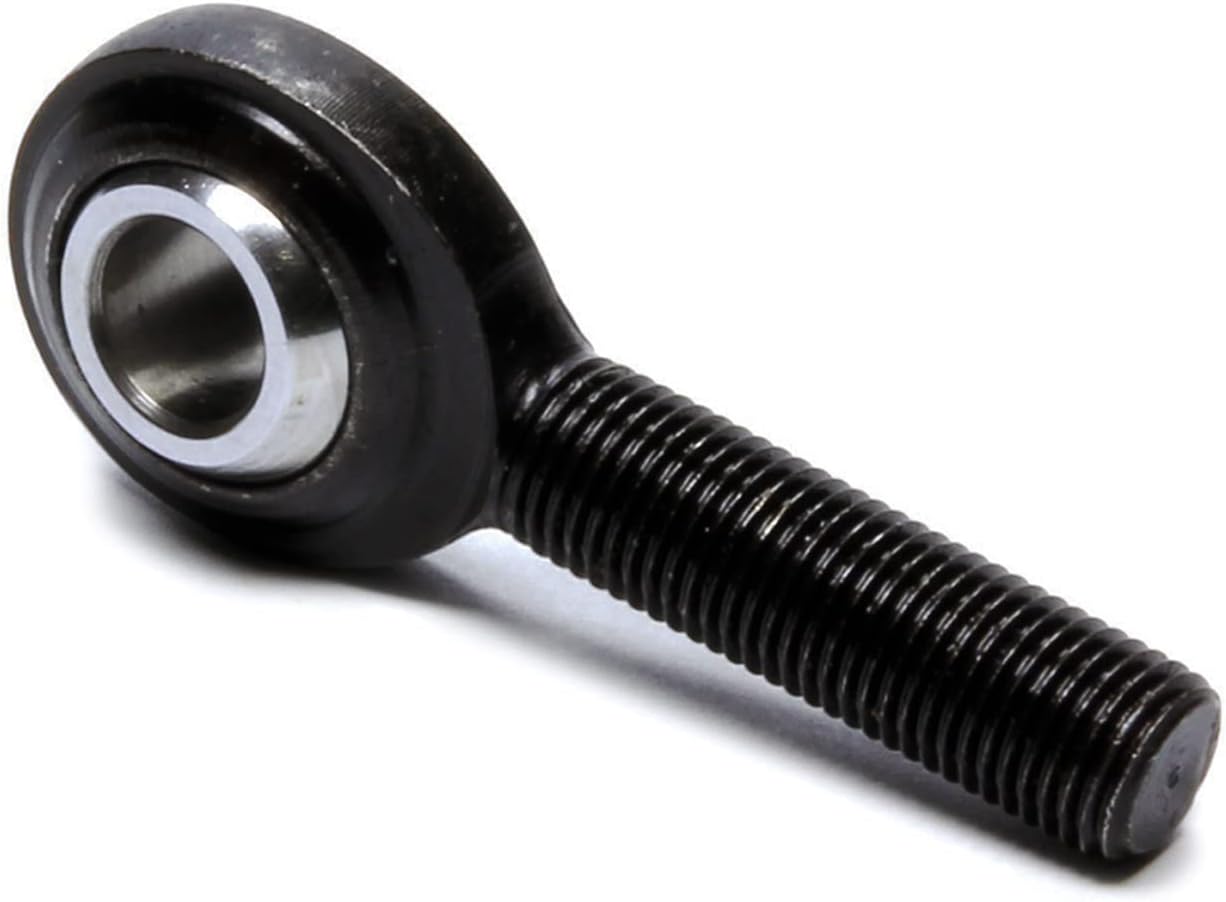

QA1 PCML8-10 Chromoly Steel Male Rod End with PTFE Liner

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

PCML8-10
8 reviews
Sale Price

$11.30

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 PCML8-10 is a high-performance chromoly steel male rod end from the PCM-T Series, featuring a two-piece economy design. This rod end combines superior strength with self-lubricating performance, making it ideal for demanding automotive, racing, and fabrication applications.

Key Features:

  • Two-piece swaged construction for economical performance
  • PTFE liner provides self-lubricating operation and extended service life
  • Chromoly steel body delivers higher load ratings than carbon steel alternatives
  • 52100 bearing steel ball is heat treated, hard chrome plated, and precision ground
  • Black oxide coating on body for corrosion resistance
  • Heat treated components throughout for maximum durability

Ball Specifications:

  • Material: 52100 bearing steel
  • Heat treated for strength
  • Hard chrome plated surface
  • Precision ground finish

Body Specifications:

  • Material: Chromoly steel
  • Heat treated construction
  • Black oxide coating
  • PTFE lined for reduced friction

This male rod end offers the performance advantages of chromoly steel construction with the maintenance benefits of PTFE lining, making it an excellent choice for suspension linkages, steering components, and custom fabrication projects where reliability and smooth articulation are essential.

Products specifications

A (+/-0.015)

2.625

Approx Bearing Weight

0.3

B (+0.0015/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.625

D Ref

1.5

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

20

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.625 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.500 in.

Rod End Head Width

0.625 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

20 degrees

Rod End Static Load Capacity

19,300 lbs.

Rod End Static Load Capacity (lbs)

19,300 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

5/8-18 LH in.

Thread Length

1.625 in.

Thread Type

Left Hand

Thread UNF-3A

5/8 -18

UTL Radical Static

19300

W (+/-0.005)

0.625
