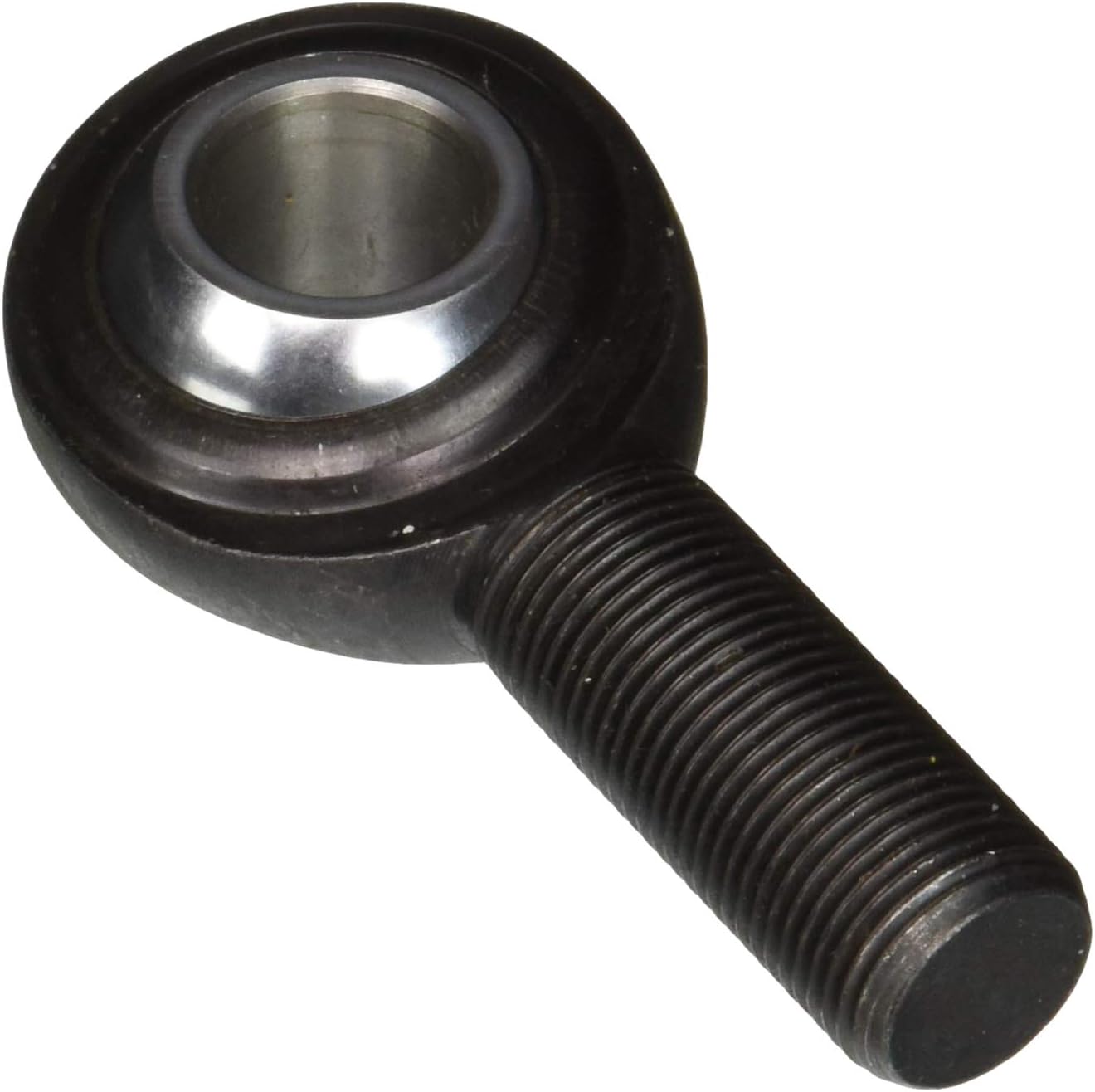

QA1 PCML12 Chromoly Steel Male Rod End 3/4 Bore

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

PCML12
14 reviews
Sale Price

$14.42

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 PCML12 is a high-performance chromoly steel male rod end designed for demanding motorsport and performance applications. This 2-piece rod end features a precision-ground, hard chrome plated ball housed in a heat-treated chromoly steel body with black oxide coating for superior strength and corrosion resistance.

Key Features:

  • 3/4-inch bore diameter with male thread configuration
  • 52100 bearing steel ball - heat treated, hard chrome plated, and precision ground
  • Chromoly steel body - heat treated for maximum strength
  • Black oxide coating for corrosion resistance
  • PTFE liner for self-lubrication and reduced maintenance
  • 2-piece swaged design for economical performance
  • Superior load ratings compared to carbon steel alternatives

Construction Details:

The PCML12 utilizes a proven 2-piece design where the body is swaged around the ball on each side to lock it securely in place, then adjusted for proper articulation. This economical construction method delivers reliable performance for race cars, off-road vehicles, suspension linkages, and other applications requiring precise rotational movement under load.

The PTFE liner provides self-lubricating properties that reduce friction and extend service life, making this rod end ideal for applications where regular maintenance access may be limited. The combination of heat-treated chromoly construction and precision-ground bearing surfaces ensures consistent performance under demanding conditions.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.57

B (+0.0015/-0.0005)

0.75

Ball Dia Ref

1.312

C (+0.062/-0.031)

1.75

D Ref

1.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

24

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.750 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.875 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

24 degrees

Rod End Static Load Capacity

25,000 lbs.

Rod End Static Load Capacity (lbs)

25,000 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

3/4-16 LH in.

Thread Length

1.750 in.

Thread Type

Left Hand

Thread UNF-3A

3/4 -16

UTL Radical Static

25000

W (+/-0.005)

0.875

Title

QA1 Suspension Rod End Bearing PCML12
