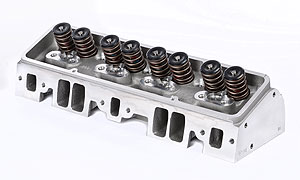

Dart 127322 SHP Small Block Chevy Aluminum Cylinder Head

Manufacturer

Dart

<p>Dart is committed to producing the best engine components available. All development, machining and assembly are done at Dart&rsquo;s own facilities in order to maintain the highest standards of quality. State of the art CNC machining centers, a computer controlled dynamometer and the proprietary &ldquo;Speed Flow&rdquo; technology / wet flow bench are among the assets which contribute to &ldquo;the Dart advantage&rdquo;.</p>

Picture for manufacturer Dart 22000020 Valvetrain

Part Number

127322
14 reviews
04/19/2034 5:02 AM
Sale Price

$752.35

Out of Stock

Notify me when available
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

Dart 127322 SHP Small Block Chevy Aluminum Cylinder Head

Dart 127322 SBC 200cc SHP Head 64cc S/P 2.02/1.60 Assm.

Dart 127322 - Dart SHP Small Block Chevy Aluminum Cylinder Head Details

200cc Intake Runners

  • 0.620" Max Lift

Flow:

  • Intake: 264 cfm @ 0.500"
  • Exhaust: 180 cfm @ 0.600"

Recommended Gaskets:
Head:

  • 350 Block (Fel-Pro 375-1003)
  • 400 Block (Fel-Pro 375-1014)
    Intake:
  • 200cc (Fel-Pro 375-1205)
    Exhaust:
  • All (Fel-Pro 375-1404 or 375-1405)

Recommended Spark Plug:

  • 0.750" Reach Gasketed 5/8" Hex
  • Small Block Chevy SHP Assembled Cylinder Head
  • 200cc Intake Ports
  • 64cc Combustion Chambers
  • 2.02" Int/1.60" Exh Valves
  • 1.437" Dual Valve Springs
  • 3/8" Rocker Studs
  • 5/16" Guide Plates
  • Straight Plugs
  • 1/pkg

Products specifications

Accessory Bolt Holes Drilled

Yes

Calculator

Compression Calculator

CNC-Machined Combustion Chamber

No

CNC-Machined Exhaust Runner

No

CNC-Machined Intake Runner

No

Combustion Chamber Style

Heart

Combustion Chamber Volume (cc)

64

Cylinder Head Finish

Natural

Cylinder Head Material

Aluminum

Cylinder Head Style

Assembled

Damper Spring Included

No

Exhaust Port Shape

Square

Exhaust Runner Volume (cc)

75cc

Exhaust Valve Angle

23

Exhaust Valve Diameter (in)

1.600 in.

Exhaust Valves Included

Yes

Guideplate Pushrod Size

5/16 in.

Guideplates Included

Yes

Heat Crossover

No

Intake Port Location

Standard

Intake Runner Volume (cc)

200cc

Intake Valve Angle

23

Intake Valve Diameter (in)

2.020 in.

Intake Valves Included

Yes

Lock Style

10 degree

Locks Included

Yes

Machined for O-Ring

No

Maximum Valve Lift (in)

0.620 in.

Number of Springs Per Valve

Dual

Oiling Style

Through pushrod

Outside Diameter of Outer Spring (in)

1.437 in.

Quantity

Sold individually.

Retainer Material

Steel

Retainers Included

Yes

Rocker Arm Nut Thread Size

3/8-24 in.

Rocker Arm Nuts Included

No

Rocker Arm Studs Included

Yes

Rocker Arms Included

No

Spark Plug Style

Straight

Steam Holes Drilled

No

Valve Cover Mounting Style

Center and perimeter bolt

Valve Guide Material

Manganese bronze

Valve Seat Machine Style

5-angle intake/2-angle exhaust

Valve Seat Material

Powdered metal

Valve Seats Machined

Yes

Valve Stem Seal Style

Umbrella
