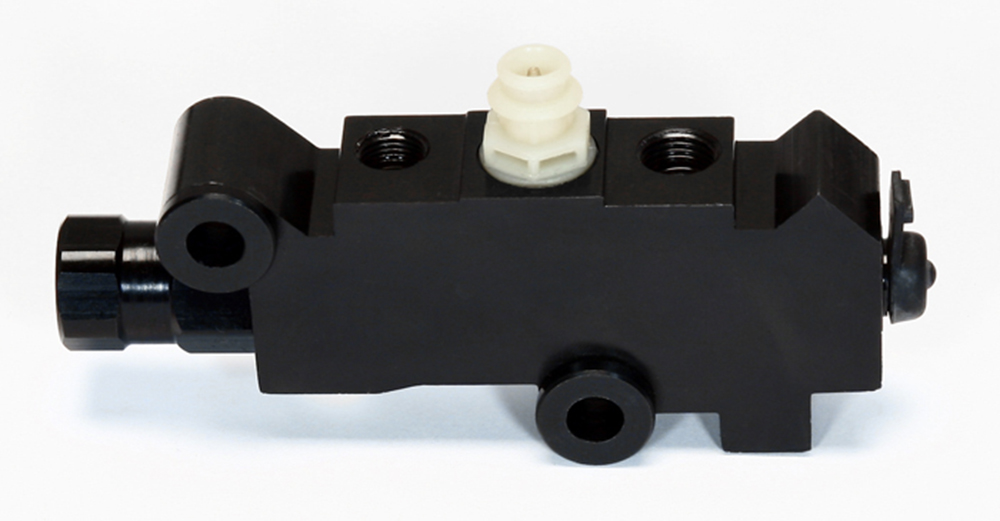

Wilwood 260-11322 GM Style Combination Proportioning Valve

Manufacturer

Part Number

260-11322
Black Friday Price

$131.38

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 260-11322 is a GM-style combination proportioning valve designed as a direct replacement for 1978 and newer General Motors vehicles equipped with front disc and rear drum brake systems. This valve can also be adapted for use in non-GM applications with appropriate line modifications.

Construction and Finish:

  • Manufactured from high-quality aluminum for durability and light weight
  • Protected with a durable black anodized finish
  • OE-style line connections allow direct hookup to factory brake lines when mounted in original location

Performance Specifications:

  • Knee point: 350 PSI with 63% pressure reduction to rear circuit
  • 30 PSI delay between rear and front brake circuits
  • Circuit failure sender activates at 50 ± 10 PSI for early warning of brake system problems
  • Maximum recommended operating pressure: 2000 PSI
  • Non-adjustable front-to-rear proportioning ratio

Key Features:

  • Anti-dive metering delay valve allows rear brake pressure to build momentarily before front pressure, reducing nose-dive under braking
  • Built-in pressure switch for brake warning light activation
  • Can be mounted in non-OE locations with custom brake line fabrication

This combination valve provides proper brake bias for front disc/rear drum configurations while offering circuit failure protection and improved brake feel through its metering function.

Products specifications

Adjustment Style

Fixed

Inlet Attachment

Female threads

Inlet Quantity

Two

Inlet Size

9.5mm

Maximum psi

2,000 psi

Minimum psi

100 psi

Notes

Features one 1/2-20 in. inverted flare and one 7/16-24 in. inverted flare inlets, one 3/8-24 in. inverted flare and one 9/16-18 in. inverted flare outlets. Direct replacement for 1978 and newer General Motors vehicles equipped with front disc / rear drum brakes.

Outlet Attachment

Female threads

Outlet Quantity

Two

Pressure Reduction (%)

63 percent

Proportioning Valve Finish

Black anodized

Proportioning Valve Material

Aluminum

Quantity

Sold individually.
