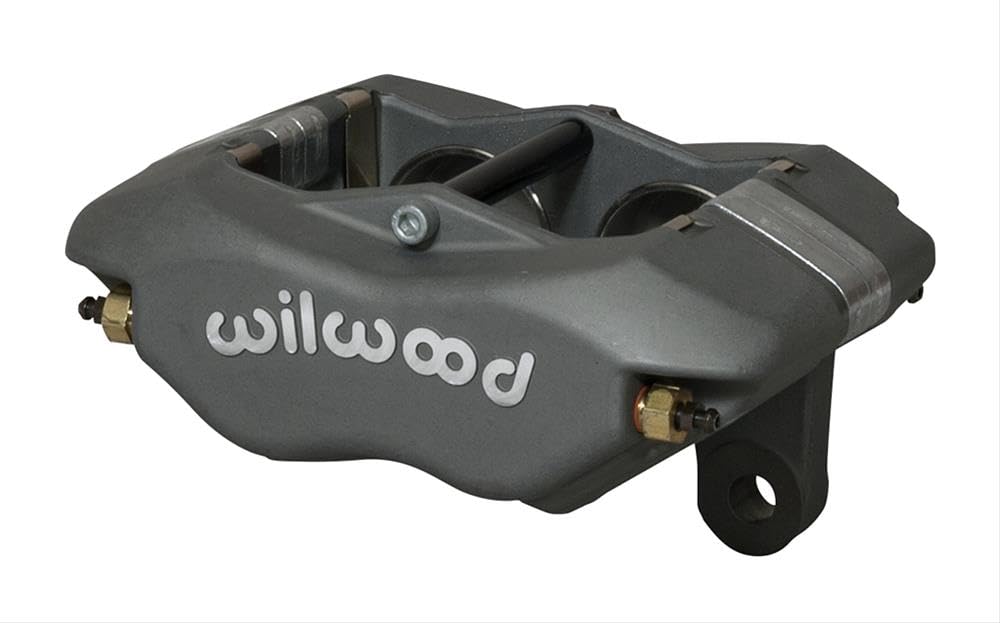

Wilwood 120-11579 Forged Narrow Dynalite Caliper 3.50" Mount 1.12" Pistons 1.25" Disc

Manufacturer

Part Number

120-11579
Black Friday Price

$195.58

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 120-11579 Forged Narrow Mount Dynalite (FNDL) is a competition-grade disc brake caliper built for demanding motorsports use, including late models, modifieds, sprint cars, off-road, and road racing. Designed as a direct replacement for all previous Wilwood NDL calipers and comparable competitive brands with 3.50" centered mounting tabs, the FNDL represents a significant step forward in caliper strength and performance.

The caliper body is produced through a stress-flow forging process that re-aligns the metal's grain structure within the contour of the caliper, eliminating the grain interruptions that result from machining a straight billet block. Wilwood's FEA-generated radial transition design removes steps and shoulders between the piston housing and caliper bridges, substantially increasing resistance to deflection and caliper separation under load. Structural deflection and volume displacement testing confirms the FNDL outperforms all existing styles in this popular caliper size class.

Key Features:

  • Mount: 3.50" centered mounting tabs — direct replacement for Wilwood NDL and comparable competitive calipers
  • Piston Size: 1.12" diameter stainless steel pistons (4-piston opposed)
  • Rotor Compatibility: 1.25" disc width
  • Pad Compatibility: Top-load 7816 or 7216 type brake pads; full range of Wilwood PolyMatrix compounds available
  • Bridge Design: Five-bolt construction for superior bridge strength and positive pad retention
  • SRS Stainless Steel Bridge Plates: Eliminate bridge wear from pad gouging, extend caliper service life, reduce pad rattle, and dampen vibration harmonics that contribute to brake squeal
  • Stainless Steel Pistons: Resist corrosion and retard heat transfer from the brake pads
  • High-Temperature Seals: Designed for sustained use in high-heat competition environments
  • Internal Fluid Passages: Eliminate the need for external brake lines or tubes
  • Four-Corner Bleed Screws: Ensure thorough air evacuation and allow a single caliper to be mounted in any front, rear, left, or right position
  • Universal Mounting: One caliper fits all four corners of the vehicle
  • Finish: Legacy units feature Wilwood Black Anodize; newer production units feature Type III Gray Anodize coating; polished finish available in select piston sizes and rotor widths

The Wilwood FNDL caliper combines the structural advantages of modern forging and FEA-driven design with the proven performance features that have made the Dynalite series a staple in competition braking. It is an ideal upgrade or replacement for any application requiring the 3.50" narrow mount form factor.
