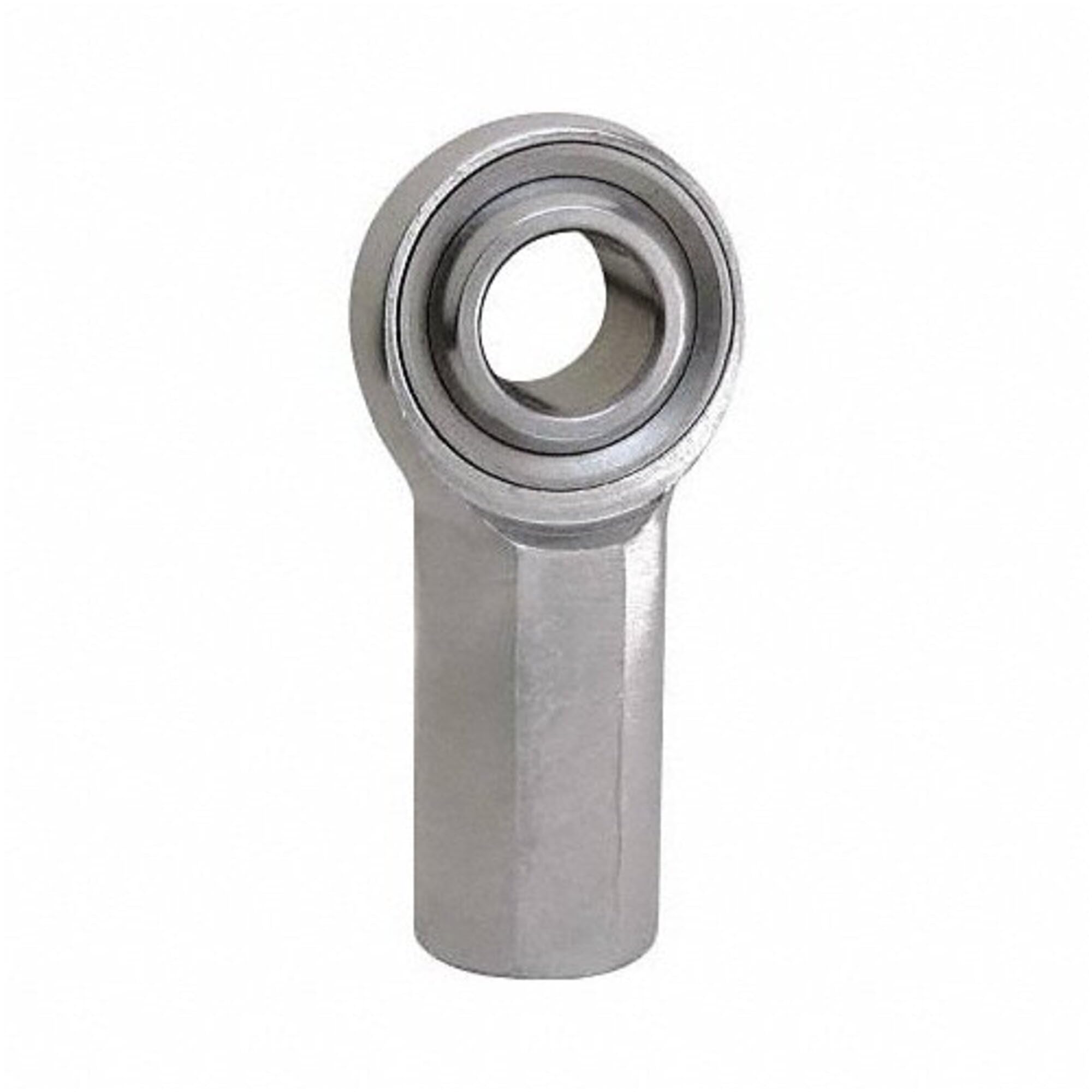

QA1 KFR16 KF Series 3-Piece Carbon Steel Female Rod End 1in Bore 1-1/4in-12 RH Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

KFR16
8 reviews
Sale Price

$86.18

Estimated ship date Sunday, November 22

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 KFR16 is a KF Series 3-piece carbon steel female rod end featuring a 1-inch bore and a 1-1/4 inch-12 right-hand thread. Built using QA1's precision three-piece construction, the ball is pressed into a sleeve that is swaged around it to form an insert. The insert's outer diameter is then turned down and faced off to ensure square sides before staking into the rod end body. This process delivers superior ball-to-race conformity and tighter tolerances, making the KFR16 an excellent choice for high-load, precision-critical applications in racing, suspension, and performance drivetrain systems.

Key Features:

  • 3-piece design with swaged insert for improved ball-to-race conformity and tighter tolerances
  • 1.0000 in. bore diameter with 1-1/4 in.-12 UNF-2B right-hand thread
  • 17° misalignment angle
  • Radial static load capacity: 40,889 lbf
  • Head diameter: 2.750 in. | Ball diameter: 1.875 in. | Ball width: 1.375 in.
  • Meets SAE J1120 standards
  • Grease fitting and stud configurations available separately

Ball:

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race:

  • Alloy/Chromoly Steel
  • Heat Treated
  • Corrosion and Wear Resistant

Body:

  • Carbon Steel (Alloy Steel — Manufacturer's Option)
  • Protective Coated for Corrosion Resistance

The QA1 KFR16 spherical rod end bearing is designed for applications demanding precision fit and reliable performance under high radial loads. Available in right-hand thread configuration and compatible with inch-dimensioned linkages.

Products specifications

A (+/-0.015)

4.125

Approx Bearing Weight

2.28

B (+0.0015/-0.0005)

1

Ball Dia Ref

1.875

C (+0.062/-0.031)

2.125

D (+/-0.010)

2.75

E (+/-0.010)

1.625

F (+/-0.010)

1.5

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

17

Notes

Only rod end ball and race are heat treated.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

1.375 in.

Rod End Centerline Length

4.125 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

1.000 in.

Rod End Head Diameter

2.750 in.

Rod End Head Width

1.375 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

17 degrees

Rod End Static Load Capacity

40,889 lbs.

Rod End Static Load Capacity (lbs)

40,889 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

1 1/4-12 RH in.

T (+/-0.005)

1

Thread Length

2.125 in.

Thread Type

Right Hand

Thread UNF-2B

1-1/4 -12

UTL Radical Static

40889

W (+0.000/-0.005)

1.375

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
