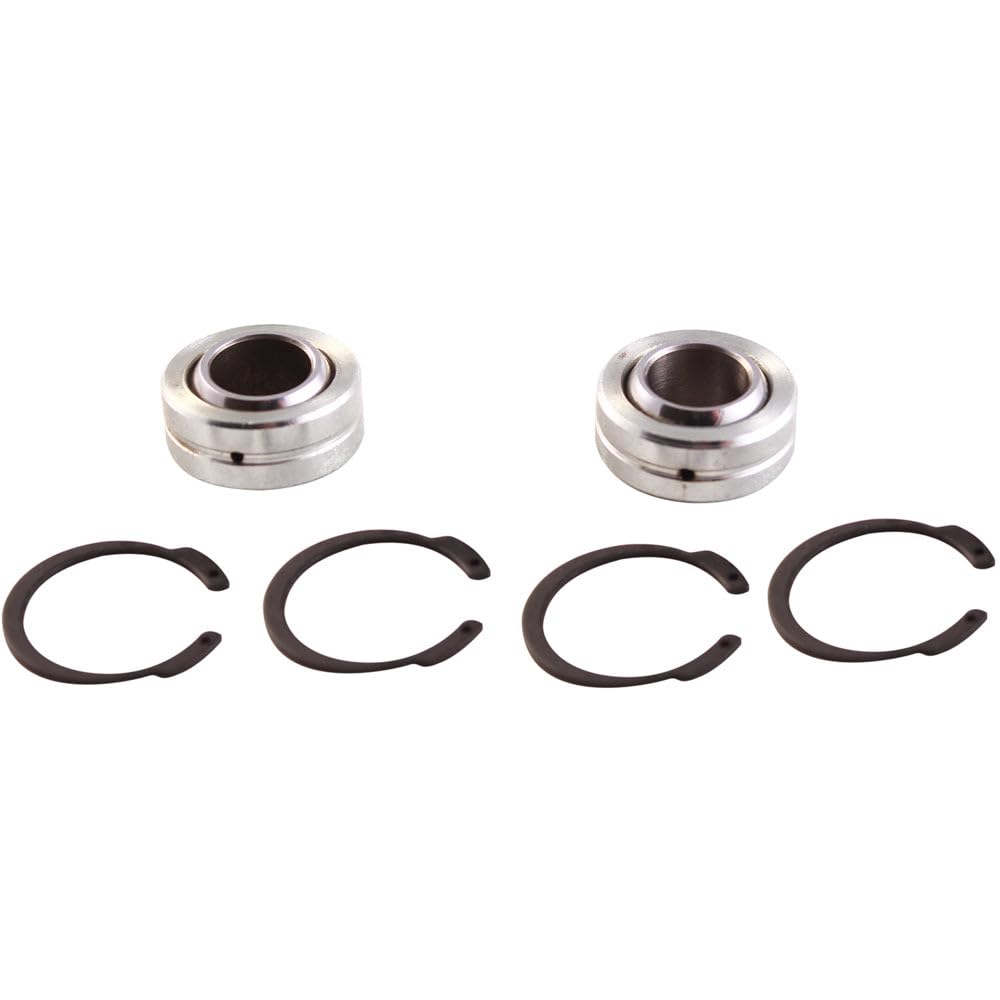

QA1 Precision Products COM8PK Bearing Kit
(2) Spherical Bearings
(4) Snap Rings
(1) Tube of Loctite (w/ Certain Apps)
QA1?s spherical bearings are available in a wide variety of
sizes, styles and materials with or without PTFE liners. Custom sizes and materials available
upon request.
SLB Endura Series Spherical
Bearings
For the ultimate in performance spherical bearings, look no further
than QA1?s SLB Endura Series spherical
bearings. SLB Series spherical bearings
are completely self-sealing and self-lubricating because of their
Nylon/PTFE injection molded race that
keeps dirt and debris out. This design results in metal to metal
support for heavy shock loads and smooth operation for low and
moderate loads.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
LINER
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
RACE
- Stainless Steel
- Heat Treated
EXCLUSIVE FEATURES
- Metal to Metal Support for Heavy Shock Loads
EMB Nylon Race Series
Spherical Bearings
QA1?s EMB Nylon Race Series spherical
bearings feature an injection molded race for superior ball to race
conformity. This race results in the bearing being completely
self-sealing and self-lubricating, keeping dirt and debris out.
EMB Series spherical bearings are ideal
for low load, low oscillation applications.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
- 0.006? ? 0.008? Deep 60? V-Groove ? 56 TPI
Note: Part #EMB9-101
? Bore tolerance is +0.005/-0.000; ball width tolerance is
+0.040/-0.020; no O.D. v-groove.
COM & COM-T Commercial Series Spherical
Bearings
For an economical traditional spherical bearing, QA1?s COM and COM-T Series is the
perfect choice. Each bearing is made from chromoly steel with an
optional self-lubricating PTFE liner.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
LINER (COM-T)
RACE
- Chromoly Steel (Mfr.?s Option ? Stainless Steel)
- Heat Treated
- Protective Coated for Corrosion Resistance
COM-SS Stainless Steel Series Spherical
Bearings
For a polishable spherical bearing, QA1?s COM-SS Stainless Steel
Series is the perfect choice. Each bearing is made from 300 Series
Stainless Steel and is available in a variety of sizes.
More information on QA1?s COM-SS Stainless Steel
Series spherical bearings is available below:
BALL
- 440C Stainless Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- 300 Series Stainless Steel
HCOM & HCOM-T Large Bore Series Spherical
Bearings
For those special applications, QA1?s HCOM and HCOM-T Large Bore
Series spherical bearings are a great solution. With bore sizes
from one to two inches, these spherical bearings are ideal for
large applications. Each bearing is made from chromoly steel with
an optional self-lubricating PTFE
liner.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
LINER (HCOM-T)
RACE
- Chromoly Steel
- Heat Treated
- Protective Coated for Corrosion Resistance
NPB-T Narrow Stainless Steel
Series Spherical Bearings
For a precision spherical bearing, QA1?s NPB-T Narrow Stainless Steel Series spherical
bearings are the perfect selection. Each bearing is made from
Stainless Steel with a PTFE liner and has
tighter tolerances than traditional spherical bearings.
BALL
- 440C Stainless Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
LINER
RACE
- Stainless Steel
- Heat Treated
YPB-T High Misalignment
Stainless Steel Series Spherical Bearings
For applications requiring high misalignment, QA1?s YPB-T High Misalignment Stainless Steel Series
spherical bearings are the ideal choice. Each bearing is made from
Stainless Steel with a PTFE liner, has
tighter tolerances and at least double the misalignment angle
compared to traditional spherical bearings.
BALL
- 440C Stainless Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
LINER
RACE
- Stainless Steel
- Heat Treated
WPB-T & WPB-TG Wide Stainless Steel
Series Spherical Bearings
QA1?s WPB-T and WPB-TG Wide Stainless Steel
Series spherical bearings are a precision grade spherical bearing.
Each bearing is made from Stainless Steel with a PTFE liner and has tighter tolerances than
traditional spherical bearings. Also available with this series is
an optional staking groove.
BALL
- 440C Stainless Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
LINER
RACE
- Stainless Steel
- Heat Treated
- Staking Groove (WPB-TG)
AIB & AIB-T Chromoly Steel Series Spherical
Bearings
Made from chromoly steel, QA1?s AIB &
AIB-T Series spherical bearings offer
better wear characteristics than their traditional carbon steel
counterparts. These spherical bearings are available with an
optional self-lubricating PTFE liner.
More information on QA1?s AIB &
AIB-T Chromoly Steel Series spherical
bearings is available below:
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
LINER (AIB-T)
RACE
- Chromoly Steel
- Heat Treated
- I.D. Protective Coated for Corrosion Resistance
- Oil Coated
- Mfr.?s Option ? Heat Treated Stainless Steel
SIB & SIB-T Stainless Steel Series Spherical
Bearings
The SIB and SIB-T Series spherical bearings are QA1?s top of the
line commercial spherical bearing. Offering better wear
characteristics than their traditional carbon steel counterparts,
these spherical bearings are made from Stainless Steel and are
corrosion resistant. They are also available with an optional
self-lubricating PTFE liner.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
LINER (SIB-T)
RACE
- Stainless Steel
- Heat Treated
- Oil Coated
MIB & MIB-T Alloy Steel Series
QA1?s MIB and MIB-T Low Carbon Steel Series spherical bearings
offer more wear surface than a traditional COM bearing, extending the life due to the increased
race width and diameter. An optional self-lubricating PTFE liner is also available with these spherical
bearings.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
LINER (MIB-T)
RACE
- Low Carbon Steel
- I.D. Protective Coated for Corrosion Resistance
- Oil Coated
- Mfr.?s Option ? Heat Treated Stainless Steel
