MSD 8531 Iron Distributor Gear for Chevy .500 ID Shaft Melonite QPQ Coated

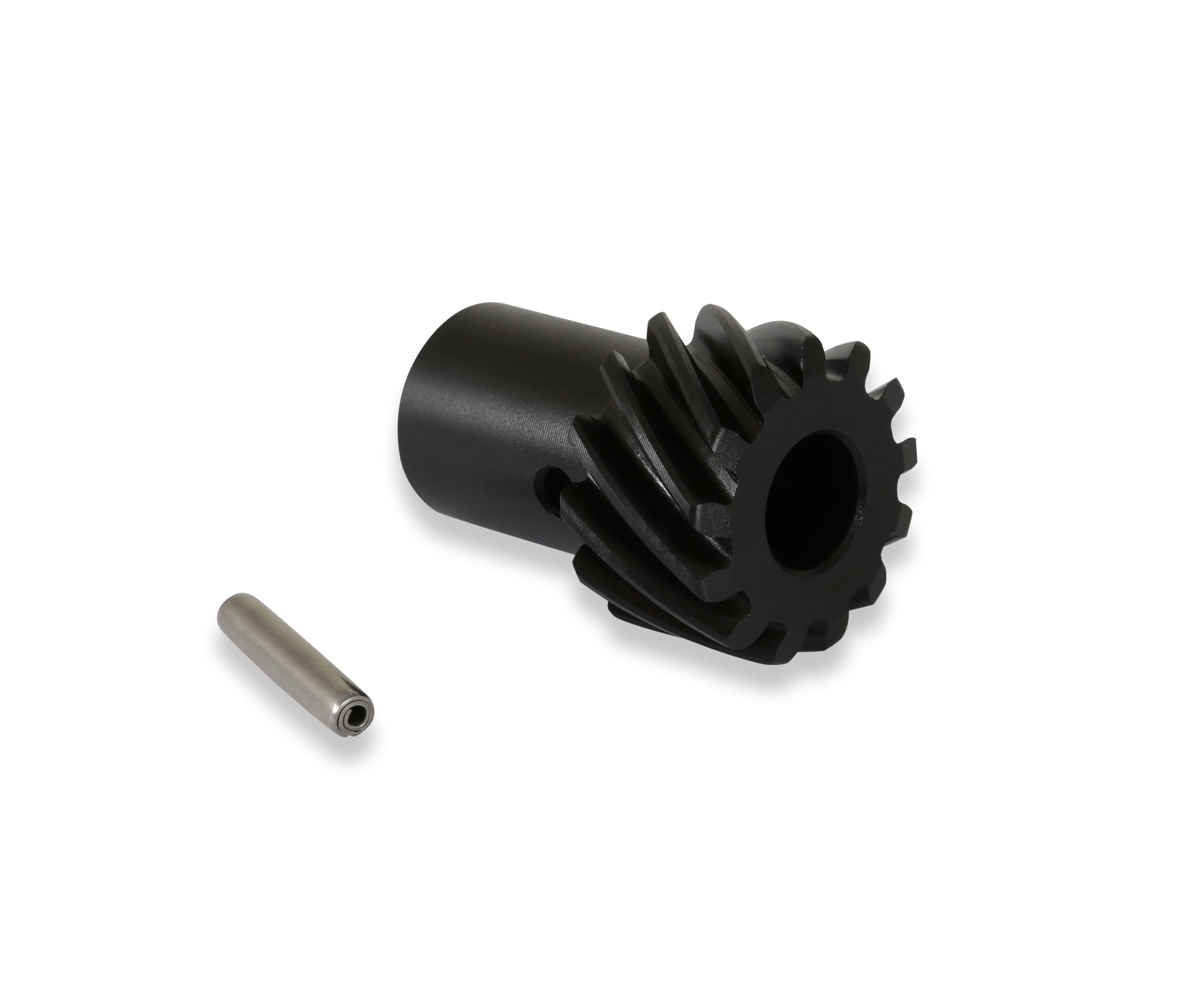

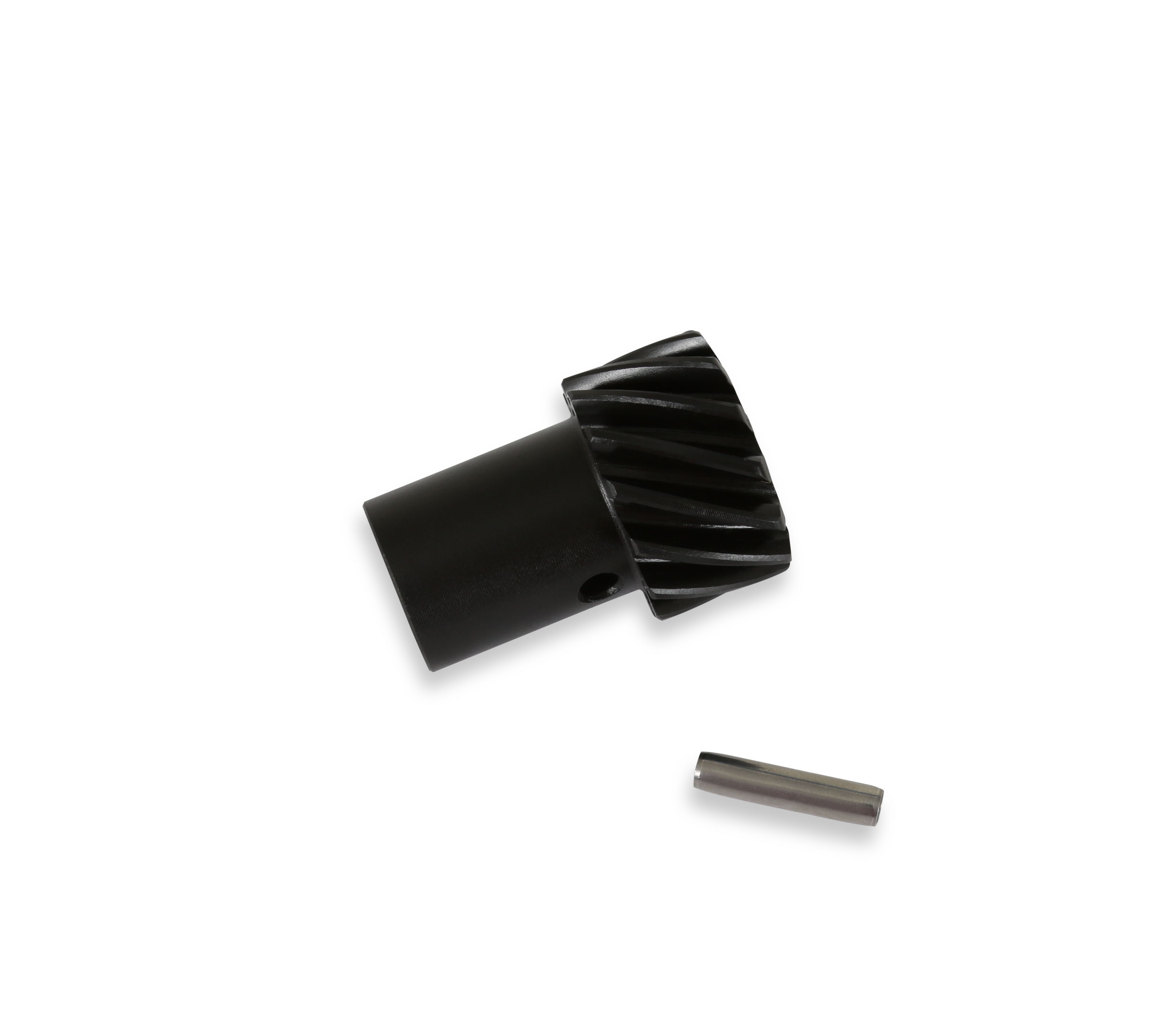

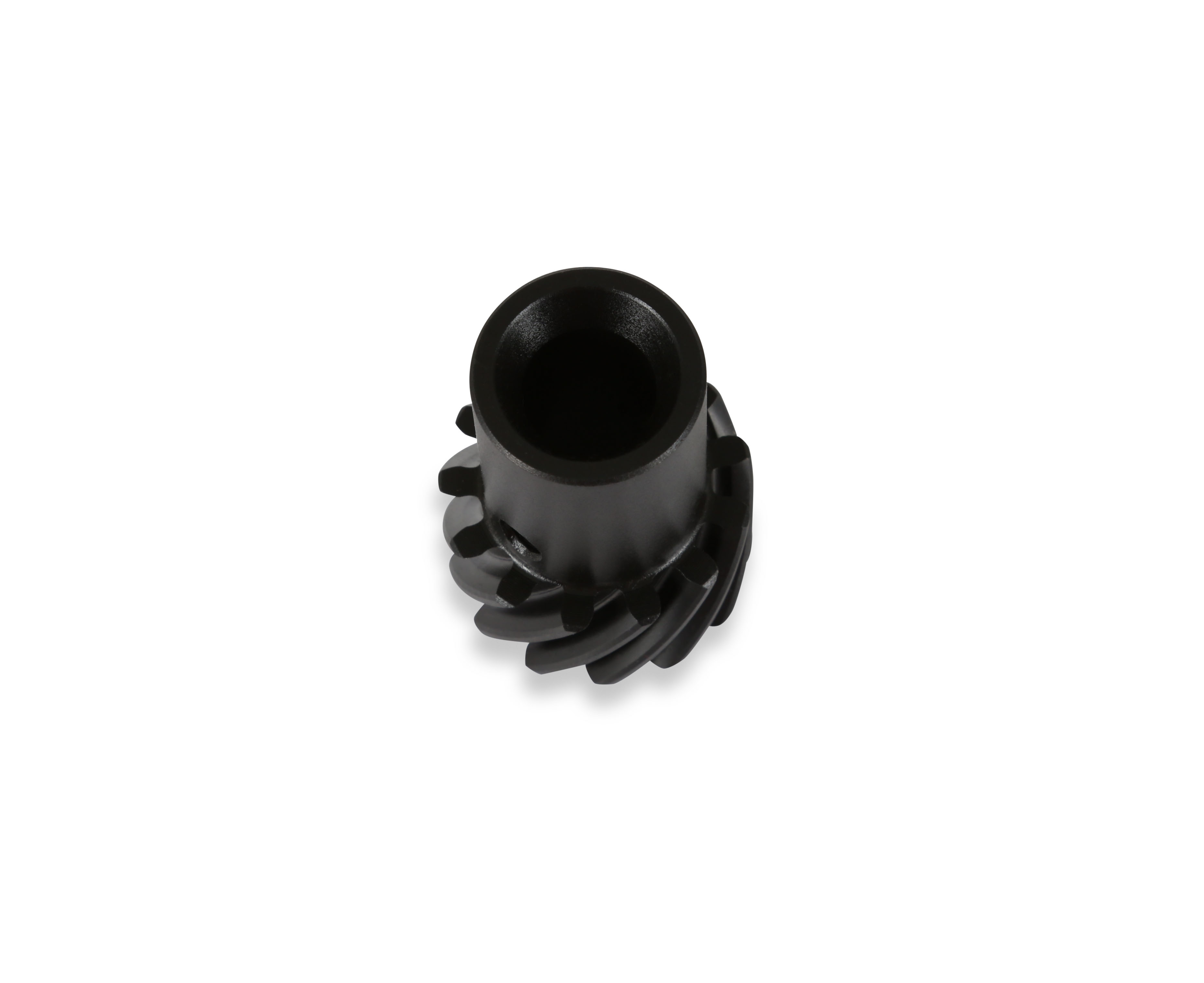

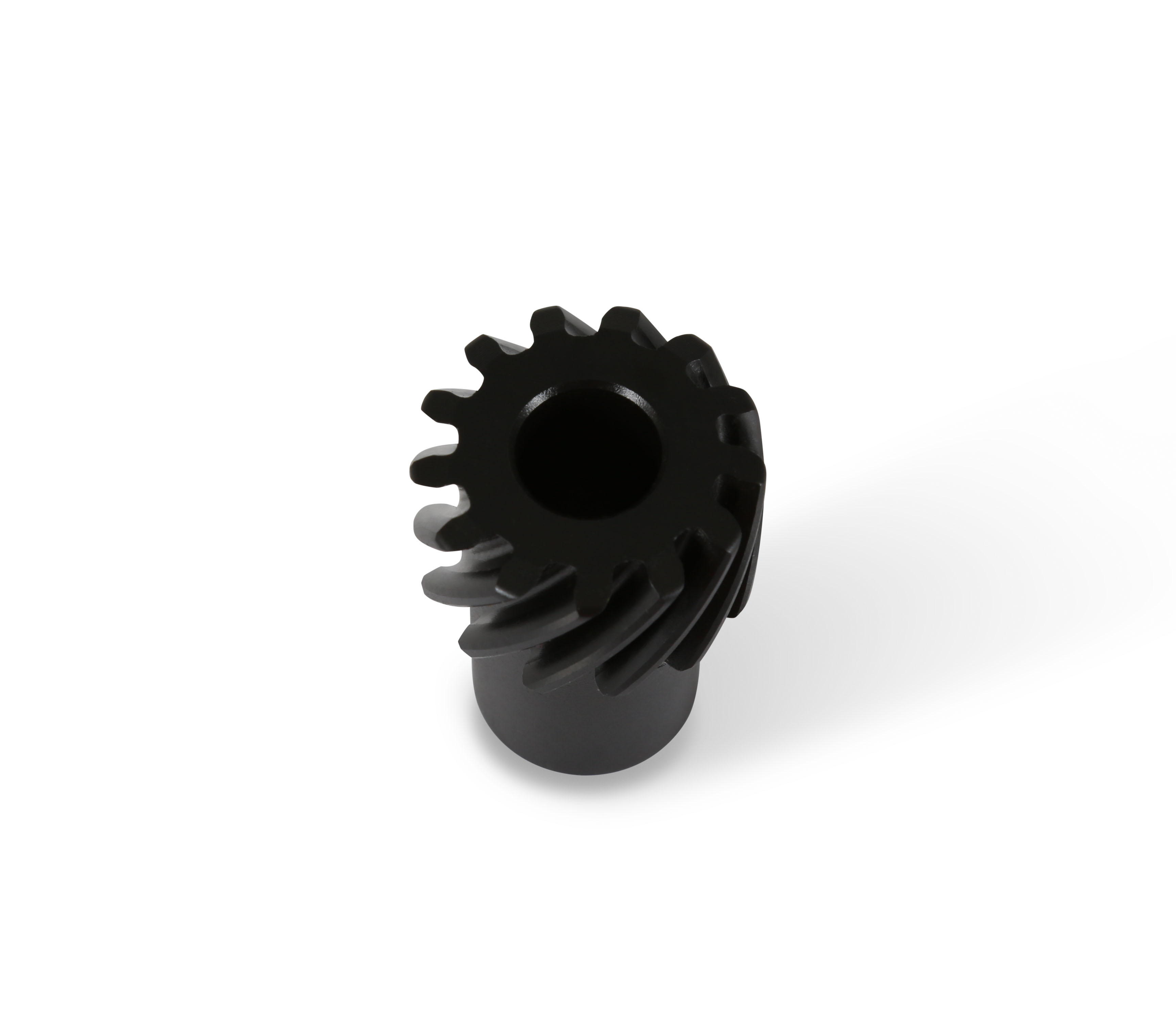

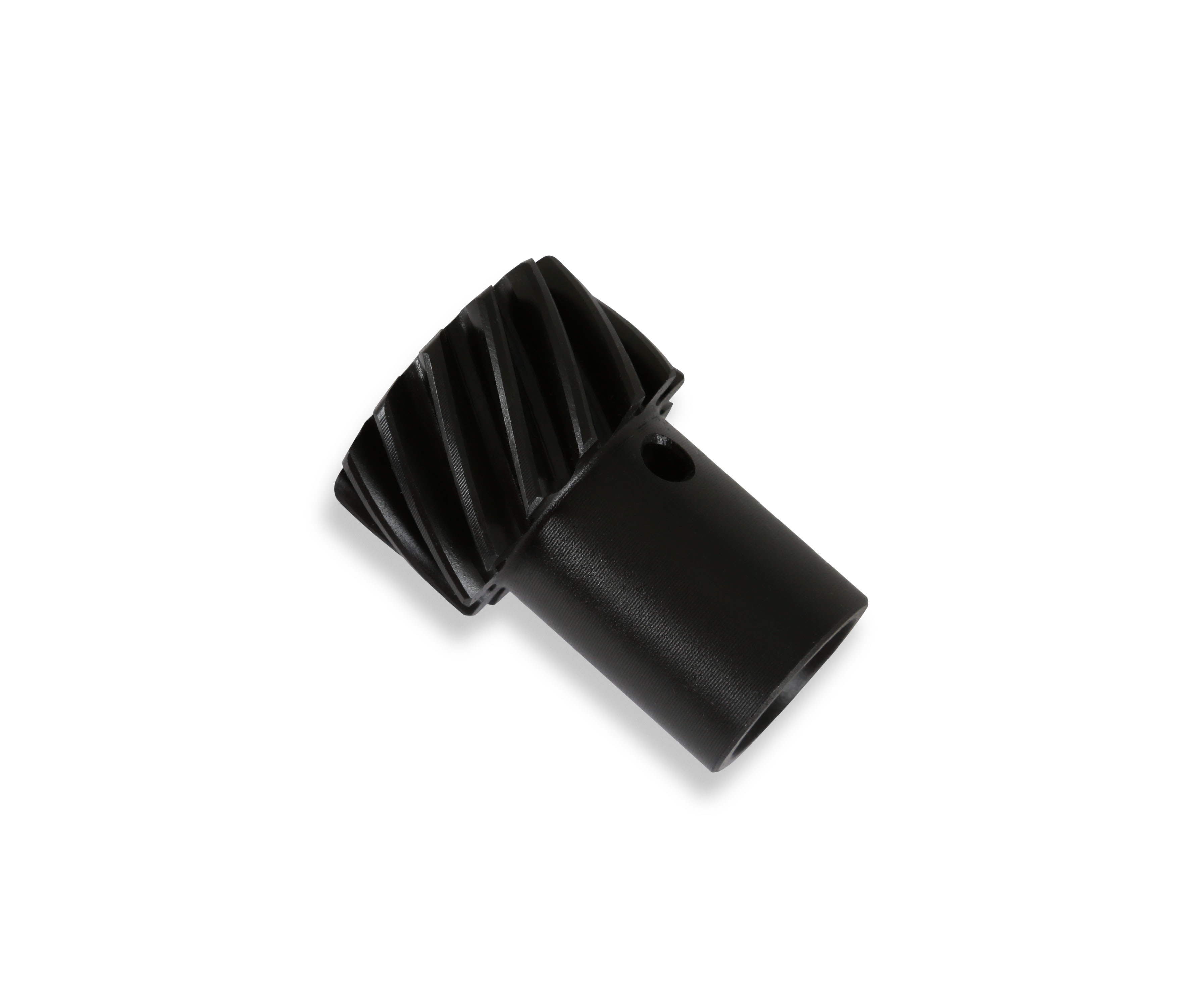

The MSD 8531 is a high-performance replacement distributor gear designed for Chevrolet distributors with a .500" inner diameter shaft. Engineered for durability and long service life, this gear is manufactured from a proprietary formulated ductile iron and features several advanced surface treatments that significantly outperform standard OEM-style gears in demanding performance applications.

Key Features:

• Proprietary ductile iron construction — specially formulated for superior strength and impact resistance compared to standard cast iron
• Micro-polished contact surface — reduces friction between mating gear teeth for smooth, consistent operation
• Increased outer hardened layer thickness (RC 55–60) — thicker hardened zone extends usable gear life under high-RPM and high-load conditions
• Melonite QPQ coating — thermochemical surface treatment that reduces friction, minimizes initial break-in wear, and improves corrosion resistance
• Elevated interstitial carbide concentration — enhances overall wear resistance, allowing this gear to hold up against aggressive camshaft lobe profiles and extended racing use
• .500" inner diameter — correct fitment for standard Chevrolet distributor shaft applications

The MSD 8531 distributor gear is an ideal upgrade or direct replacement for performance and race engines where distributor gear wear is a concern, particularly in applications using roller camshafts, high-pressure oil pumps, or extended duty cycles. The combination of Melonite QPQ coating and hardened ductile iron construction makes this gear a durable, long-lasting solution for both street and competition use.
