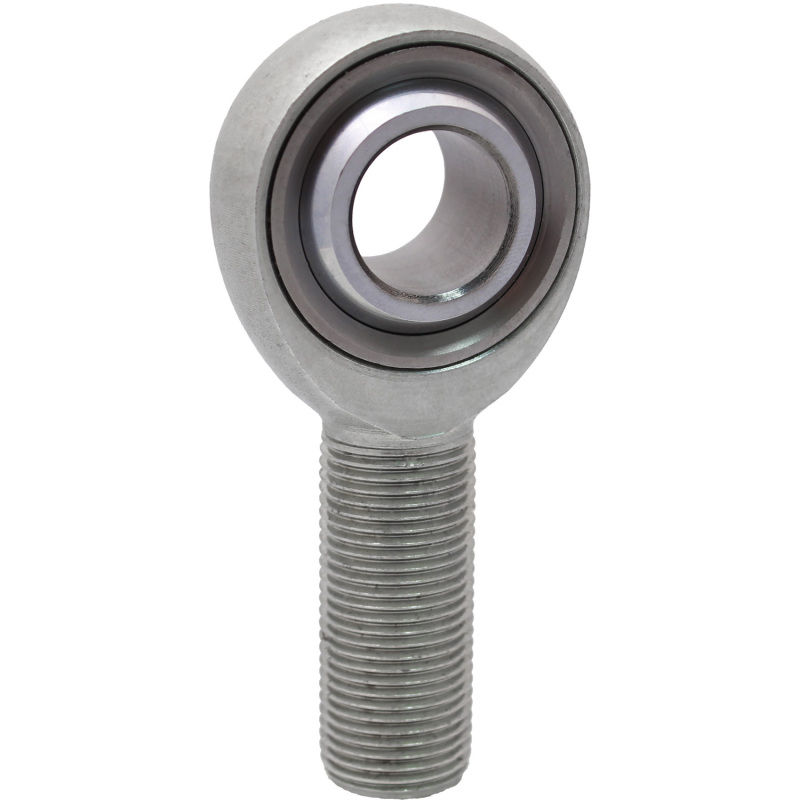

QA1 KML16 KM Series 3-Piece Carbon Steel Male Rod End 1in Bore 1-1/4-12 Left Hand Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

KML16
10 reviews
Sale Price

$86.18

Estimated ship date Sunday, November 22

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 KML16 is a KM Series 3-piece carbon steel male rod end featuring a 1 in. bore and 1-1/4-12 left-hand thread. QA1's 3-piece construction presses the ball into a sleeve that is swaged around the ball to form the insert. The outer diameter of the insert is then precision turned and faced to square up the sides before being staked into the rod end body — resulting in superior ball-to-race conformity and tighter operating tolerances compared to standard 2-piece designs.

The KML16 is well-suited for performance suspension, steering, and linkage applications where precise tolerances and durability under load are critical. Grease fittings and stud configurations are available separately.

Specifications:

  • Series: KM Series
  • Construction: 3-piece
  • Gender: Male
  • Thread Hand: Left Hand
  • Thread Size: 1-1/4 in.-12
  • Bore Size: 1.000 in.

Ball:

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race:

  • Alloy Steel
  • Corrosion and Wear Resistant

Body:

  • Carbon Steel (Alloy Steel — Manufacturer's Option)
  • Protective Coating for Corrosion Resistance

Products specifications

A (+/-0.015)

4.125

Approx Bearing Weight

2.41

B (+0.0015/-0.0005)

1

Ball Dia Ref

1.875

C (+0.062/-0.031)

2.125

D (+/-0.010)

2.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

17

Notes

Only rod end ball and race are heat treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

1.375 in.

Rod End Centerline Length

4.125 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

1.000 in.

Rod End Head Diameter

2.750 in.

Rod End Head Width

1.375 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

17 degrees

Rod End Static Load Capacity

43,541 lbs.

Rod End Static Load Capacity (lbs)

43,541 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

1 1/4-12 LH in.

T (+/-0.005)

1

Thread Length

2.125 in.

Thread Type

Left Hand

Thread UNF-3A

1-1/4 -12

UTL Radical Static

43541

W (+0.000/-0.005)

1.375

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
