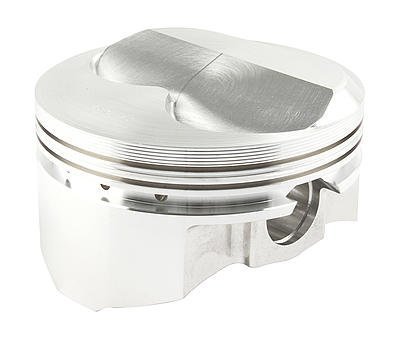

Wiseco 6238A6 Forged Piston 2618 Alloy Big Block Chevy 4.310 Bore Dome

(Chevrolet Corvette 1970-74, Impala 1970-76, Malibu 1973-75, C1500 1990-93, Chevelle 1971-73, Blazer 1973, C10 Pickup 1973-74, Caprice 1970-76 + 48 more models)

Manufacturer

Part Number

6238A6
Black Friday Price

$171.99

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 6238A6 is a high-performance, individually sold forged piston engineered for serious Big Block Chevy drag racing applications. Manufactured from 2618 high-strength aluminum alloy, this piston features a hollow open-chamber dome design (+48.4cc) with a 4.310" bore, delivering exceptional strength and reduced reciprocating weight ideal for lightweight drag builds.

Wiseco's motorsport heritage — spanning Formula 1, IRL Indy Racing, NHRA Pro Stock, and AMA Superbike — is built into every detail of this piston's design and construction.

Key Features:

  • 2618 High-Strength Alloy Forging — ISO-certified forging facility utilizing advanced materials and feature-aligned grain flow technology for maximum durability under extreme loads
  • Open Chamber Hollow Dome (+48.4cc) — CNC race-ready dome profile optimized for quench and detonation resistance during the compression/combustion cycle
  • Full Round Skirt with ArmorGlide Coating — Proprietary skirt coating minimizes friction, allows tighter bore fitment, reduces piston rock noise, and improves wear resistance
  • Radiused Valve Pockets — Allows maximum airflow around the valve heads, with clearance for oversized valves and high-lift camshafts
  • Precision Machined Ring Grooves — Proper orifice/accumulator volume with calculated groove root diameters and axial widths ensure maximum ring seal and minimized blow-by and oil consumption; accepts 1/16", 1/16", 3/16" ring set
  • Lateral Gas Ports & Anti-Detonation Pressure Seal Grooves — Engineered to improve ring seal and resist detonation under high-compression, high-boost, or nitrous applications
  • Fits 9.750" Deck Height — Designed for standard BBC deck heights with 4.250" stroke compatibility
  • Includes Wrist Pin: S460 (.990" x 2.930", .160" wall) with Double Spirolox® retainers

Specifications:

  • Bore: 4.310"
  • Dome Volume: +48.4cc
  • Average Weight: 550g
  • Compression Ratio (110cc chamber): 14.8:1
  • Compression Ratio (114cc chamber): 14.1:1
  • Compression Ratio (119cc chamber): 13.3:1
  • Compression Ratio (123cc chamber): 12.7:1
  • Recommended Ring Set: W100F8-4310-5 (sold separately)
  • Included Pin: S460
  • Sold as: Individual/Replacement Piston

This is an individual replacement piston. Ring sets are sold separately. Recommended ring set: W100F8-4310-5.

Products specifications

Fits

Chevrolet Corvette 1970-74, Impala 1970-76, Malibu 1973-75, C1500 1990-93, Chevelle 1971-73, Blazer 1973, C10 Pickup 1973-74, Caprice 1970-76, C10 1975-80, El Camino 1970-75, K2500 1991-2000, Express 3500 1996-2000, C3500 1988-2000 + 43 more models

Bore (in)

4.310 in.

Bore (mm)

109.474mm

Comp Height

1.27

Comp Ratio @ 110cc

14.8:1

Comp Ratio @ 114CC

14.1:1

Comp Ratio @ 119CC

13.3:1

Comp Ratio @ 123CC

12.7:1

Compression Distance (in)

1.270 in.

Dome Height (in)

0.700 in.

Dome Volume

48.4 Hollow

Gram Weight

550

Notes

Supplied with groove lock spacer.

Pin Diameter (in)

0.990 in.

Piston Head Volume (cc)

-48.40cc

Piston Material

Forged aluminum

Piston Ring Thickness

1/16 in. x 1/16 in. x 3/16 in.

Piston Style

Dome, with single valve relief

Quantity

Sold individually.

Rod

6.385 / 6.800

Stroke

4.250 / 4.250

Wrist Pin Style

Press-fit or floating

Piston Quantity

1

Make

Chevrolet

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.310

Compression Height

1.270

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Engine

Big Block

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston

Wrist Pin Outer Diameter

0.990

Forging Type

Full Round

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

48.40

EBAY Category ID

33623

Engine - Web

Big Block

Make - Web

Chevrolet

Ring Set Included

No

Skirt Coating

Yes

Wrist Pin Included

Yes

Title

Wiseco - Chevrolet, Big Block, 4.310 in. Bore, Piston

Title - Web

Professional Chevy Big Block Piston - 4.310 in. Bore - 1.270 .in CH, 48.40 CC
