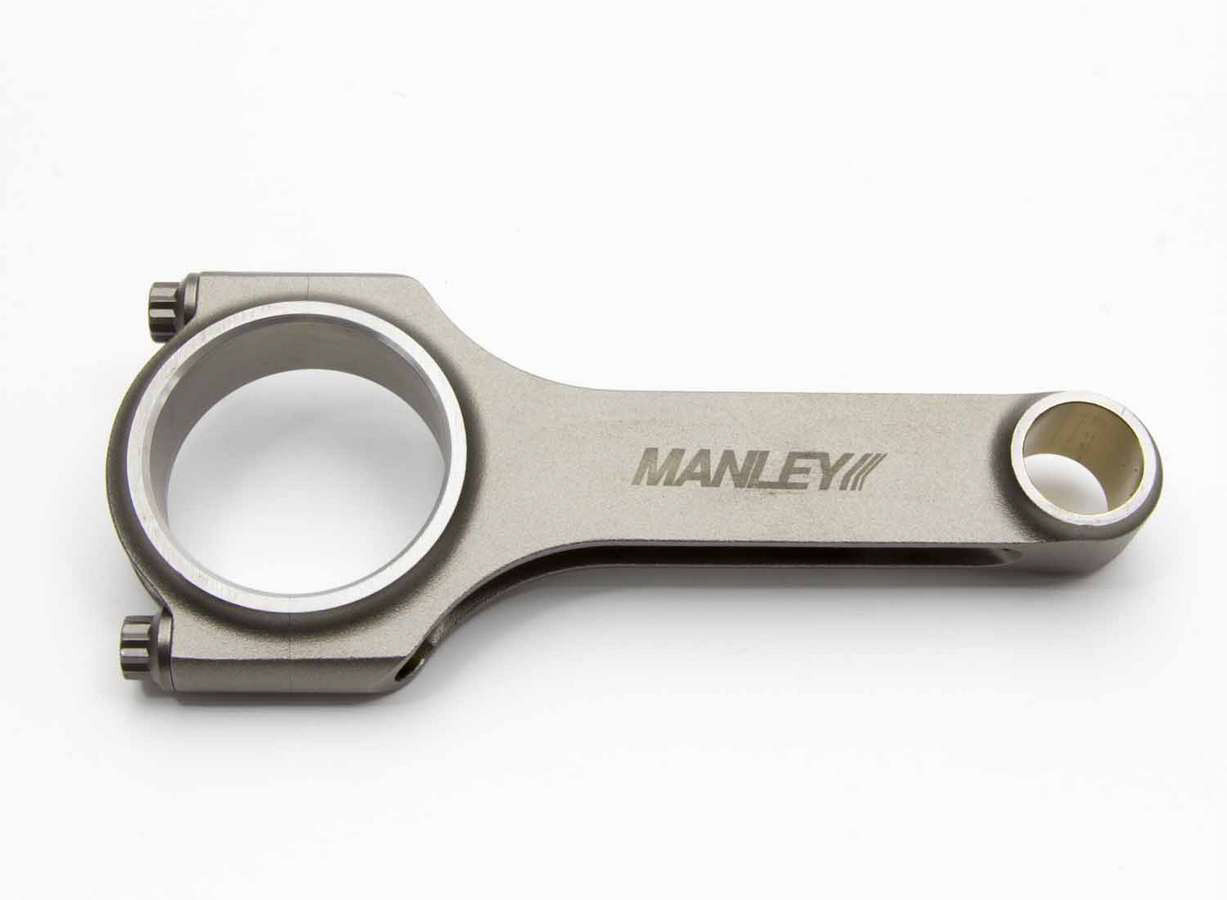

Manley 14054-8 H-Beam Steel Connecting Rod Set 6.000 In Small Block Chevy

Manufacturer

Picture for manufacturer Manley

Part Number

14054-8
9 reviews
Sale Price

$865.21

2 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 14054-8 H-beam connecting rod set delivers exceptional strength and durability for high-performance Small Block Chevy engine builds. These rods are forged from premium 4340 aircraft-quality steel alloy and feature a robust H-beam design that provides an optimal strength-to-weight ratio for demanding applications.

Construction and Features:

  • Forged from 4340 steel alloy with heat treatment for maximum strength
  • H-beam design fully machined to create the lightest, strongest rod possible
  • Shot-peened after machining to Mil specs and 100% magnafluxed for quality assurance
  • Compact uniform-grain structure provides ultimate strength and reliability
  • Wrist pin and big end bores honed to +/- 0.0002 in. tolerance
  • Bronze alloy bushing in wrist pin end for floating pin applications
  • ARP 8740 chromoly steel rod bolts (7/16 in. diameter, 180,000 psi tensile strength)
  • Weight-matched to within 2 grams per set for precise balance
  • Narrow cap design with polished, shot-peened beams

Specifications:

  • Center-to-center length: 6.000 inches
  • Rod journal diameter: 2.100 inches
  • Big end bore diameter: 2.2250 inches
  • Pin end bore diameter: 0.928 inches
  • Shot-peened finish
  • Designed for racing and high-performance applications

This set includes 8 connecting rods and is rated for engines producing up to 725 flywheel horsepower at 8,000 RPM (drag race applications up to 750 HP). These rods are finished to the same exacting tolerances and high quality standards as Manley's premium Sportsmaster and Pro series, making them an excellent choice for serious Small Block Chevy performance builds.

Products specifications

Advertised Horsepower Rating (hp)

700 hp

Advertised RPM Rating

8,000 rpm

Approximate Connecting Rod Weight (g)

705

Balanced

No

Big End Bore Diameter (in)

2.100 in.

Cap Retention Style

Cap screw

Clearanced for Stroker

No

Connecting Rod Beam Style

H-beam

Connecting Rod Bolt Brand

ARP

Connecting Rod Bolt Diameter

7/16 in.

Connecting Rod Bolt Head Style

12-point

Connecting Rod Bolt Material

8740 chromemoly steel

Connecting Rod Finish

Shot-peened

Connecting Rod Length Center To Center (in)

6.000 in.

Connecting Rod Material

Forged 4340 steel

Fastener Yield Strength (psi)

160,000 psi

Magnafluxed

Yes

Notes

Custom pistons required when using longer than stock connecting rods. Designed for racing use only.

Pin End Bore Diameter

0.928 in.

Pin End Bore Diameter (in)

0.928 in.

Quantity

Sold as a set of 8.

Remanufactured

No

Rod Journal Diameter (in)

2.100 in.

Tool

Stroker Combinations

Weight Matched Set

Yes

Wrist Pin Style

Floating
