MSD 8501 Ultimate HEI Ignition Conversion Kit for GM HEI Distributors

Manufacturer

Part Number

8501
Sale Price

$373.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MSD 8501 Ultimate HEI Kit is a complete performance ignition upgrade designed to transform your early model GM High Energy Ignition (HEI) distributor into a high-output performance unit. Every component in the kit is engineered to work together for maximum spark output, improved timing accuracy, and stronger ignition performance across the entire RPM range.

At the heart of the kit is MSD's HEAT Digital 8.5-amp performance module (PN 83647) — a direct plug-in replacement for the factory 4-pin HEI module. This module features special circuitry that produces 50% higher coil drive currents than a stock module, resulting in significantly higher spark energy at racing RPM. The module also includes a built-in adjustable rev limiter for added engine protection.

By precisely matching the included coil's specifications to the module, MSD achieves exceptional high-speed coil saturation for full power at high RPM with no drop-off in spark energy as engine speed climbs. Maximum coil output reaches up to 42,000 volts.

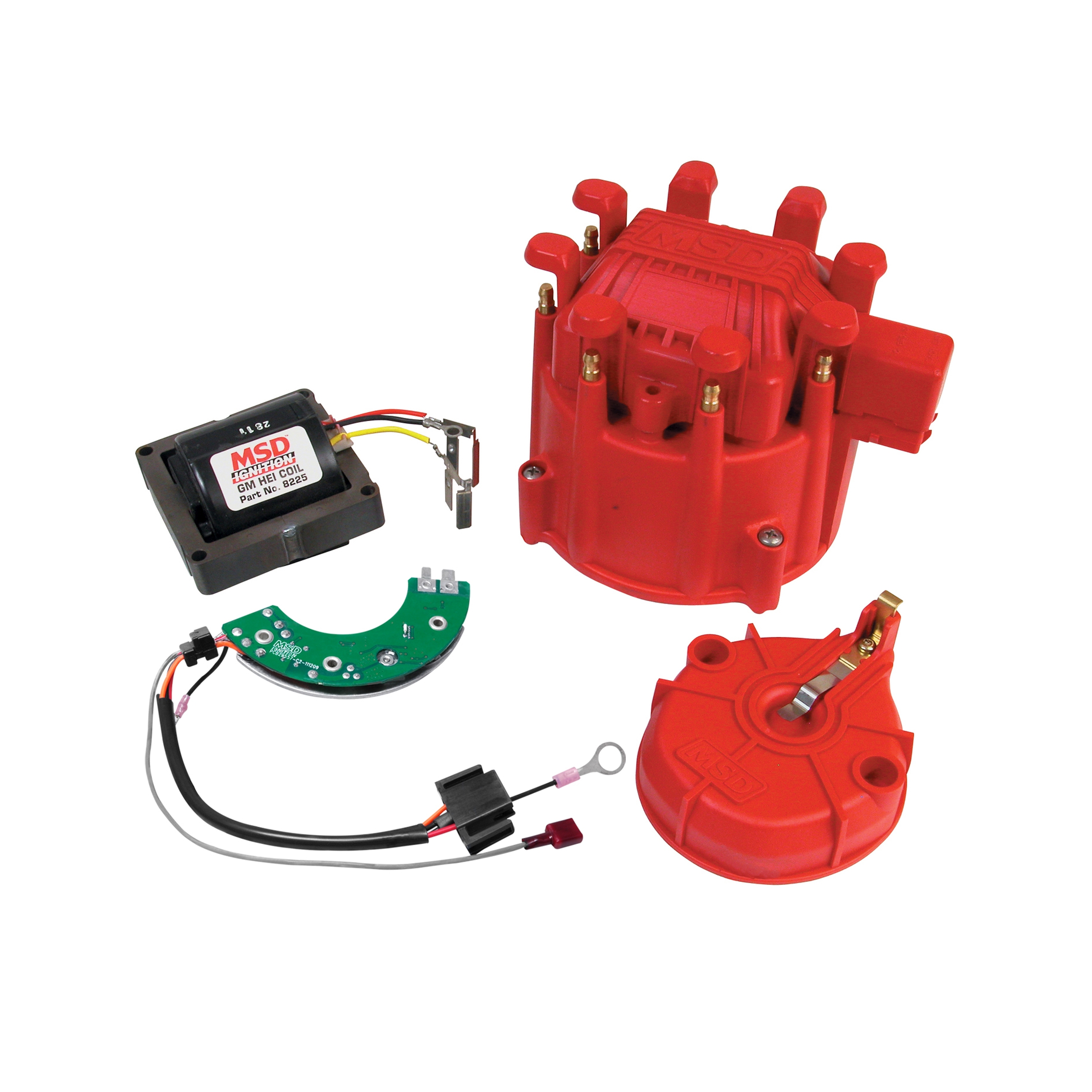

Kit Contents:

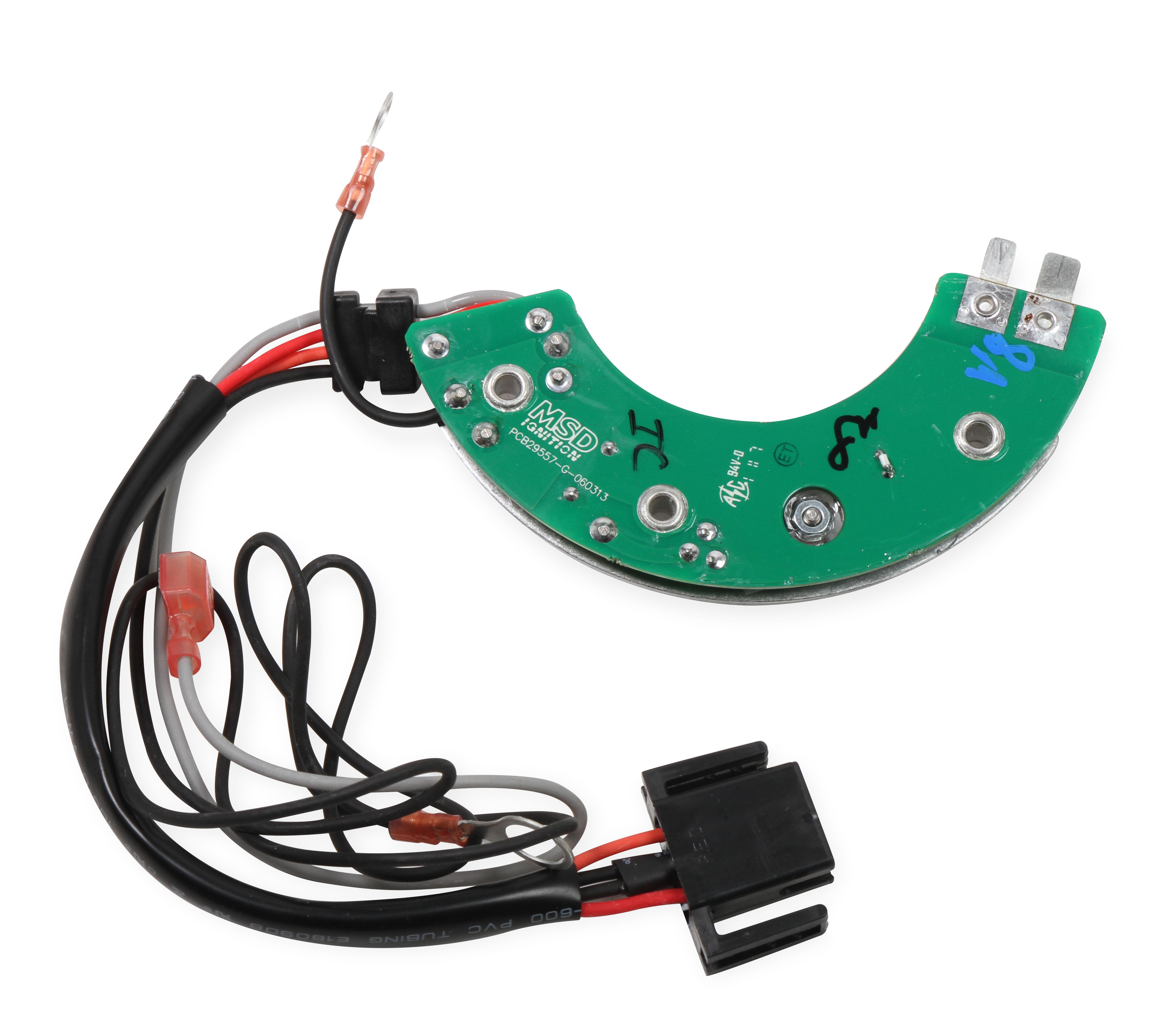

  • HEAT Digital HEI Module — PN 83647, 8.5-amp, 4-pin direct plug-in replacement

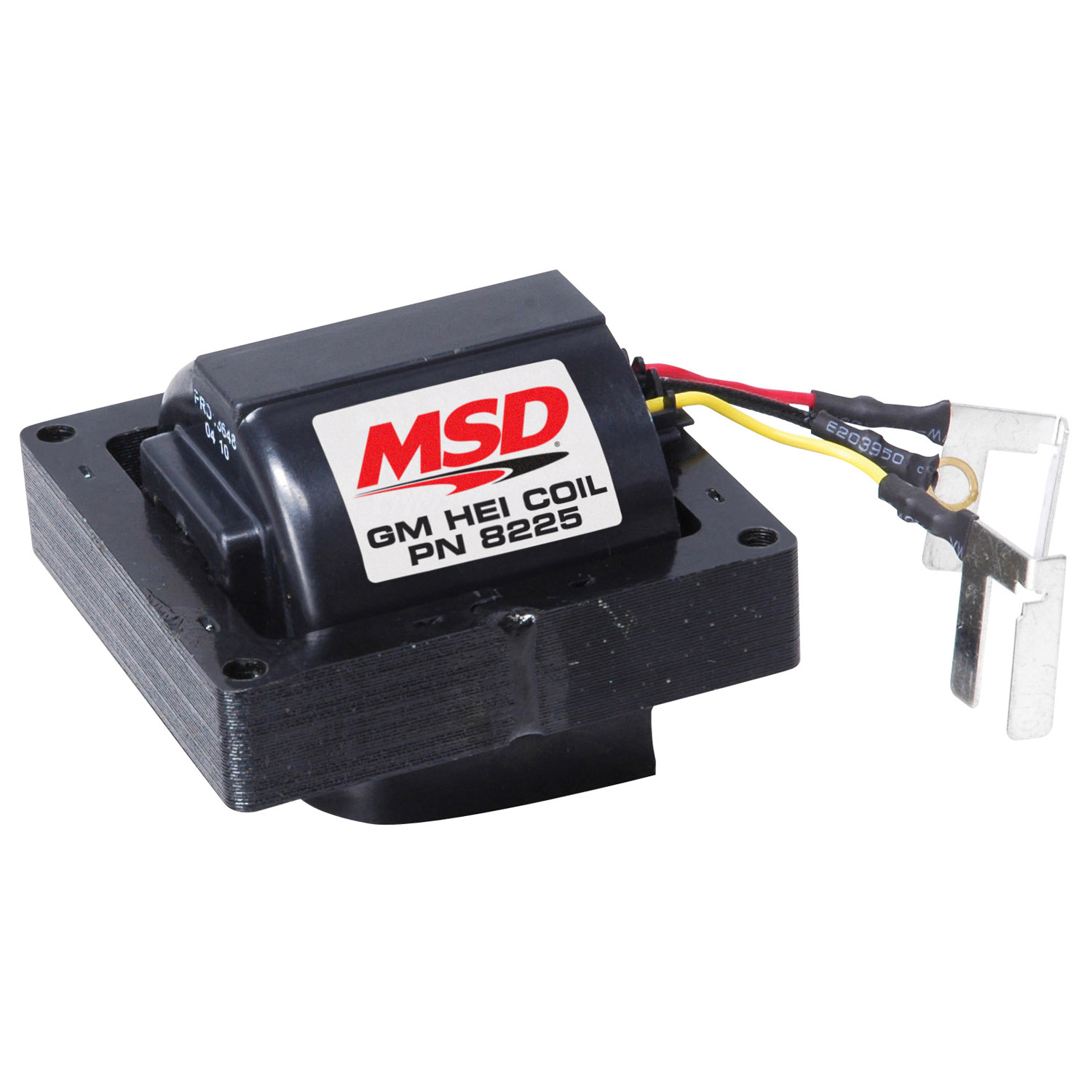

  • In-Cap HEI Coil — PN 8225, matched to the module for maximum voltage and energy

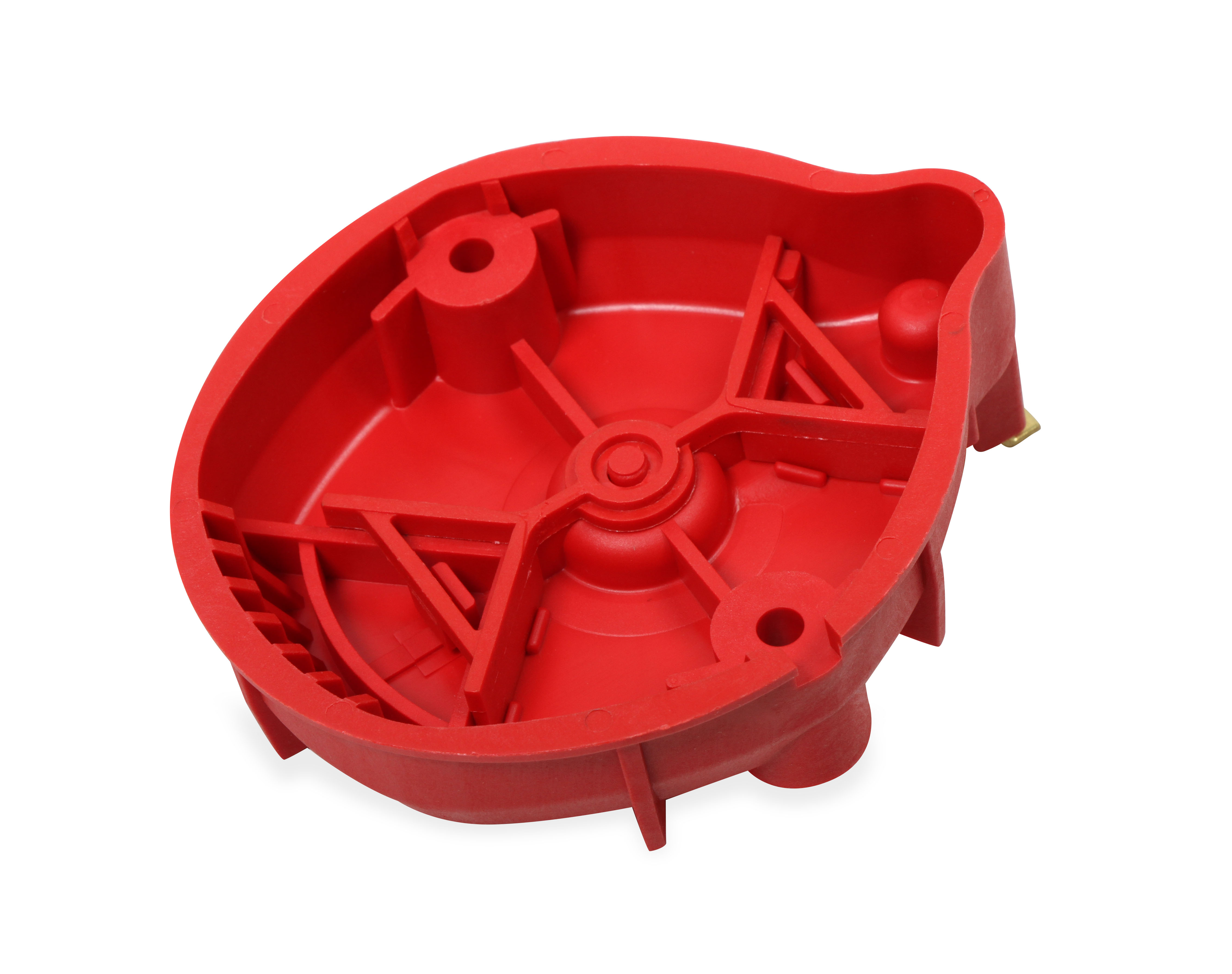

  • Distributor Cap — PN 84111, molded from DuPont Rynite for high dielectric strength, red finish with brass terminals to resist carbon tracking

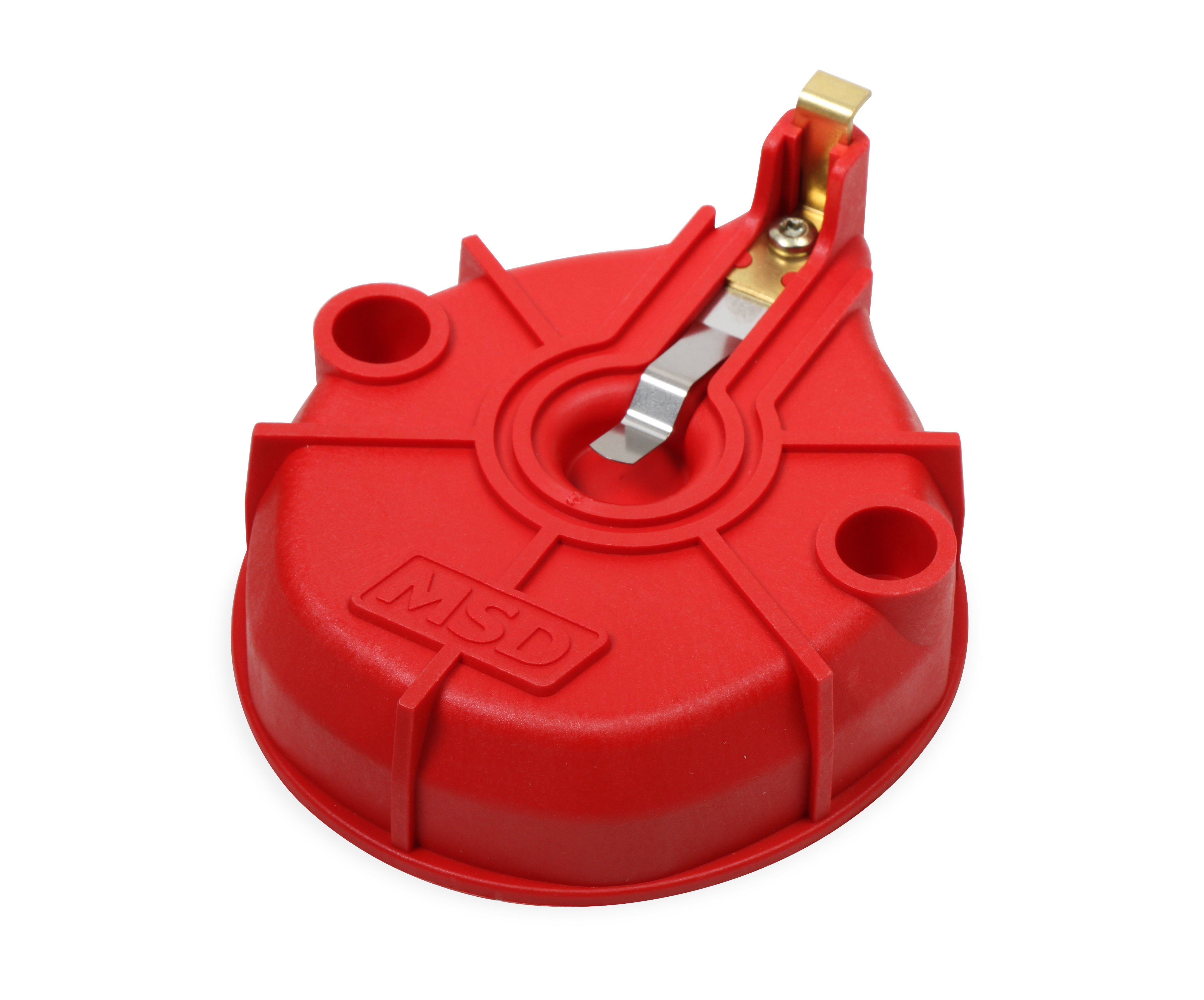

  • Rotor — PN 84101, heavy-duty performance rotor
  • Coil Dust Cover — PN 8410-11, black plastic dust cover

Key Features:

  • 50% higher coil drive current versus stock HEI module
  • Up to 42,000 volts maximum coil output
  • Exceptional high-speed coil saturation for consistent power up to 7,000+ RPM
  • Brass terminal cap for superior conductivity and burn-through resistance
  • DuPont Rynite cap material for excellent dielectric strength and carbon tracking resistance
  • Built-in adjustable rev limiter
  • CARB-compliant — legal for use on emissions-controlled vehicles in all 50 states (EO# D-40-43)
  • For use with non-computerized 4-pin module HEI distributors only

The MSD 8501 Ultimate HEI Kit is sold as a complete set and installs directly into factory HEI distributor housings without modification, making it an ideal performance upgrade for street, strip, and track applications.
