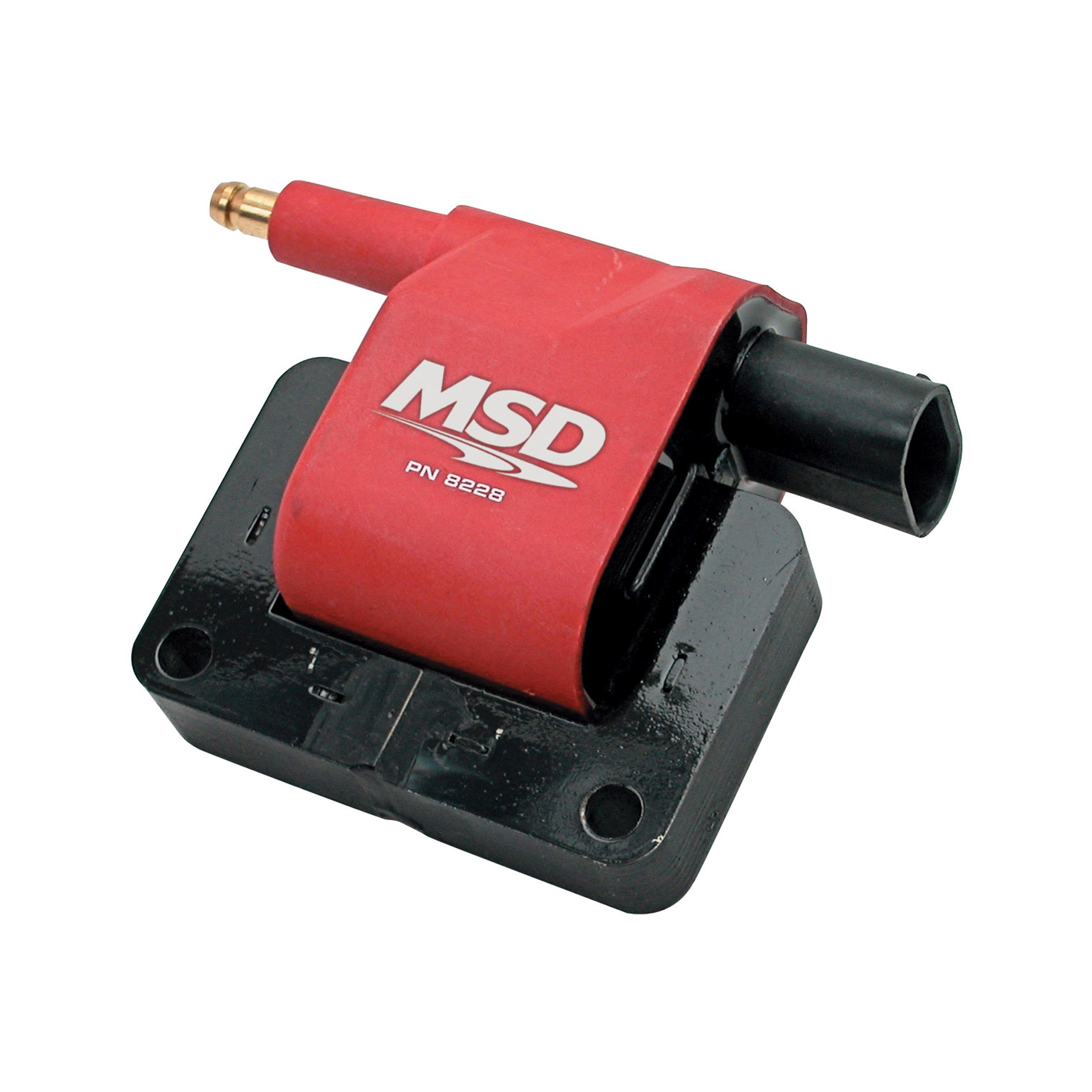

MSD 8228 Blaster Ignition Coil E-Core Red 40,000V for Dodge

The MSD 8228 Blaster Ignition Coil is a high-performance, direct-fit replacement coil engineered for late model Chrysler and Dodge applications. Built with improved materials and a specialized 70:1 winding ratio paired with lower primary resistance, this E-core coil delivers a maximum output of 40,000 volts — a significant step up over factory ignition coils. The result is a stronger, more consistent spark that promotes more complete fuel combustion, supporting smoother idle quality and improved mid-range RPM performance.

The 8228 features a square, epoxy-filled E-core construction finished in MSD's signature red. It uses a 2-pin Mopar connector for a direct plug-in fit with no adapter required and no ignition box needed for operation. It is compatible with both stock ignition systems and MSD ignition controls, making it an ideal upgrade whether you're keeping the factory setup or running an MSD ignition box. For simplified wiring when used with an MSD Ignition Control, MSD Universal Harness PN 8873 is recommended.

Key Features:

• Direct performance replacement for late model Dodge/Chrysler vehicles
• Maximum output of 40,000 volts for a stronger, more reliable spark
• 70:1 turns ratio and 1.2-ohm primary resistance for maximum voltage build-up
• 3.9 mH inductance and 13.7K ohm secondary resistance
• Square E-core design with epoxy internal construction for durability
• 2-pin Mopar connector — no adapter required
• Compatible with stock ignition systems and MSD Ignition Controls
• Finished in MSD signature red color
• CARB E.O. Approved (CARB E.O. No. D-40-37) — legal for sale and use on emissions-controlled vehicles in all 50 states
• Sold individually
• Manufacturer's Limited 1-Year Warranty

For maximum ignition performance gains, pair the MSD 8228 with an MSD Ignition Control and the MSD Universal Harness PN 8873 for simplified installation.
