Wiseco Pistons K542M815 Pro Tru Forged Piston Set Sport Compact 81.5mm

(1999-2001 Honda Civic Si; 1994-1997 Honda Civic del Sol VTEC; 1990-2001 Acura Integra)

Manufacturer

Part Number

K542M815
Black Friday Price

$746.99

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

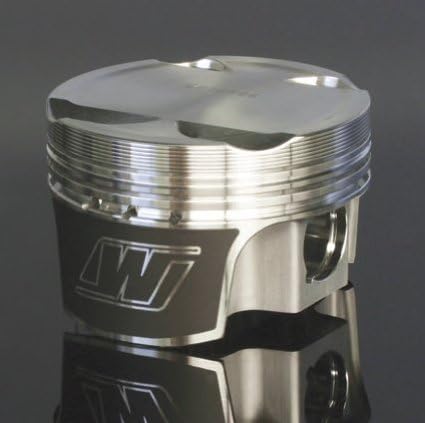

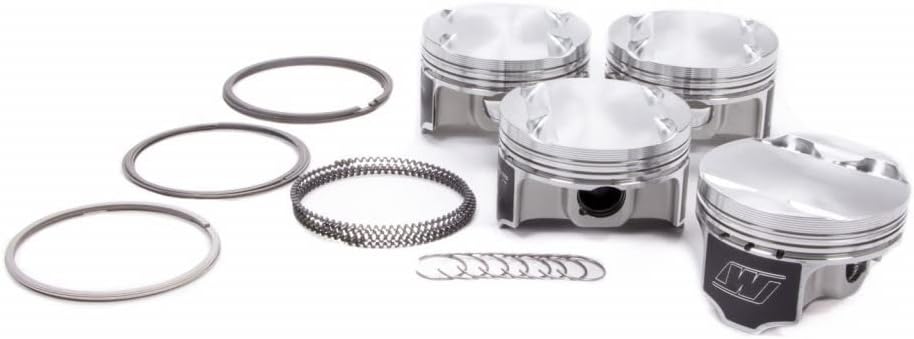

The Wiseco K542M815 is a high-performance forged piston set designed for Honda B18 engines, featuring an 81.50mm bore, 29.85mm compression height, and 0.8268-inch pin diameter. This complete 4-piston kit is engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength, making it ideal for turbocharged and naturally aspirated builds.

Key Features:

  • ArmorGlide® skirt coating provides seizure resistance, friction reduction, and quieter operation
  • Each piston weighs 285 grams for optimal strength-to-weight ratio
  • Includes 4130 chrome moly wrist pins and matching piston ring set
  • Gas nitrided top ring for excellent performance with turbocharged engines and Napier 2nd ring for superior oil control
  • Plasma moly 1/16, 1/16, 3/16 pre-gapped ring packages provide excellent seal, friction reduction, and long life
  • Fully machined crown with flat-top design (-4cc volume)
  • 21mm pin diameter with recommended ring set 8150XX

These American-made pistons are forged and machined by skilled Ohio craftsmen with state-of-the-art forging presses and CNC machines, using dedicated forgings specific to the final piston shape for superior strength and reduced weight compared to industry standards. The Pro Tru line offers exceptional value in forged racing pistons, suitable for street performance and competition use.

Applications: Compatible with Honda/Acura B-Series engines including B16A, B17A1, B18A1/B1, and B18C variants. Compression ratios vary from 8.8:1 to 10.2:1 depending on engine configuration.

Products specifications

Fits

1999-2001 Honda Civic Si; 1994-1997 Honda Civic del Sol VTEC; 1990-2001 Acura Integra

Bore

81.5mm

Bore (in)

3.209 in.

Bore (mm)

81.500mm

Comp Height

29.85

Comp Ratio

9.5:1

Compression Distance (in)

1.175 in.

Dome Volume

-2.4 FT

File Fit

No

Gapless

No

Gram Weight

276

Oil Ring Material

Stainless steel

Oil Ring Tension

Standard

Oil Ring Thickness

2.8mm

Pin Diameter (in)

0.827 in.

Piston Head Volume (cc)

+4.00cc

Piston Material

Forged aluminum

Piston Style

Flat top, with two valve reliefs

Quantity

Sold as a kit.

Rod

138

Second Ring Facing Material

Phosphate coated

Second Ring Material

Cast iron

Second Ring Thickness

1.2mm

Stroke

87.2

Top Ring Facing Material

Gas nitrided

Top Ring Material

Steel

Top Ring Thickness

1.0mm

Wrist Pin Style

Press-fit or floating

Piston Quantity

4

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

81.50

Make

Honda

Industry

Automotive

Product Market

Sport Compact

Engine Type

ICE

Engine

B18

Title

Wiseco - Honda, B18, 81.50 mm Bore, Piston Set of 4

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Wrist Pin Outer Diameter

0.8268

Forging Type

FLAT

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Second Compression Ring Thickness

1.2

Top Compression Ring Thickness

1

EBAY Category ID

33623

Engine - Web

B Series

Engine Detail

Honda B18

Make - Web

Honda

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Compression Height

29.85

Piston Volume

-2.40

Title - Web

Professional Honda B18 Piston Set of 4 - 81.50 mm Bore - 29.85 mm CH, -2.40 CC
