MSD 7761 Advanced RPM Control Module (ARC) Power Grid Traction Control

Manufacturer

Part Number

7761
Black Friday Price

$898.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

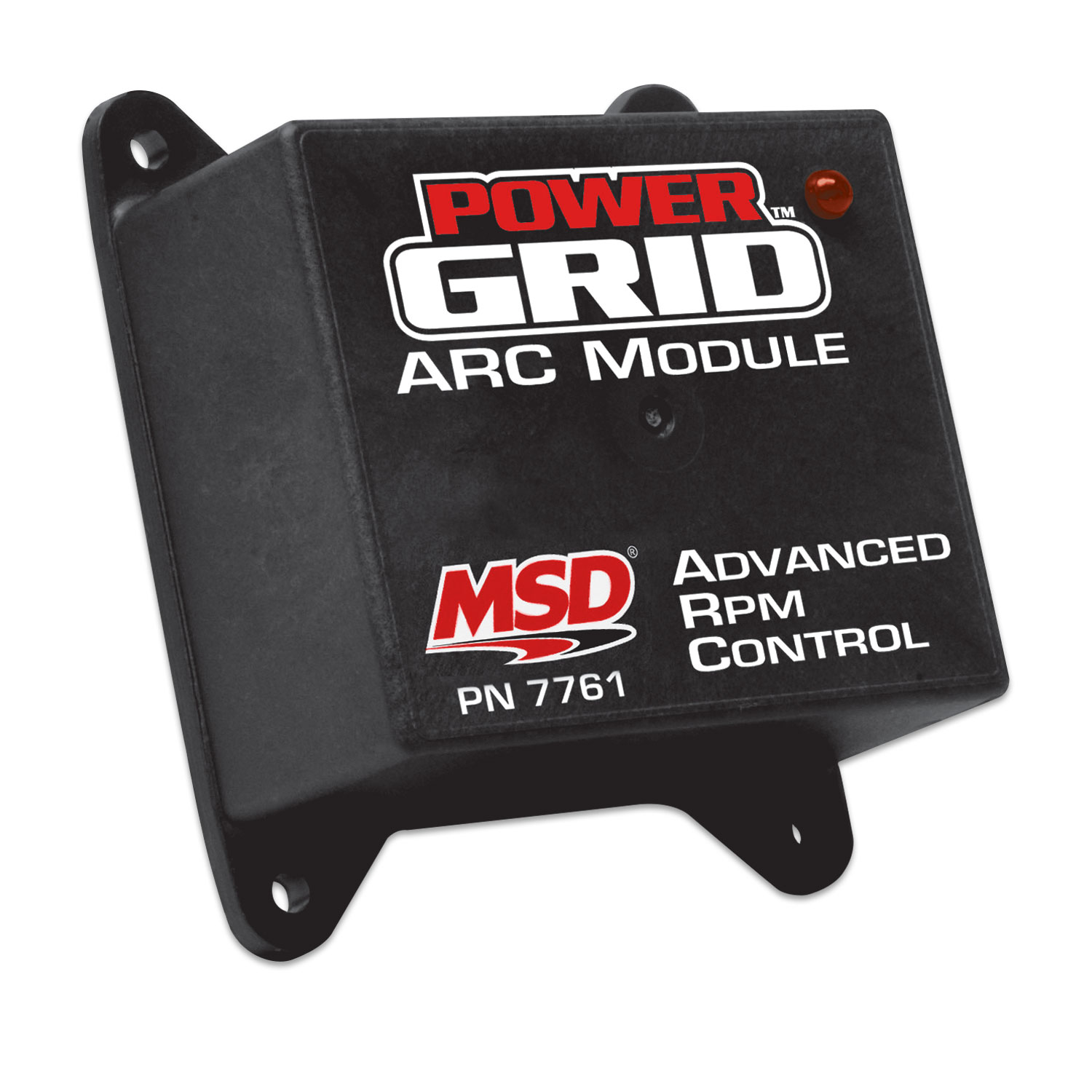

The MSD 7761 Advanced RPM Control (ARC) Module is a precision traction management add-on designed for use with the MSD Power Grid Ignition System Controller. By monitoring driveshaft RPM and plotting it against a predetermined curve, the ARC module gives racers the ability to maintain consistent, repeatable passes from launch to finish line.

The module sets RPM limits using two programmable methods: based on slew rate (rate of RPM acceleration) or based on elapsed time since launch. When engine or driveshaft RPM climbs at an undesirable rate, the module automatically retards ignition timing and/or applies a rev limit to prevent excessive wheel speed and loss of traction.

Key Features:

  • Controls wheel speed by sensing driveshaft RPM and matching it to a programmed curve
  • Sets RPM limits based on slew rate (RPM acceleration) or time-since-launch

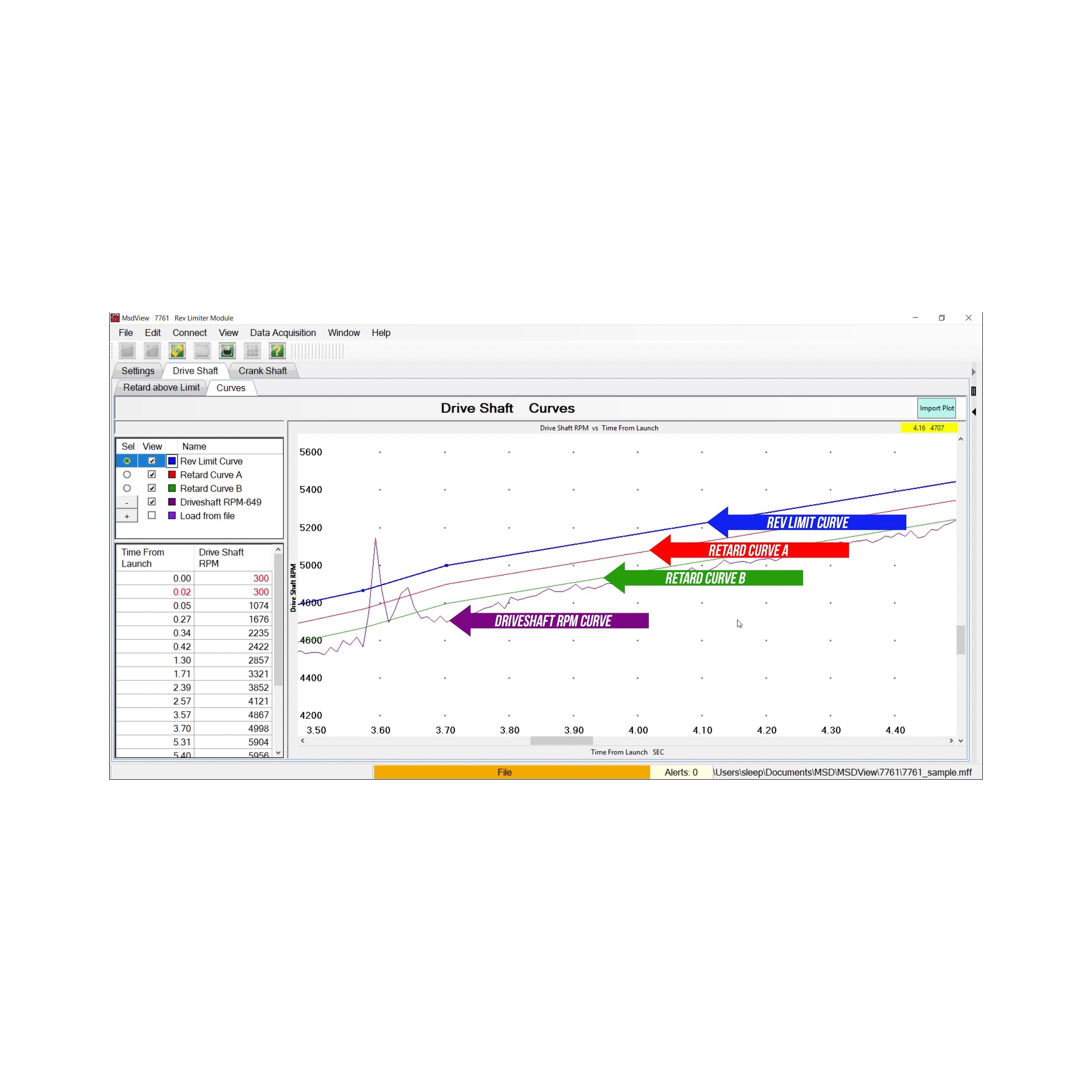

  • Supports up to 3 independent ignition timing retard curves plus a dedicated rev limit curve
  • Can apply ignition retard, RPM limiting, or both — independently or simultaneously
  • RPM resolution controllable down to a hundredth of a second via MSD View software
  • Plugs directly into the MSD CAN-Bus Hub (PN 7740) — no wire cutting required
  • Fully programmable via MSD View software (USB, Windows-based with micro SD data logging)
  • Compatible with Racepak data recorders and Racepak products via CAN-Bus

Installation Notes:

  • Requires a 4-Connector CAN-Bus Hub (PN 7740) — sold separately
  • A driveshaft sensor is required; MSD recommends an 8-magnet driveshaft collar for maximum data resolution
  • Compatible driveshaft sensor: Racepak Hall Effect Sensor PN 800-SS-MSC-5 with Racepak 8-Magnet Split Collar
  • Module must be securely mounted near the MSD CAN-Hub; do NOT cut CAN-Bus connector wires
  • Includes 2-pin and 3-pin data recorder output connectors in the parts bag

The MSD 7761 ARC Module integrates seamlessly into the Power Grid ecosystem, bringing advanced traction control and engine management capabilities to serious drag racers looking for maximum consistency and performance on every pass.
