Moroso 20201 Street/Strip Oil Pan Small Block Chevy 1980-85 Two-Piece Seal

(GMC G2500 1980-81, 1983-84, K1500 1981-82, C1500 1980, Jimmy 1980-85, K3500 1980, K1500 Suburban 1982-85, G3500 1980-81, 1983-84 + 30 more models)

Part of: Moroso Oil Pan

Other options in this family: Moroso 20910 Moroso 20946 Moroso 20967 Moroso 20911 Moroso 20719

Manufacturer

Picture for manufacturer Moroso

Part Number

20201
5 reviews
Sale Price

$357.31

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

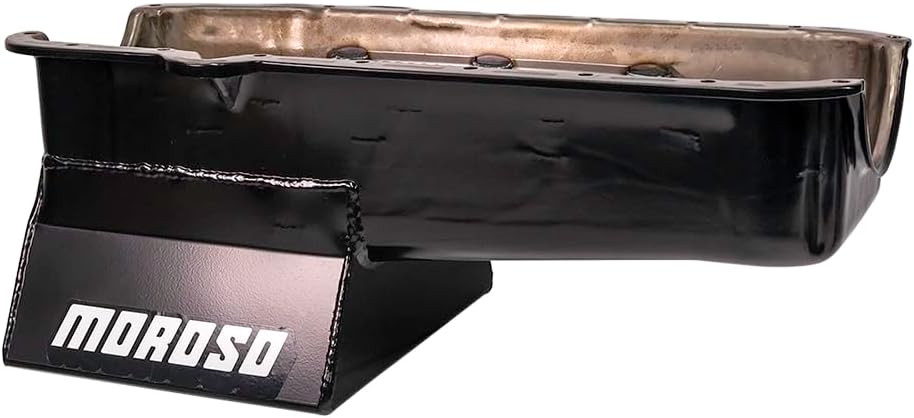

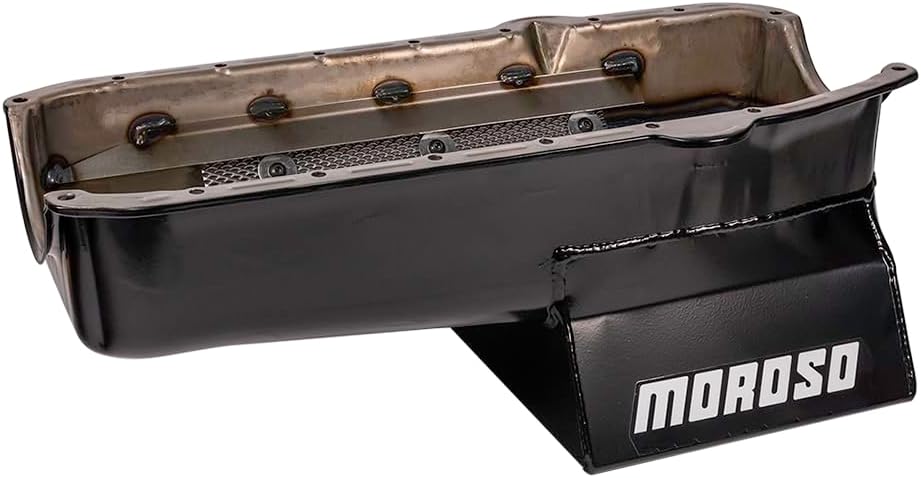

The Moroso 20201 is a steel street/strip oil pan designed for 1980-1985 Small Block Chevy engines with two-piece rear main seals and passenger-side dipstick configurations. This wet sump pan features a 7-quart capacity and measures 8-1/4 inches deep, providing enhanced oil control for high-performance applications.

Key Features:

  • Black powder coat finish for corrosion resistance
  • Kicked-out T-sump design clears 4.125-inch stroke with most steel rods

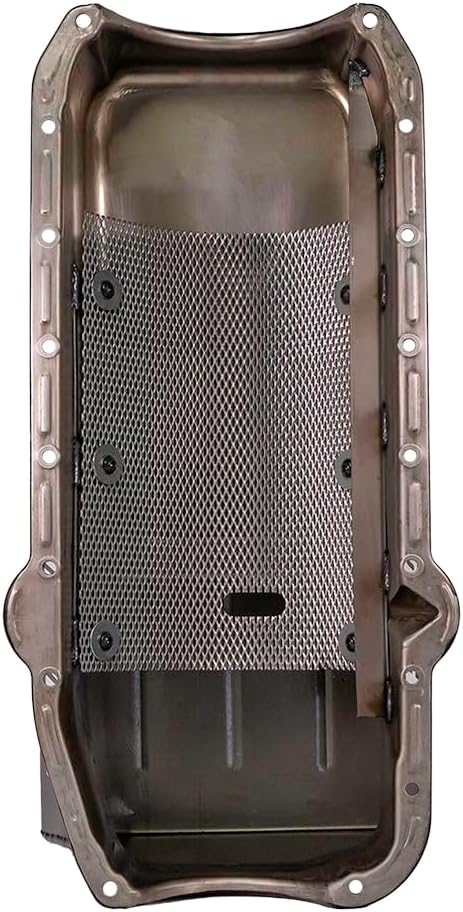

  • Integrated crank scraper and uni-directional windage screen
  • Trap door baffle for improved oil control during acceleration and cornering
  • Fits 4-bolt Dart, GM, and Merlin main caps
  • Compatible with Dart SHP blocks
  • Includes magnetic drain plug

This pan fits most chassis except 1962-67 Chevy II, V8 Vega, and Monza applications. The T-sump design provides consistent oil pressure under hard braking and acceleration, making it ideal for street/strip dual-purpose builds. Compatible with most starters and flywheel combinations.

Products specifications

Fits

GMC G2500 1980-81, 1983-84, K1500 1981-82, C1500 1980, Jimmy 1980-85, K3500 1980, K1500 Suburban 1982-85, G3500 1980-81, 1983-84, C2500 Suburban 1980, 1982, G1500 1980-81, 1983-84, Caballero 1980-85; Chevrolet Camaro 1980-85 + 26 more models

Baffled

Yes

Capacity

7 Quart

Color

Clear Zinc

Crank Scraper Included

Yes

Depth

8.25"

Dipstick Location

Passenger side

Dipstick Provision

Yes

Drain Plug Thread Size

1/2-20 in.

Kicked Out

Yes

Kickout Position

Driver and passenger side

Maximum Stroke with OE Rod

3.800 in.

Oil Pan Capacity

7 quarts

Oil Pan Depth (in)

8.250 in.

Oil Pan Finish

Clear zinc

Oil Pan Material

Steel

Pickup Included

No

Quantity

Sold individually.

Rear Main Seal Style

2-piece

Stroker Clearanced

Yes

Sump Style

Wet
