Wilwood 260-9439-P 7/8" Bore Tandem Master Cylinder Ball Burnished

Manufacturer

Part Number

260-9439-P
Black Friday Price

$315.52

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

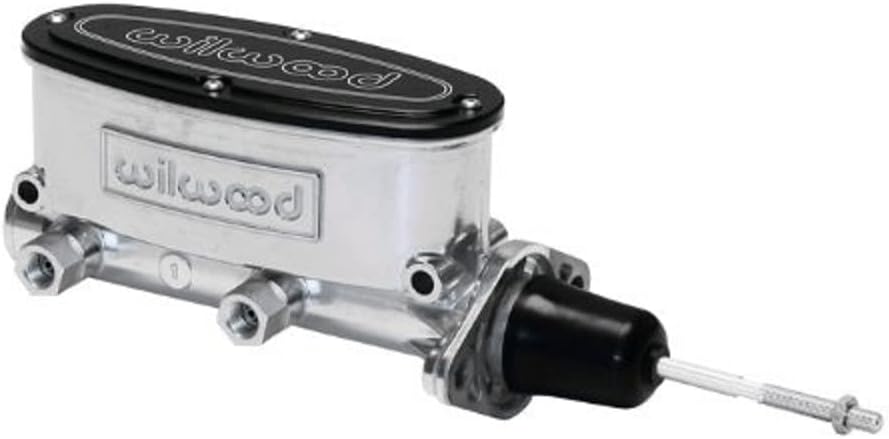

The Wilwood 260-9439-P is a high-performance 7/8" bore tandem aluminum master cylinder featuring a premium ball burnished finish. Designed primarily for manual brake applications, this lightweight master cylinder is machined from high-pressure die castings and includes a pushrod for complete installation.

Key Features:

  • 7/8" bore diameter for precise brake pressure control
  • Premium ball burnished finish for corrosion resistance and smooth operation
  • Weighs only 3 lbs—75% lighter than most cast iron OE master cylinders
  • Designed for mount flanges from 3.22" to 3.40" (fits most domestic cars and trucks from mid-1960s to present)
  • Dual fluid outlet ports on both sides of the bore for flexible installation
  • 1.10" stroke length with 2:1 volume ratio between primary and secondary chambers
  • Includes pushrod for manual brake system installation
  • High-pressure die cast aluminum construction for durability and weight savings

This master cylinder is engineered for drivers seeking a lightweight, high-quality replacement for stock cast iron master cylinders. The ball burnished finish provides enhanced surface hardness and corrosion protection while maintaining the natural aluminum appearance. Compatible with Wilwood combination proportioning valve kits (PN 260-13190 or 220-13189 for retrofit applications) for complete brake system optimization.

Products specifications

Bore

7/8in

Bowl Design

Dual

Brake Booster Included

No

Finish

Media Burnished

Master Cylinder Bore Size

7/8 in.

Master Cylinder Cap Included

Yes

Master Cylinder Finish

Polished

Master Cylinder Material

Aluminum

Master Cylinder Stroke

1.100 in.

Mounting Brackets Included

No

Mounting Flange Center to Center Distance (in)

3.22-3.40 in.

Mounting Hole Quantity

2 holes

Pushrod Included

Yes

Quantity

Sold individually.

Reservoir Finish

Polished

Reservoir Material

Alloy
