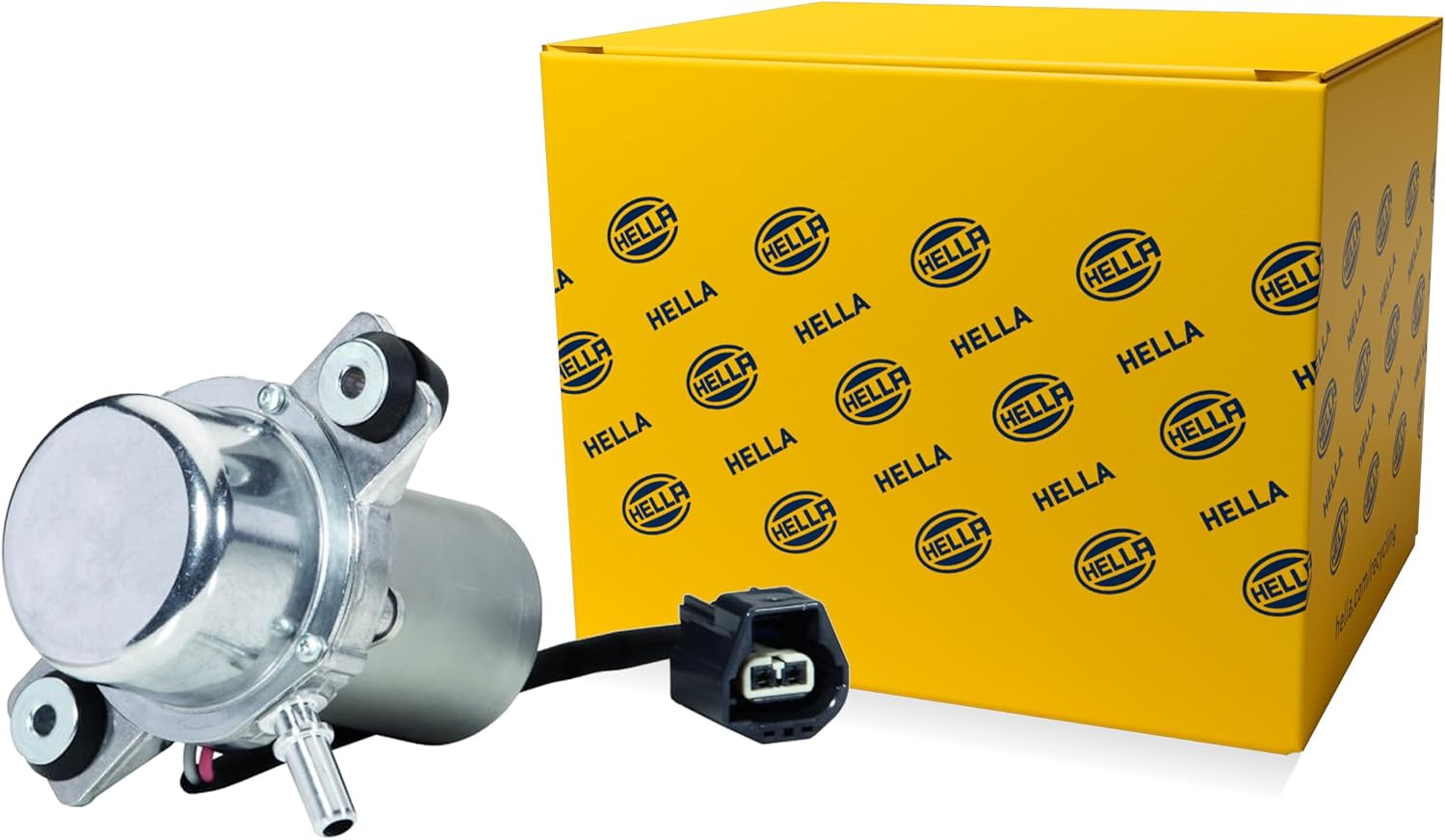

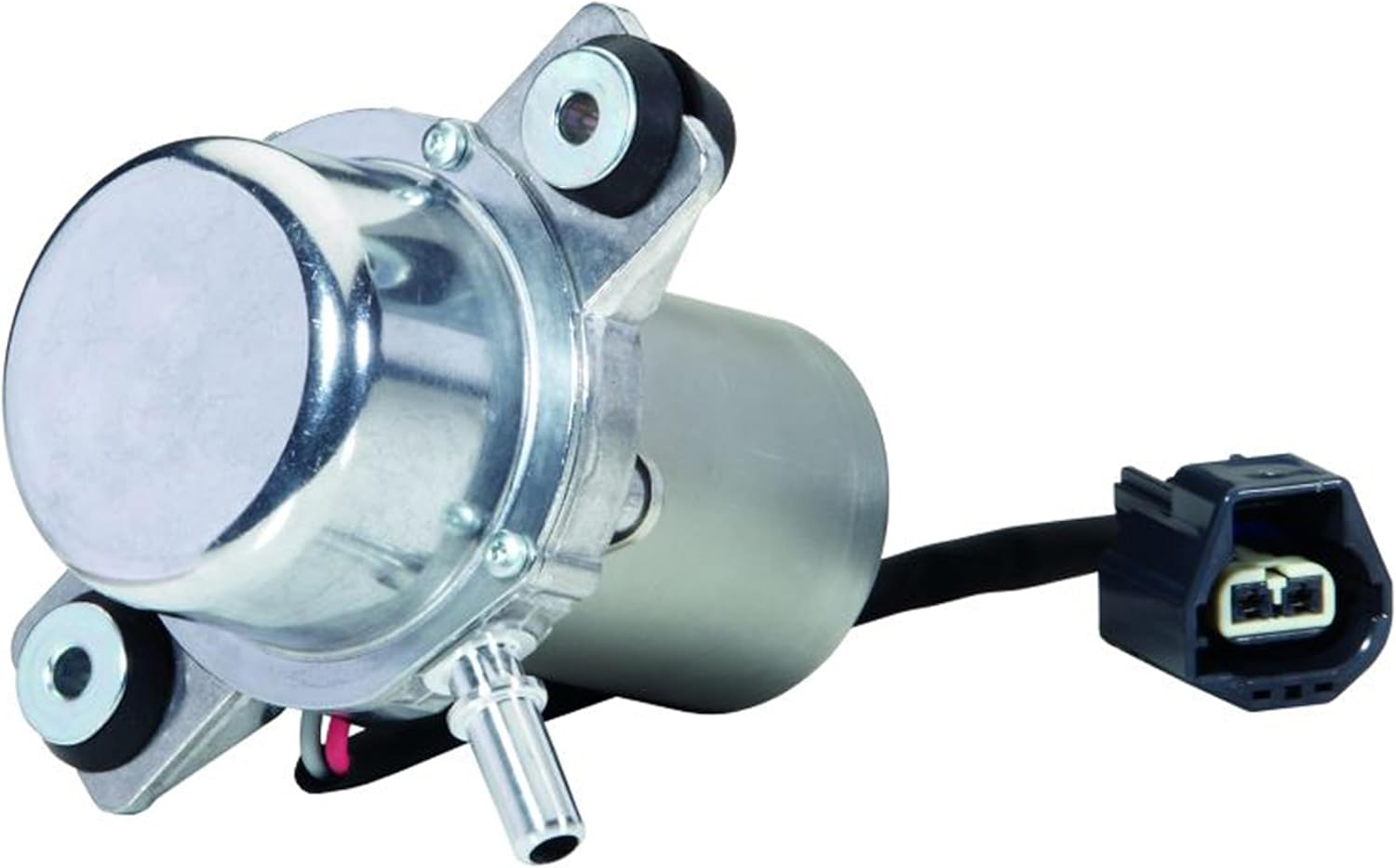

Hella 009428081 UP28 12V Electric Vacuum Pump for Brake Booster System

(2003-2011 Volvo XC90; 1999-2006 Volvo S80; 2001-2009 Volvo S60; 2003-2007 Volvo XC70; 2001-2007 Volvo V70; 2006-2013 Volvo C70 + 4 more models)

Part of: Hella Electric Vacuum Pump Brake Booster System

Other options in this family: Hella 009428771

Manufacturer

Part Number

009428081
Black Friday Price

$167.61

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hella 009428081 UP28 Electric Vacuum Pump is a high-performance 12V electric vacuum pump designed to provide on-demand vacuum support for pneumatic brake booster systems. This maintenance-free pump is ideal for applications where the engine produces insufficient vacuum during specific driving conditions such as cold starts, high-altitude operation, or when air conditioning systems create additional load.

Key Features:

  • Operates at 10A @ 13VDC with simple on-off control via external switching
  • Achieves vacuum of 500 mbar in 5 seconds or less for rapid brake boost response

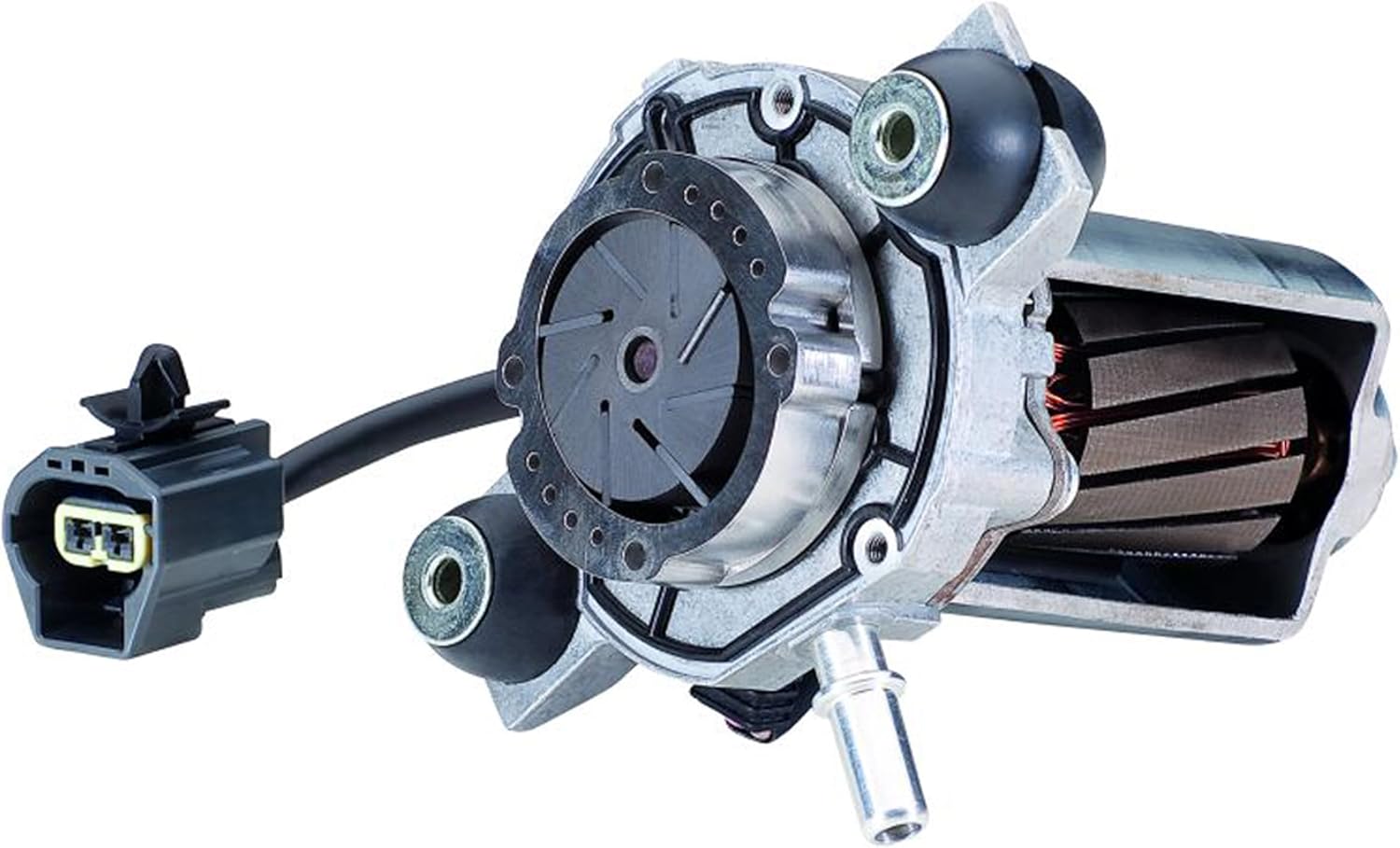

  • Rotary vane compressor design with approximately 1 kg (2.2 lbs) weight
  • Operating temperature range: -40°F to +248°F (-40°C to +120°C)
  • Compact dimensions: 4.8"H x 5.3"W (137mm x 124mm)
  • Dry-running system requires no connection to engine oil circuit
  • Rated for over 600 hours of operation
  • 2-pin electrical connection with engine compartment connector

Benefits:

  • Engine-independent vacuum generation with flexible mounting options (on-engine or off-engine)
  • Demand-oriented operation reduces energy consumption and supports emission reduction
  • Essential for hybrid and electric vehicle brake systems requiring conventional boosters
  • Compatible with water, ethylene-glycol solutions, transmission fluid, gasoline, diesel fuel, motor oil, and DOT 3/4 brake fluid

Hella has manufactured over 17 million electric vacuum pumps since 1999, establishing industry-leading expertise in brake system vacuum solutions. This OEM-quality pump replaces Volvo part numbers 31201707, 31317445, and 31317530.

Products specifications

Fits

2003-2011 Volvo XC90; 1999-2006 Volvo S80; 2001-2009 Volvo S60; 2003-2007 Volvo XC70; 2001-2007 Volvo V70; 2006-2013 Volvo C70; 2007-2013 Volvo C30; 2000-2011 Volvo S40; 2005-2011 Volvo V50; 2000-2004 Volvo V40

Operating Mode

Electric

Supplementary Article/Info 2

with damping

Number of Poles

2

Rated Voltage [V]

12

SVHC

7439-92-1; Lead
