Hella 004778001 Illuminated SPST Push/Pull Switch with 3 Interchangeable Lenses

Manufacturer

Part Number

004778001
Sale Price

$21.89

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

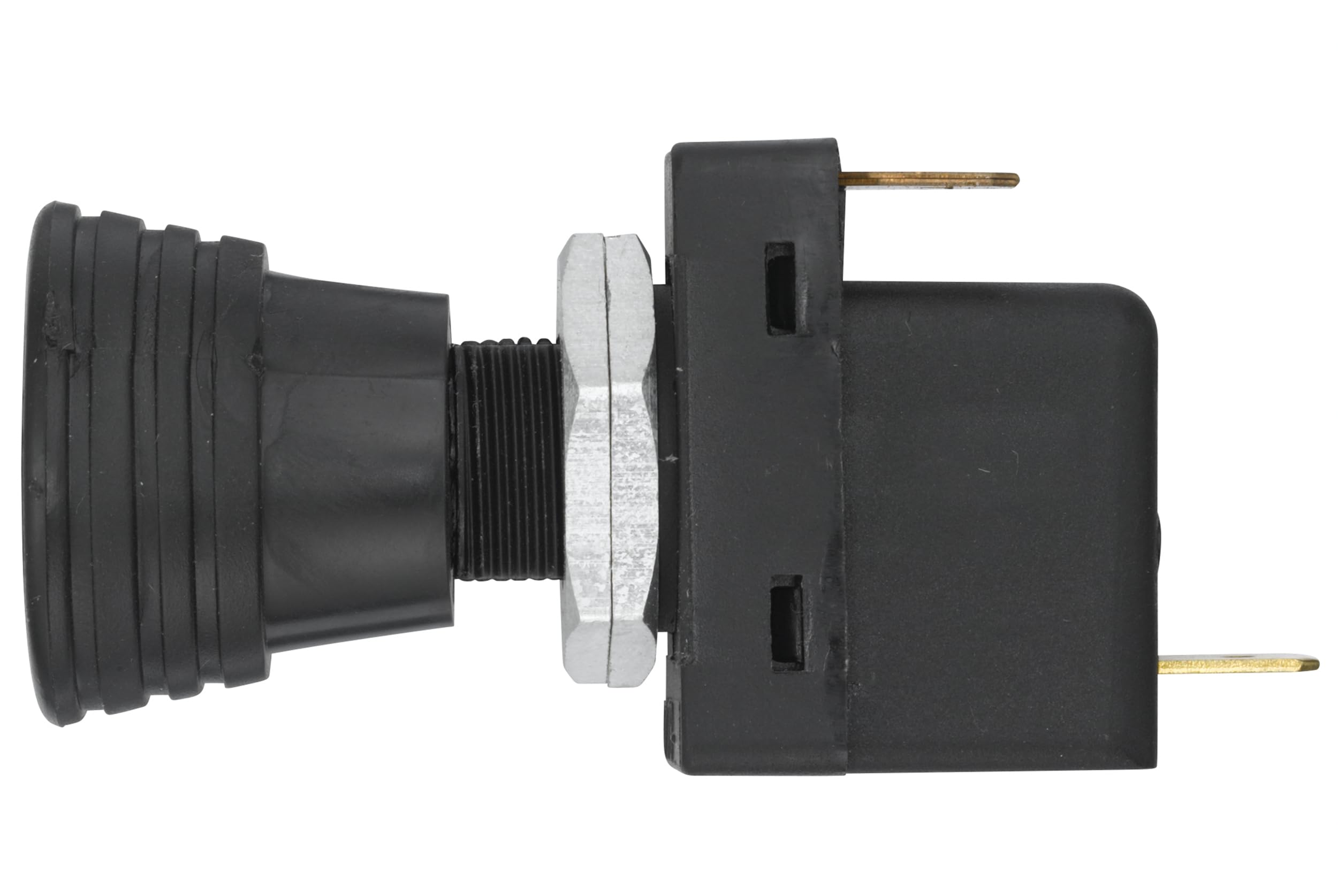

The Hella 004778001 is an illuminated single-pole, single-throw (SPST) push/pull On/Off switch designed for 12V electrical systems. Built to Hella's original equipment standards, this switch features a bolted panel-mount design with a 14.5mm (approx. 9/16 in.) mounting bore and three spade-style connectors for straightforward wiring.

Key Features:

  • SPST Push/Pull Operation: Simple On/Off control in a compact pull-knob format
  • Dual Illumination Modes: Dims when off for easy nighttime visibility; illuminates brightly when switched on

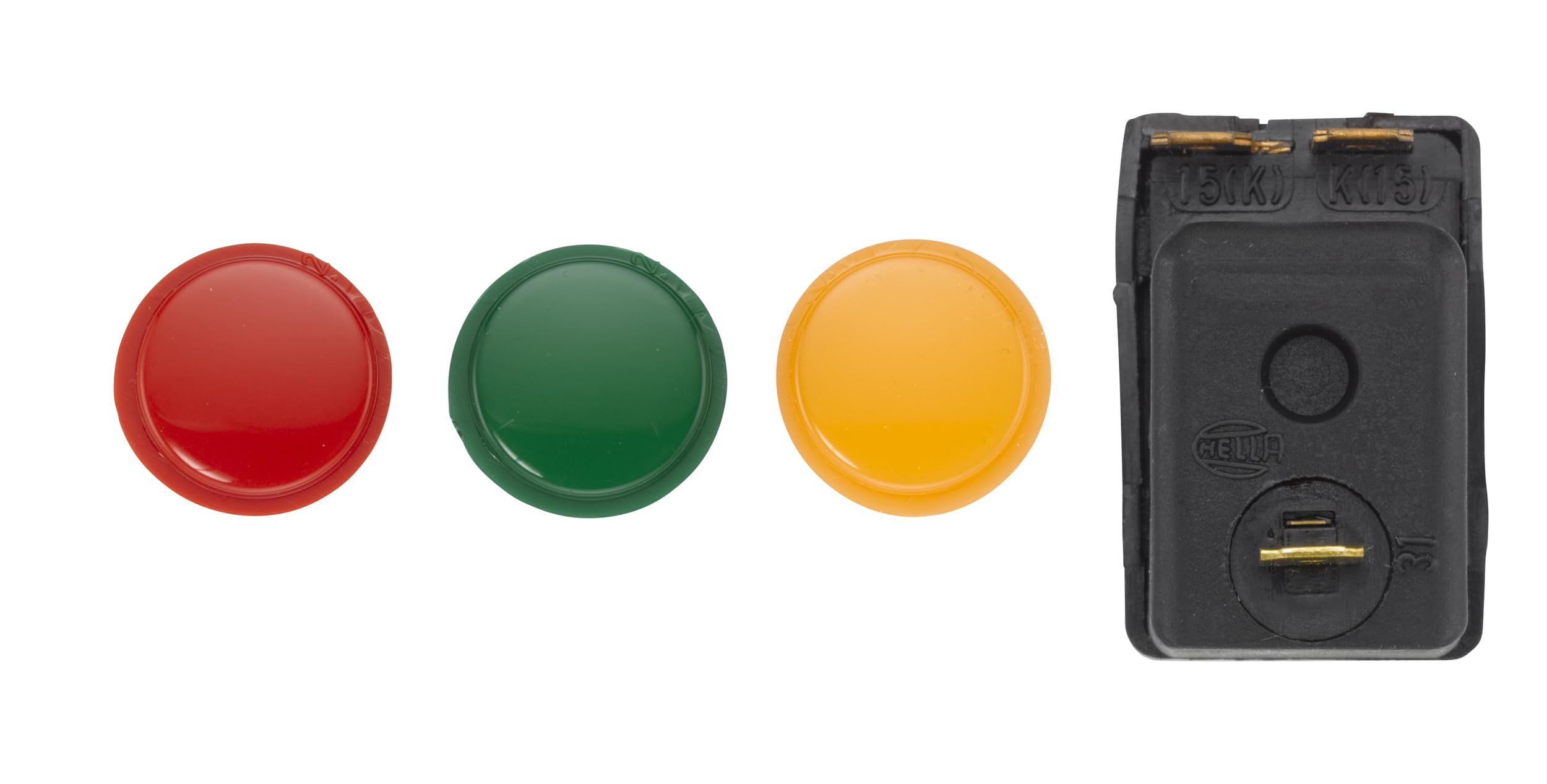

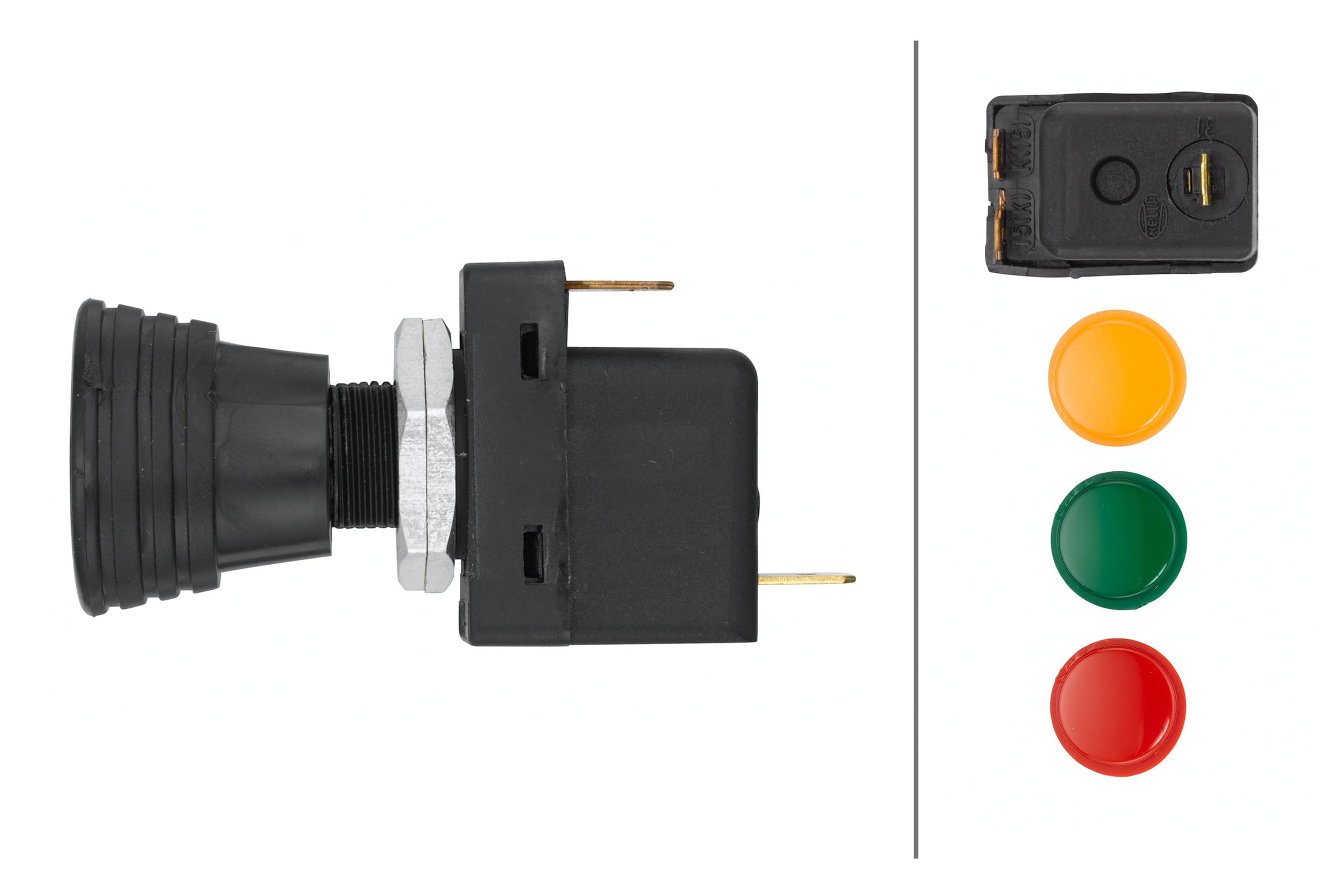

  • 3 Interchangeable Lenses Included: Choose from green, orange, or red lens covers to color-code your panel
  • 12V Rated: Designed for use in 12-volt automotive, marine, agricultural, and powersports electrical systems
  • Bolted Panel Mount: Secure, vibration-resistant installation through a 14.5mm bore panel cutout
  • 3 Spade Connectors: Standard blade terminals for easy harness integration
  • OEM-Grade Quality: Manufactured by Hella, a globally trusted original equipment supplier

The Hella 004778001 push/pull switch is a versatile solution for controlling auxiliary circuits such as fog lights, work lights, or accessory loads. The included color lens options allow for intuitive panel labeling, while the built-in indicator bulb provides always-on low-level illumination so the switch is easy to locate in the dark. Also referenced as Hella part number 6ED 004 778-001.

Products specifications

Supplementary Article/Supplementary Info

with bulb

Rated Voltage [V]

12

Combi Switch Function

On/Off Switch

Capacity at 12V

8A

Light Design

Halogen

Control Type

Pull switch control

Switch Lighting

Orange

Capacity at 24V

4A

Lamp Type

W1,2W

Number of Connectors

3

Mounting Type

Bolted

SVHC

117-81-7; Bis (2-ethylhexyl)phthalate (DEHP)

Bore Ø [mm]

14,5
