Gates GlobalSpiral Hydraulic Hose Coupling Code O-Ring Flange

Gates GlobalSpiral hydraulic hose couplings with O-ring flange ends connect high-pressure hydraulic hose to flange ports. They are used on hydraulic lines in equipment and industrial systems. Each coupling pairs a hose barb with a Code 61 or Code 62 (heavy series) O-ring flange. This gives a leak-resistant, bolt-on connection that is also called a split-flange or SAE flange hose end fitting.

Key Features:

• O-ring flange connection: An O-ring seals against the port face, and the flange is bolted down for a secure joint.
• Steel construction: The couplings are made of steel with a zinc-based plated finish to resist corrosion.

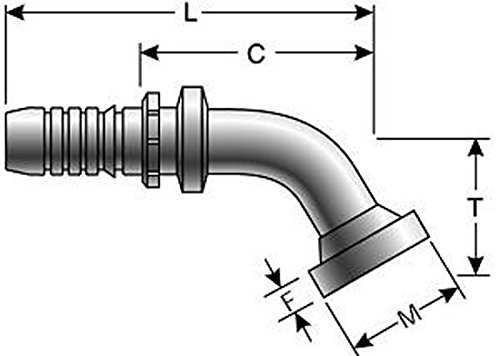

• Straight and bent-tube styles: The line includes straight couplings and bent-tube couplings in several angles, which helps with routing in tight spaces.
• High-pressure capability: They are designed for demanding hydraulic service, and working pressure ratings depend on the size and style.
• GlobalSpiral design: These couplings are made for use with Gates spiral-wire hydraulic hose, including 4-wire 100R12 type hose.

Gates is a well-known name in hydraulic hose and couplings. This product line gives dependable sealing and long service life in demanding hydraulic applications. Choose the correct flange code, hose size and angle for your system.
