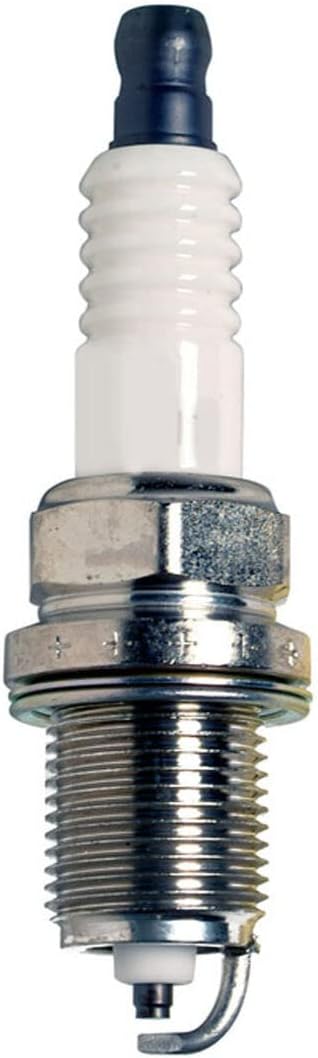

DENSO 3132 Standard Nickel Spark Plug - KJ16CR-L11

The DENSO 3132 (KJ16CR-L11) Standard Spark Plug delivers reliable OE-quality ignition performance with innovative U-Groove technology for improved combustibility and throttle response. Engineered to meet or exceed original equipment standards, this spark plug features a nickel center electrode and DENSO's patented U-Groove ground electrode design that generates a larger spark nucleus at the point of ignition.

Key Features:

• 100% pre-fired at the factory to ensure consistent quality and reliable operation
• Patented U-Groove ground electrode produces a larger, hotter spark for improved ignitability
• Projected tip design reduces carbon fouling and extends service life
• Copper core construction provides superior thermal conductivity and heat dissipation
• Purified alumina powder insulator delivers exceptional strength and thermal performance
• Five-rib insulator design prevents flashover and reduces voltage loss
• Machine-rolled threads prevent seizing and cross-threading during installation and removal
• Copper-glass seal bonds center electrode and insulator for a gas-tight seal
• Pre-gapped to 0.043 inches (1.1mm) for convenient installation

Specifications:

• Thread Diameter: 14mm
• Thread Pitch: 1.25mm
• Reach: 19mm (3/4 inch)
• Hex Size: 5/8 inch (16mm)
• Seat Type: Gasket
• Terminal Type: Solid
• Gap: 0.043 inch (1.1mm)
• Center Electrode: Nickel, necked-down design, 2.0mm
• Ground Electrode: Nickel with U-Groove, taper-cut shape

Installation Torque Specifications:

• Cast Iron Cylinder Heads: 26-30 lb-ft
• Aluminum Cylinder Heads: 15-22 lb-ft

This spark plug replaces numerous OEM part numbers including Honda 98079-5514G, Mazda 0000-18-F287, Chrysler 4606823AB, and many others, making it a versatile replacement option for a wide range of vehicles.
