PureFlow AirDog A7SABC513 AirDog II-5G DF-165-5G Diesel Lift Pump Fuel Air Separation System

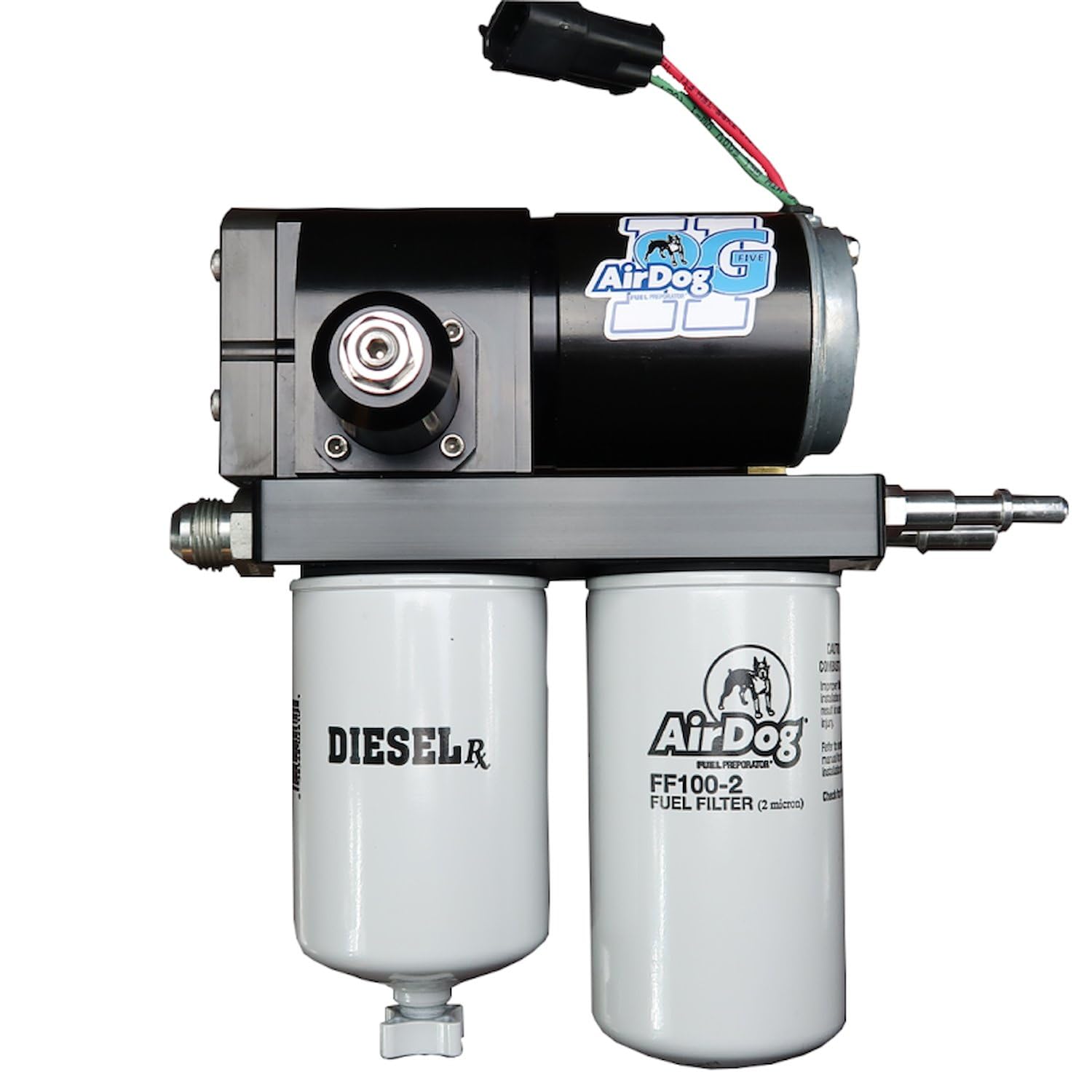

The PureFlow AirDog II-5G DF-165-5G (A7SABC513) is a premium diesel lift pump and fuel air separation system delivering 165 gallons per hour (GPH) of clean, air-free fuel to the injection system. Designed for stock to moderately modified diesel trucks, this system removes water, particulates, and entrained air from diesel fuel to protect the CP4 injection pump and maximize engine performance.

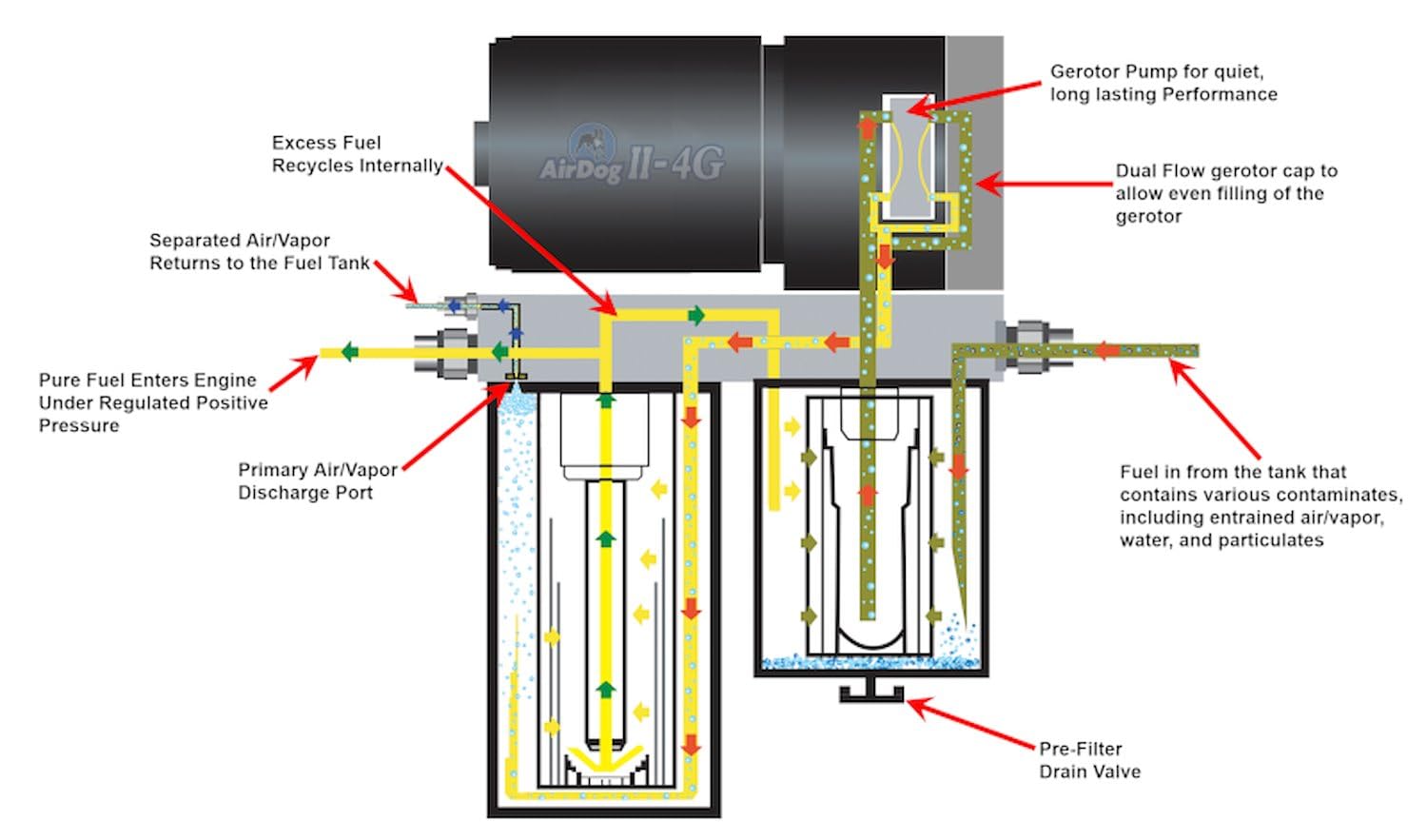

This frame-mounted system installs cleanly in front of the fuel tank. The suction side connects directly to the factory quick-disconnect fitting on the fuel module, while the pressure side ties into the factory injection pump feed line on the frame. Air and vapor separated from the fuel are returned to the tank through a filler neck tee. No fuel tank modifications are required.

AirDog II-5G Key Features:

• 165 GPH flow rate — sized for stock to aggressively modified applications
• Integrated adjustable diaphragm fuel pressure regulator — preset at 8 PSI, fully adjustable
• Demand Flow design — unused fuel is recirculated back through the filter base, not the tank
• Low-amperage, self-aligning 4G motor — proven quiet and reliable operation
• Intermediate pump shaft — centers the Gerotor pump and shaft seal for reduced wear
• Dual Feed Gerotor Pump — consistent and efficient fuel delivery
• 12-gauge wiring harness — runs from battery to internal motor connections
• Metri-Pack 280 connector — replaces Deutsch 2-pin for improved current flow with less heat
• Weather-pack connectors throughout the harness for element resistance
• California CARB EO Approved — CARB EO Number D-595-5
• Made in the USA

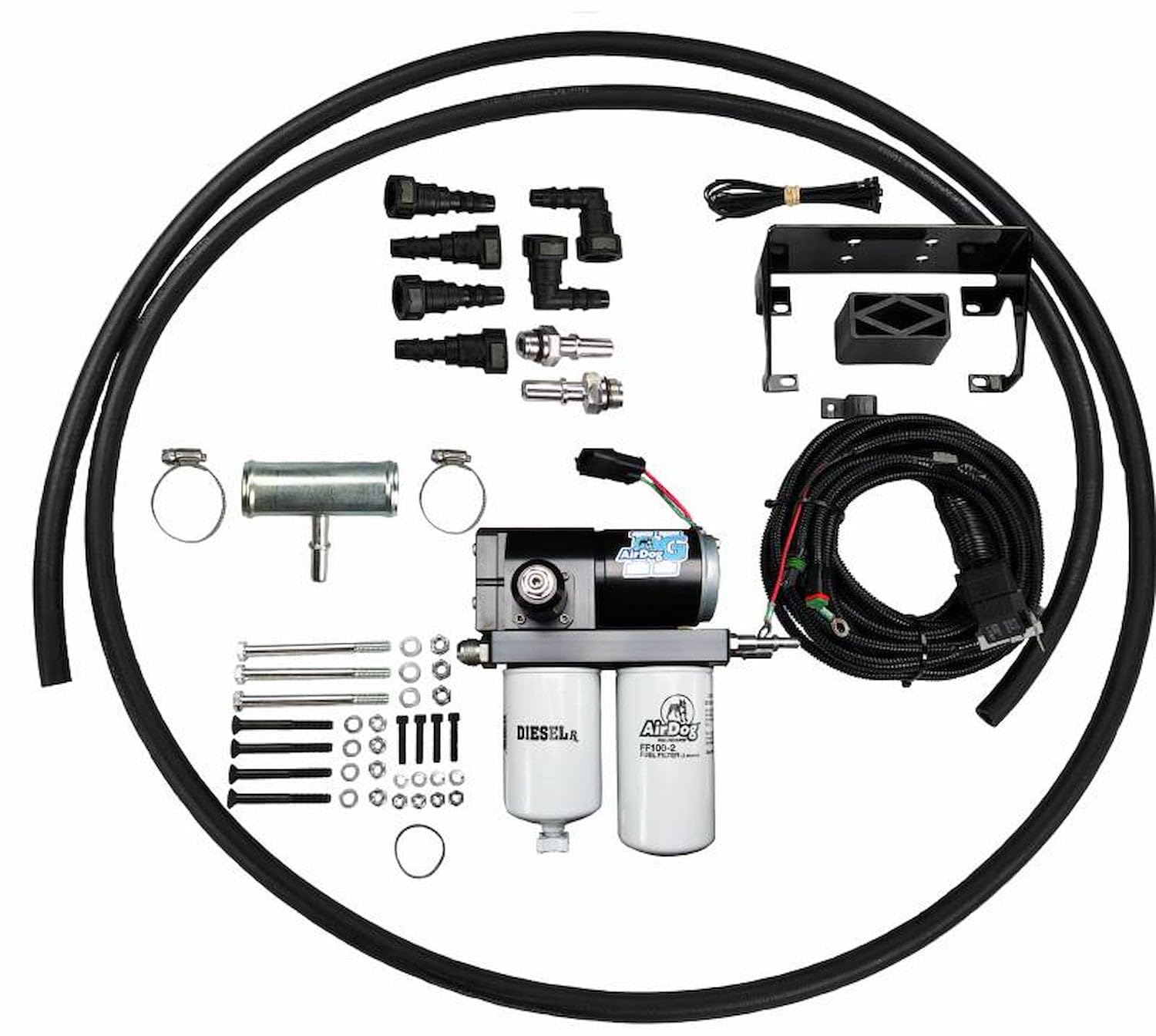

What's Included:

• 165 GPH fuel pump with motor
• Adjustable fuel pressure regulator
• Mounting bracket
• Wiring harness
• Fuel line
• Installation hardware

By eliminating air entrainment in the fuel supply, the AirDog II-5G helps maintain proper injection timing, promotes a more complete fuel burn, and improves overall engine efficiency across the power and torque range — a critical upgrade for the LML Duramax platform which does not come with a factory lift pump.
