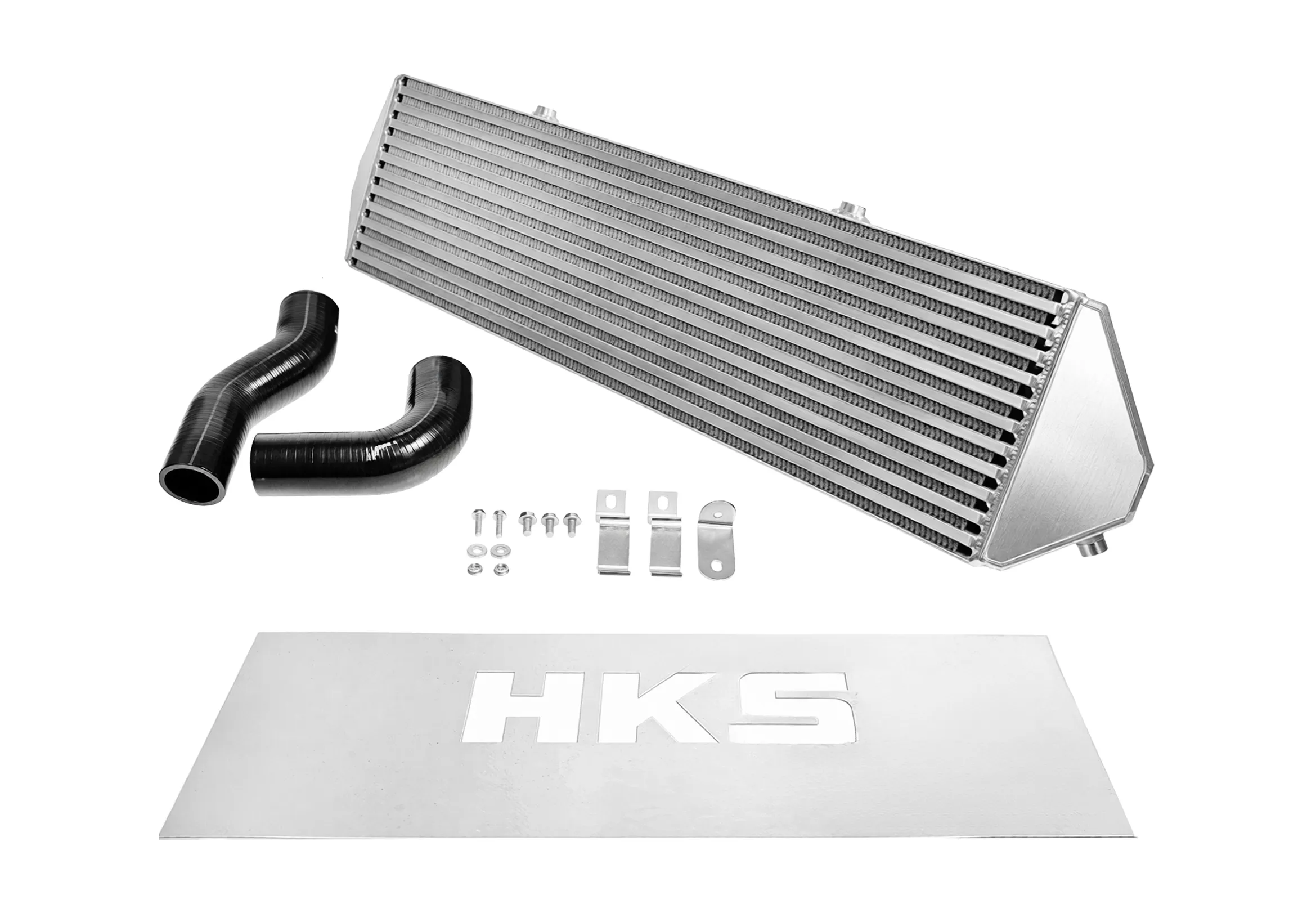

HKS 13001-AT011 R-Type Intercooler Kit for Toyota GR Yaris GXPA16 Gen 2 GR-DAT

The HKS 13001-AT011 R-Type Intercooler Kit is an engineered direct-replacement intercooler developed exclusively for the Toyota GR Yaris GXPA16 Gen 2 (2024+) equipped with the GR-DAT 8-speed automatic transmission. Designed to significantly reduce intake air temperatures and minimize pressure losses, this kit offers measurable performance gains over the factory intercooler on the G16E-GTS turbocharged engine.

HKS increased both the height and thickness of the core compared to the OEM unit, optimizing fin shape to maximize cooling performance while maintaining airflow volume — helping to reduce the impact on engine coolant temperature. The inlet and outlet ports have been upgraded from the stock 45mm to a larger 50mm diameter to better support higher output applications.

Key Features:

• Core Type: Laminated (R-Type) — engineered for high-output and circuit use
• HKS Core Size: 645mm x 205mm x 105mm (vs. OEM 645mm x 145mm x 80mm)
• Core Spec: 12 Fins, 11 Tubes — upgraded from OEM 10 Fins, 9 Tubes
• Inlet/Outlet: φ50mm (upgraded from OEM φ45mm)
• Inlet Tank Material: Aluminum
• Outlet Tank Material: Aluminum (vs. OEM resin)
• Silicone Hoses: 4PLY reinforced silicone (vs. OEM 1PLY)
• Dyno-proven average gain of approximately 9 hp on a stock engine
• Capable of supporting setups up to 600 hp
• Compatible with the factory Cooling Package and optional sub-radiator
• Includes all required installation hardware and instructions
• Manufactured in Japan

Important Notes:

• Exclusive to GR-DAT (8-speed automatic transmission) models only — not compatible with manual transmission variants
• Minor trimming is required during installation
• When using intercooler water spray, the separately sold Water Spray Bracket (HKS 13999-AT001) is required
• Not compatible with HKS Piping Kit 13002-AT001 or 13002-AT002
• This product is not CARB legal and is not for sale in California

The HKS 13001-AT011 intercooler kit is the ideal thermal management upgrade for GR Yaris GR-DAT owners seeking proven cooling efficiency with a clean, factory-style fitment and the reliability of HKS engineering.
