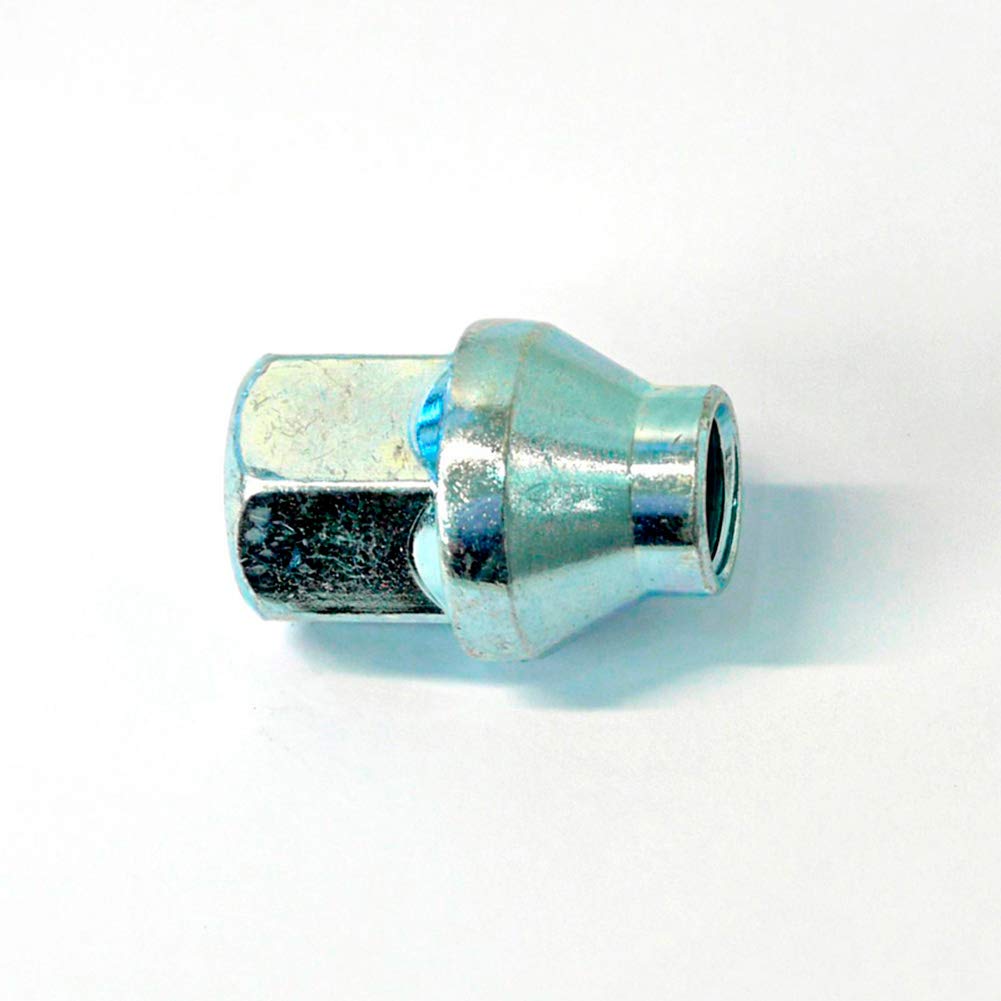

H&R 125001MZ5 M12x1.5 Conical ET Shank Lug Nut with 5mm Shaft Silver Single

The H&R 125001MZ5 is a precision-engineered conical ET/shank lug nut designed for use with aftermarket alloy wheels that require a guiding shank to properly center and seat the fastener. Made in Germany, this single wheel nut delivers the exacting tolerances and quality finish H&R is known for throughout the performance and motorsport community.

Key Specifications:

• Thread Size: M12 x 1.50 (ISO Metric Coarse)
• Overall Length: 34mm
• Shank Length: 5mm
• Shank Diameter (O.D.): 14.7mm
• Seat Type: Conical / Tapered (60-degree cone seat), closed end
• Hex / Wrench Size: 19mm (standard hex socket, non-splined)
• Finish: Silver
• Material: Metal (steel)
• Country of Manufacture: Germany
• EAN: 4048419119612

The ET shank design is the defining feature of the 125001MZ5. The 5mm guiding shank with a 14.7mm outer diameter allows the lug nut to pass through the wheel's lug hole bore and engage the stud with additional thread engagement compared to a standard conical nut — making it especially valuable when pairing OEM wheel studs with aftermarket wheels that have deeper lug bore pockets. The closed-end design protects threads from contamination and provides a clean, finished appearance.

Installation Note: A standard 19mm hex socket (not splined) is required for installation. Confirm the wheel's lug hole outer diameter is sufficient to accommodate the socket during torquing. Sold individually — order the quantity needed to complete your wheel installation.
