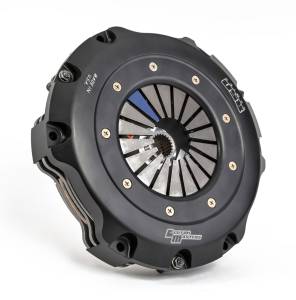

Clutch Masters 15016-TD8R-XW FX850 Twin Disc Race Clutch Kit Pull Type

(2002-2005 Subaru Impreza WRX)

Manufacturer

Part Number

15016-TD8R-XW
Black Friday Price

$1,479.47

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Clutch Masters FX850 Twin Disc Race Clutch Kit (15016-TD8R-XW) is a premium performance clutch system engineered for high-horsepower applications where maximum clamping force and reliable power transfer are essential. Featuring the TD8R "Race" configuration, this kit uses one sprung ceramic disc directly connected to a second ceramic rigid disc, delivering aggressive grip and consistent engagement at the limit.

At 8.5 inches (216mm) in diameter, the FX850 Twin Disc is purpose-built for engines and transmissions with smaller bell housings, making it an ideal solution for compact turbocharged platforms demanding serious clutch capacity. This is a Pull Type application and does not include a flywheel.

Key Features:

  • Race Stage (TD8R): 1 sprung ceramic disc paired with 1 ceramic rigid disc for maximum holding power
  • 8.5" (216mm) Twin Disc design optimized for smaller bell housings
  • Cover assembly machined from billet aluminum and Type 3 hard anodized for superior strength and corrosion resistance
  • Billet aluminum cover provides approximately 25% more tensile strength than competing cast units
  • Significantly increased clamping force via dual disc design — average 50% increase in pedal pressure depending on application
  • Only 0.003" of cover flex vs. up to 0.030" in cast or stamped alternatives, allowing more consistent and confident clutch operation
  • Pull Type configuration
  • Components available separately for economical repair and maintenance
  • Positive release mechanism for ease of high-RPM staging and shifting
  • Overall assembly weight is over 50% lighter than OEM equivalents

Kit Includes:

  • Billet Aluminum Cover Assembly with attached Diaphragm
  • Pressure Plate Ring
  • Two Discs (ceramic sprung + ceramic rigid)
  • One Mid Plate
  • Release Bearing
  • Pilot Bearing (when applicable)
  • Pressure Plate Bolts

The Clutch Masters FX850 850 Series Race Twin Disc clutch kit is pure racing technology that can also serve demanding high-performance street applications. Individual components are sold separately, keeping long-term ownership costs manageable even in the most strenuous use cases.

Products specifications

Fits

2002-2005 Subaru Impreza WRX

Flywheel Bolts Included

No

Alignment Tool Included

Yes

Release Bearing Included

YES

Flywheel Included

No

Pressure Plate Bolts Included

Yes

Pilot Bearing Included

Yes

Disc Material

Dual Ceramic

Disc Type

Sprung

Pressure Plate

8.50" Billet Aluminum Cover (Pull)

Torque Capacity Rating

800 ft.lbs
