Clutch Masters 08022-TD7R-X FX725 Twin Disc Race Clutch Kit

Manufacturer

Part Number

08022-TD7R-X
Black Friday Price

$1,195.89

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Clutch Masters FX725 Twin Disc Clutch Kit (08022-TD7R-X) is a high-performance, race-focused clutch system built around a 7.25-inch (184mm) twin disc configuration. Engineered for engines and transmissions with smaller bell-housings, this kit is the ultimate solution for drag racing applications demanding maximum power transfer and reliability.

The TD7R "Race" variant features two ceramic rigid discs, delivering maximum grip and heat resistance for sustained high-performance use. The twin disc design significantly increases total clamping force and usable disc area, achieving dramatically higher torque capacity with only a moderate increase in pedal effort compared to a single-disc setup.

Key Features:

  • 7.25" (184mm) Twin Disc Design — Optimized for smaller bell-housing applications, reducing rotating mass for quicker, more responsive shifting
  • TD7R Race Configuration — Includes 2 ceramic rigid discs for maximum grip and heat tolerance under sustained racing conditions

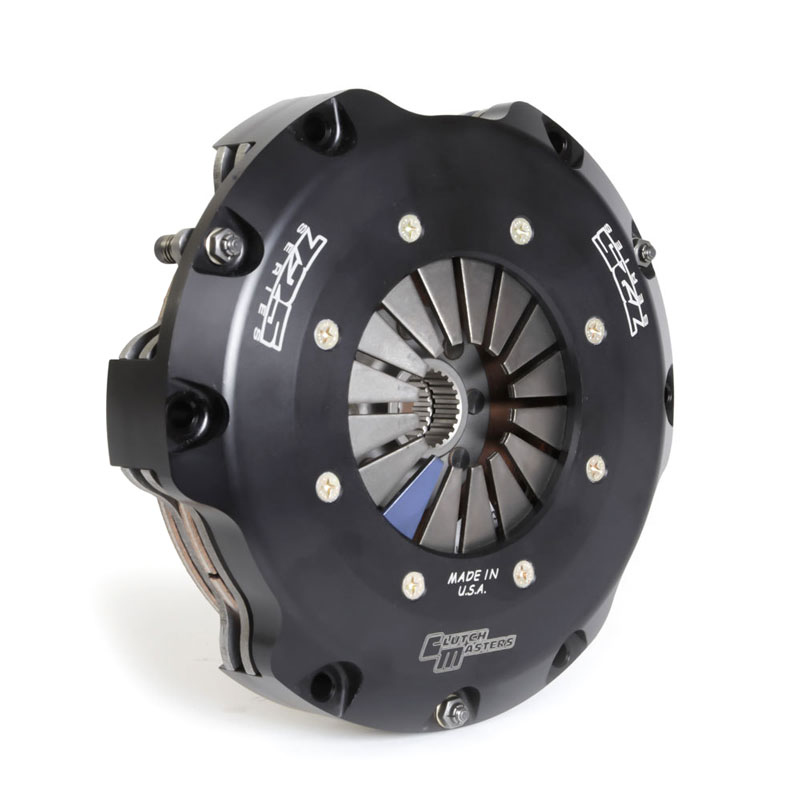

  • Billet Aluminum Cover Assembly — CNC-machined and Type 3 hard anodized, providing approximately 25% more tensile strength than competitive cast units
  • Minimal Cover Flex — Billet construction limits cover flex to just .003", versus up to .030" on cast or stamped alternatives, ensuring precise and consistent clutch engagement
  • QR Quick Release Pressure Plate System — Proprietary Clutch Masters technology using three spring-loaded bolts for smooth, even engagement and disengagement, reducing internal clutch noise and chatter by up to 50%
  • Estimated Torque Capacity: ~700 ft-lbs — Built to handle extreme horsepower and torque demands of drag racing applications
  • Release Bearing Included — Complete kit includes disc(s), pressure plate, throwout bearing, and alignment tool
  • Flywheel Not Included — Requires a compatible Clutch Masters flywheel (sold separately); compatible with CM aluminum or steel flywheel options

Developed from decades of motorsport experience, the Clutch Masters FX725 series is pure racing technology. While primarily intended for competition use, improvements in friction materials over the years have made occasional street driving feasible. This kit is the ideal choice for high-horsepower builds where maximum clutch performance and reliability are non-negotiable.

Products specifications

Flywheel Bolts Included

No

Disc Type

Rigid

Alignment Tool Included

Yes

Release Bearing Included

YES

Flywheel Included

No

Pressure Plate Bolts Included

Yes

Pilot Bearing Included

Yes

Disc Material

Dual Ceramic

Pressure Plate

7.25" Billet Aluminum cover

Torque Capacity Rating

700 ft.lbs
