Clutch Masters 02027-TD7S-X FX725 Twin Disc Street & Race Clutch Kit 7.25in

(2004 Volkswagen Passat GLS 4 Motion; 2005 Volkswagen Passat GL)

Manufacturer

Part Number

02027-TD7S-X
Sale Price

$1,104.22

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

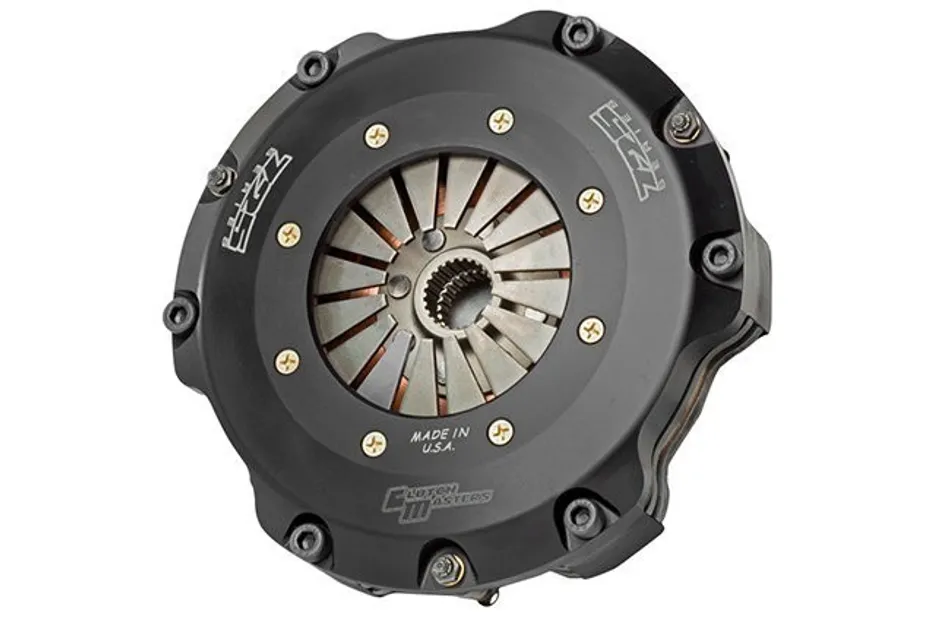

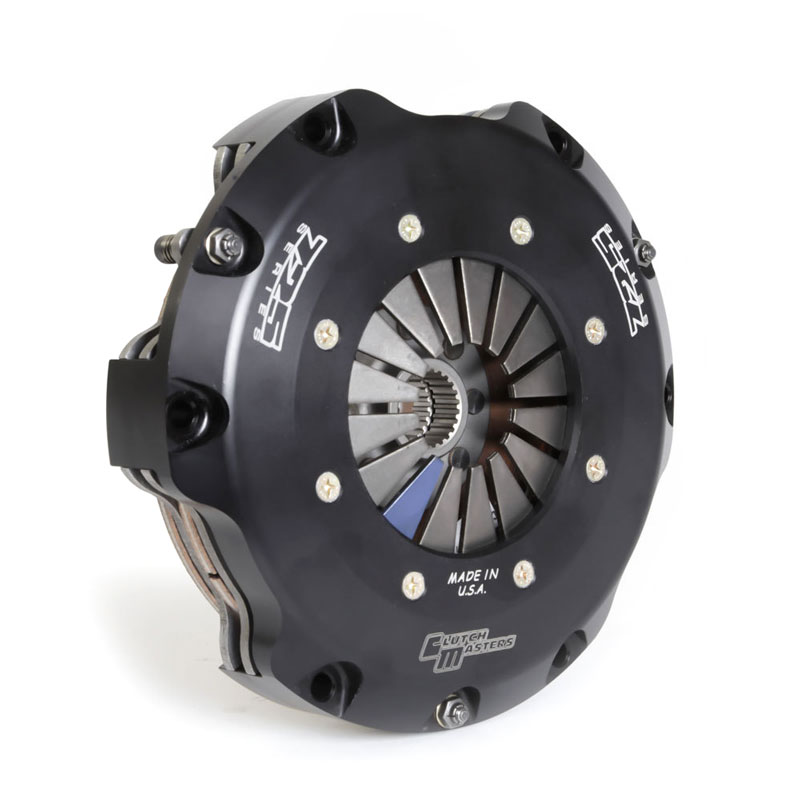

The Clutch Masters 02027-TD7S-X FX725 725 Series Twin Disc Clutch Kit is a high-performance 7.25" (184mm) twin disc clutch system engineered for engines and transmissions with smaller bell-housings demanding maximum power transfer. Built from decades of motorsport engineering experience, this Street and Race (TD7S) configuration pairs one ceramic rigid disc with one fiber tuff rigid disc, striking the ideal balance between aggressive torque capacity and manageable street driveability.

The cover assembly is machined from billet aluminum and Type 3 hard anodized, delivering approximately 25% greater tensile strength compared to conventional cast or stamped units. By minimizing flex to just .003" versus up to .030" in cast alternatives, every input from the throwout bearing is used solely to engage and disengage the clutch — resulting in more consistent, confident pedal feel and superior clamping force. The twin-disc design expands usable disc area significantly, enabling an estimated torque capacity of 600 ft-lbs while keeping rotating mass low for quicker throttle response and faster shifts.

Clutch Masters' exclusive Quick Release (QR) Pressure Plate System incorporates three spring-loaded bolts that allow the pressure plate to engage and disengage evenly and smoothly, reducing internal clutch noise and chatter by up to 50% — a feature unique to Clutch Masters multi-disc kits that makes this system far more street-friendly than traditional race clutches.

Kit Includes:

  • Hard Anodized Billet Aluminum Cover Assembly with attached Diaphragm
  • Titanium Reinforcement Bushings for the QR Pressure Plate System
  • Pressure Plate Ring
  • Quick Release Pressure Plate System
  • One Ceramic Rigid Disc
  • One Fiber Tuff Rigid Disc
  • One Floating Mid Plate
  • Release Bearing
  • Pilot Bearing
  • Pressure Plate Bolts
  • Disc Alignment Tool

Important Notes:

  • Flywheel is NOT included — a Clutch Masters flywheel is required for installation
  • Must use Clutch Masters Flywheel: FW-027-TDS or FW-027-TDA (sold separately)
  • This is an upgrade kit intended for modified, high-performance applications

The FX725 Twin Disc clutch kit is the go-to choice for drag racing builds and high-horsepower street/strip vehicles requiring a compact, lightweight multi-disc clutch solution that won't sacrifice drivability.

Products specifications

Fits

2004 Volkswagen Passat GLS 4 Motion; 2005 Volkswagen Passat GL

Flywheel Bolts Included

No

Disc Type

Rigid

Alignment Tool Included

Yes

Release Bearing Included

YES

Flywheel Included

No

Pressure Plate Bolts Included

Yes

Pilot Bearing Included

No

Disc Material

Street/Race: Ceramic and Organic

Pressure Plate

7.25" Billet Aluminum

Torque Capacity Rating

600 ft.lbs (estimated)
