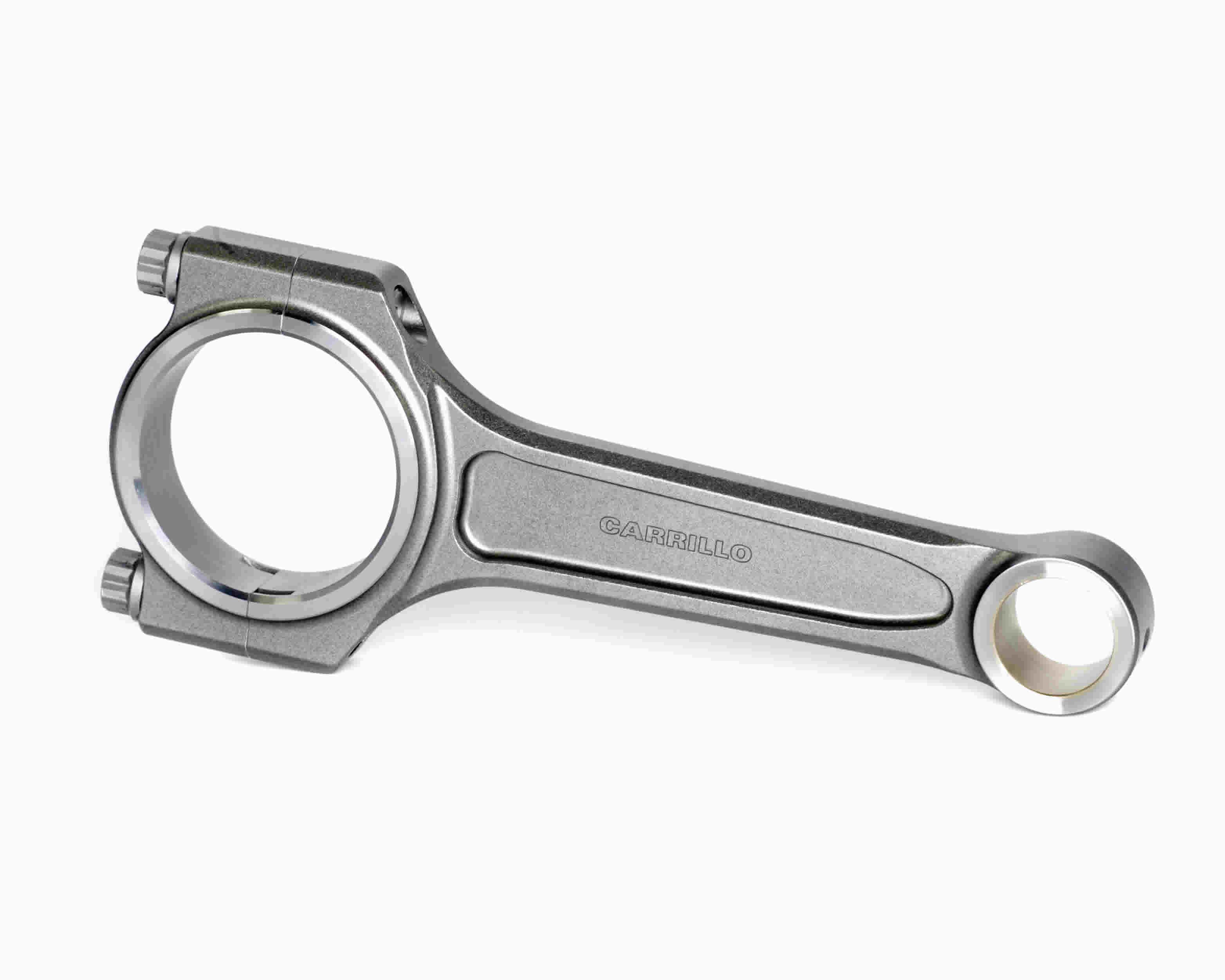

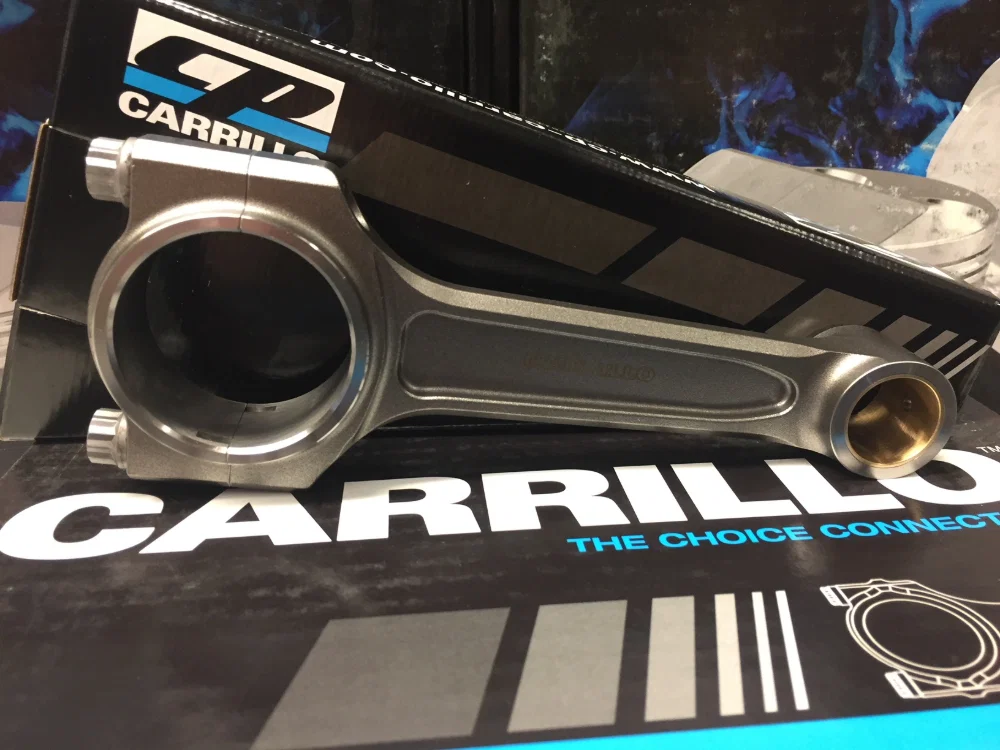

Carrillo SCR5435-1 Pro-A Beam Connecting Rod WMC Bolt Single

The Carrillo SCR5435-1 is a single Pro-A beam forged connecting rod equipped with a standard WMC (H11 Tool Steel) rod bolt, designed for high-performance and competition engine builds. This is a single-rod purchase, ideal for replacement or custom odd-cylinder engine configurations.

Carrillo connecting rods are machined from a proprietary chrome, nickel, moly, vanadium alloy that meets all VAR (Vacuum Arc Re-Melt) ASTM standards. All heat treat processes utilize a mar-aged operation, resulting in a UTS of 195,000 psi and a yield strength of 182,000 psi, while maintaining low notch-sensitivity and excellent ductility. Each rod is manufactured from an oversized forging to ensure proper grain flow and eliminate surface inclusions.

Key Features:

• Rod Style: Pro-A (A-Beam) — a lightweight design optimized for high engine speeds and moderate cylinder pressures
• Rod Length: 5.906" (150mm center-to-center)
• Wrist Pin: 22mm, bushed, full-floating design
• Bolt Type: 3/8" WMC (H11 Tool Steel) — 220 KSI ultimate tensile strength
• Advertised Weight: 509g
• Sold as: Single rod (1 piece)
• Set balanced to ±1 gram when purchased as a set
• 100% Magnaflux inspected for material integrity
• Laser edged and fully machined
• Proudly Made in the USA

The WMC bolt features asymmetrical threads — each thread is slightly different from the previous — providing evenly distributed thread engagement that increases clamp load and improves fastener fatigue life. WMC bolts are rated for approximately 15–18 torque cycles. Always use the included assembly lubricant on both the threads and under the bolt head during installation to ensure proper torque and clamping load.
