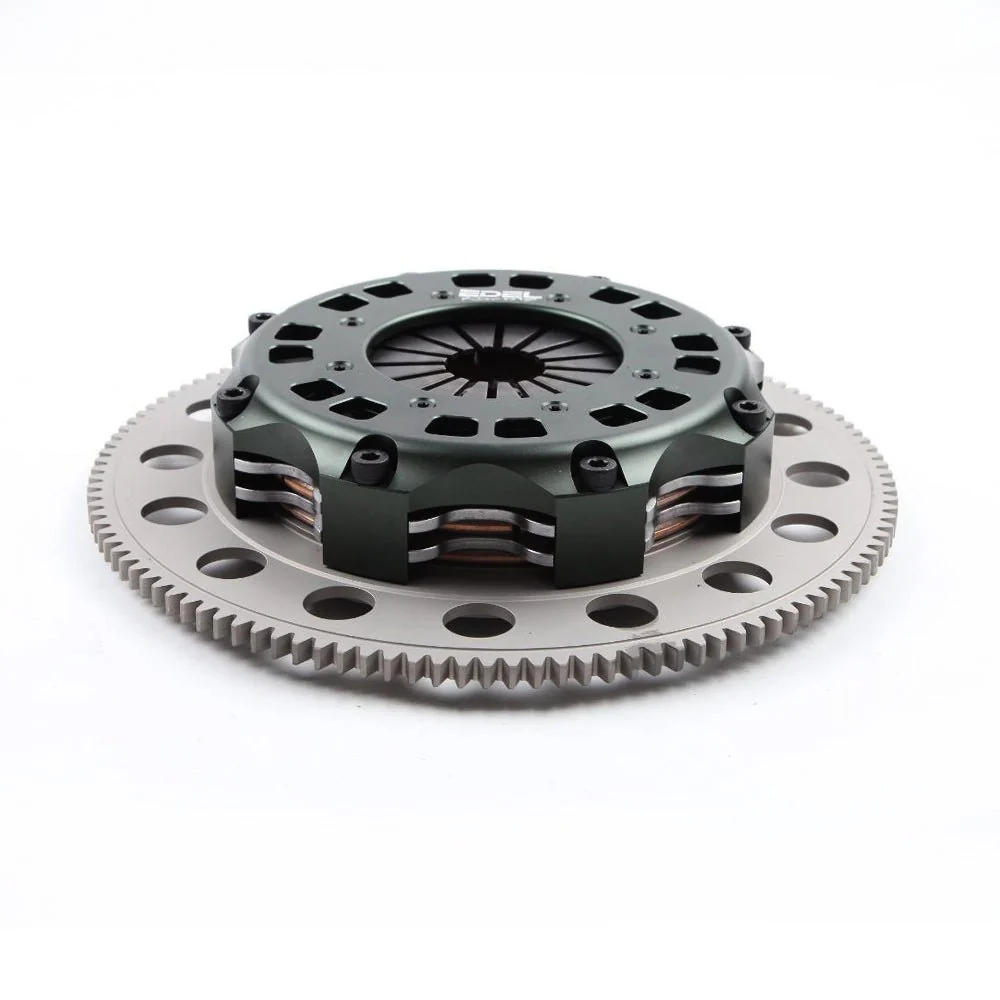

Blox Racing BXFL-10500 Twin Disc Clutch Kit 7.25in Sprung Cerametallic by Edel

The Blox Racing BXFL-10500 is a 7.25-inch Twin Disc Race Clutch Kit engineered by Edel for BLOX Racing, purpose-built for the Subaru WRX EJ255 platform. Developed and extensively tested as a proven performance product, this twin disc system is the ideal upgrade for turbocharged and high-output builds demanding reliable, high-capacity clutch engagement on the street, drag strip, road course, or circuit.

The kit features a sprung center hub disc design that helps dampen drivetrain shock and deliver smoother engagement compared to solid-hub units, making it more streetable without sacrificing race-level holding capacity. The vented pressure plate cover is crafted from aircraft-quality aluminum alloy, reducing rotating mass while increasing clamp load and improving modulation feel. All pressure plates are load-tested for quality assurance before leaving the factory.

Key Features:

• Twin disc design with cerametallic friction material for high heat tolerance, quick recovery, and long service life
• Sprung center hub discs for improved street drivability and drivetrain vibration dampening
• Aircraft-quality aluminum alloy vented pressure plate cover — smooth feel, increased clamp load
• Push-style release mechanism compatible with OEM hydraulic system — no modification required
• One-piece billet chromoly flywheel included for reduced rotational inertia
• Bearing contact diameter: 44–52mm | Bearing load @ 38mm: 210kg
• Release travel required: 5mm
• Clutch disc diameter: 7.25 inches (185mm) | Disc thickness: 0.250 inches (6.35mm)
• Torque capacity: up to 850 ft-lb | Power handling: up to 1,200 hp

What's Included:

• Two (2) twin cerametallic clutch discs
• Vented aluminum alloy pressure plate assembly
• One-piece billet chromoly lightweight flywheel
• Throw-out bearing
• Clutch alignment tool

Designed as a direct OEM replacement requiring no modifications, the BXFL-10500 is a complete kit solution for Subaru WRX EJ255 owners seeking race-proven clutch performance with the reliability to back it up.
