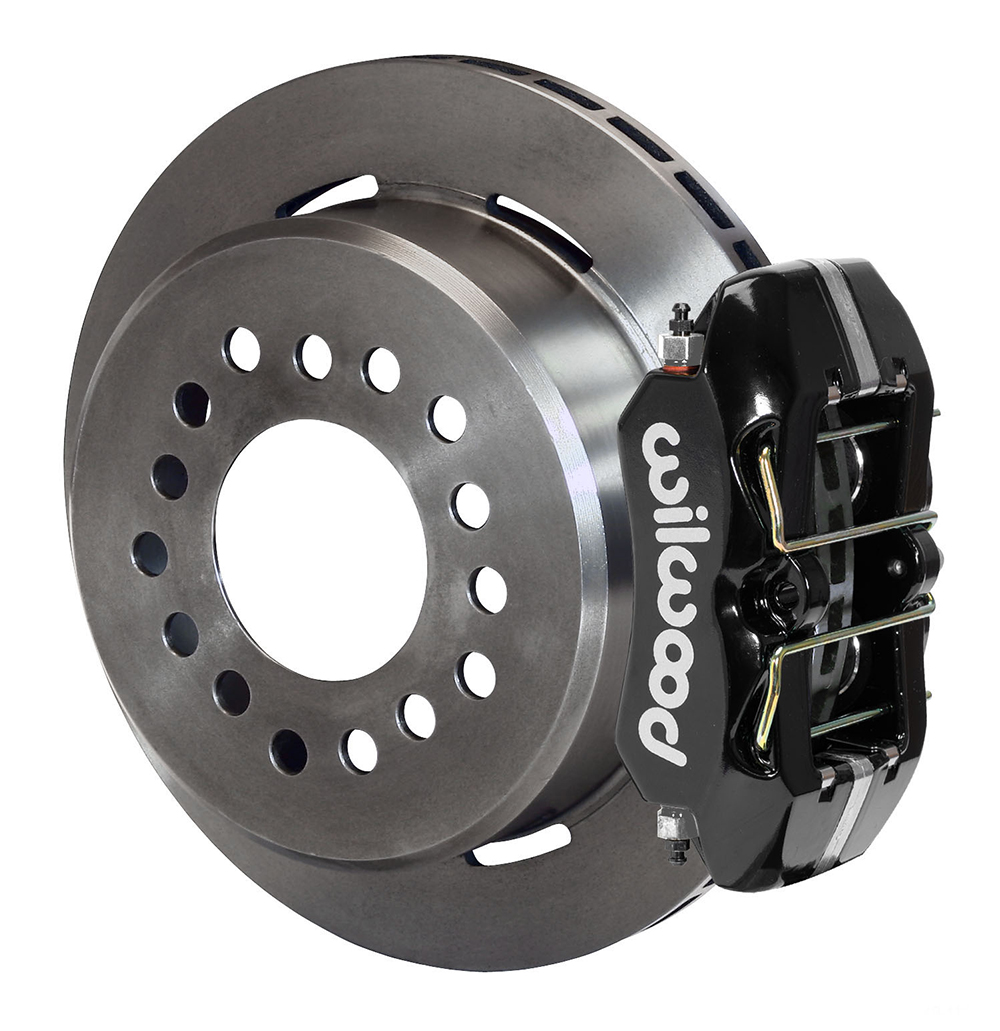

Wilwood 140-11385-CFG Forged Dynapro Low-Profile Rear Parking Brake Kit 11" Rotor

The Wilwood 140-11385-CFG is a Forged Dynapro Low-Profile Pro-Series Rear Disc Brake Kit engineered to deliver a complete disc brake conversion solution for popular muscle car rear axles. Designed for applications that require an integrated parking brake assembly and extra clearance for smaller-diameter wheel fitment, this kit is a bolt-on upgrade for the Large Chevy C10 rear axle with a 2.42" axle offset.

Key Features:

• Forged Billet Dynapro Low-Profile 4-Piston Calipers — precision-machined for maximum clamping force and resistance to deflection under load
• 11.00" One-Piece Hat and Rotor Assembly — provides optimized and balanced braking performance for street/strip and show machines
• Integrated Internal Parking Brake Shoe System — neatly hidden for a clean installation with superior static holding power
• 14" Minimum Wheel Diameter Required — low-profile design allows fitment in 14" to 15" rim applications where standard big brake kits won't clear
• Large Chevy C10 Rear End Axle — 2.42" axle offset, 5-lug mount pattern (5 x 4.75 / 5 x 5)
• BP-10 High-Friction Brake Pads — 5.1 in² pad area for strong, consistent stopping power
• Compatible caliper finishes and rotor designs available to personalize style and optimize performance
• Manufactured in the United States

Kit Specifications:

• Rotor Diameter: 11.00"
• Rotor Thickness: 0.81"
• Axle Offset: 2.42"
• Mount Type: Lug
• Caliper Style: 4-Piston Forged Dynapro Low-Profile
• Brake Pad Plate: 4812
• Brake Pad Volume: 1.71 in³
• Piston Part Numbers: 200-7518 (x2)
• O-Ring Kit: 130-2658
• Crossover O-Ring Kit: 130-10540
• Parking Brake Cable Kit: 330-9371 (not included — sold separately)

Wilwood's engineering department uses the latest computer-aided design, finite element analysis, and dynamic cycle test equipment to deliver high-performance, reliable braking solutions. This kit is ideal for custom performance builds, street/strip applications, and show vehicles running the Large Chevy C10 rear end.
