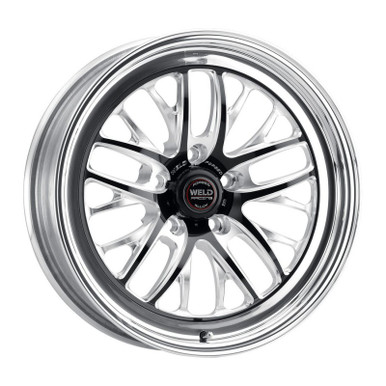

Weld Racing 82HB7110W62F RT-S S82 17x11 Forged Drag Wheel Black High Pad 5x115mm Single Beadlock

The Weld Racing RT-S S82 17x11 Drag Wheel (P/N 82HB7110W62F) is a purpose-built, high-performance forged aluminum wheel engineered for serious drag racing applications. As the most aggressive design in the RT-S Series 8 lineup, the S82 combines a striking appearance with race-proven construction for maximum performance at the strip.

Key Features:

• Size: 17" diameter x 11" wide
• Bolt Pattern: 5x115mm
• Backspace: 6.2"
• Pad Type: High Pad — designed to clear large aftermarket and multi-piston brake calipers
• Beadlock: Black Single Beadlock with MT (Mickey Thompson) bead-style tire compatibility
• Construction: 3-piece modular design featuring a forged billet aluminum center welded to cold-forged rims for an exceptional strength-to-weight ratio
• Finish: Gloss black center with polished outer shell
• Design: Signature split 5-spoke pattern with a secondary 5-spoke machined accent
• Includes: Center cap, valve stem, and 12-point beadlock hardware
• Center Bore: 3.18" (80.77mm)

The single beadlock ring provides a mechanically secured tire bead, preventing tire slip under the extreme launch forces encountered in drag racing. The High Pad configuration provides the necessary caliper clearance for big-brake setups commonly found on high-horsepower muscle cars and performance builds.

Built to order in custom finish options with a lead time of approximately 4–8 weeks if not in stock. This wheel is constructed from forging-grade aluminum alloys, delivering the strength required for high-horsepower applications while keeping unsprung weight to a minimum.
