McLeod 6912-04MD RST Street Twin Disc Clutch Kit 800HP GM LS Metric Pattern

The McLeod RST Street Twin Disc Clutch Kit (6912-04MD) is an economically priced, high-performance twin disc clutch engineered for serious street builds. Rated to handle up to 800 horsepower, this kit delivers the holding capacity needed for high-output engines while maintaining a driver-friendly, street-drivable character.

The 6912-04MD variant is designed for GM LS motor applications with a metric bolt pattern and dowel pin holes, utilizing McLeod's patented adapter ring system to mount directly to your existing compatible flywheel — no dedicated flywheel required in most applications.

Key Features:

• 800 HP torque capacity — handles extreme power without sacrificing streetability
• Twin organic-lined friction discs — dual full-face discs provide smooth, progressive engagement with soft pedal effort
• 9.687-inch (246mm) disc diameter — full-face disc style for maximum clamping surface
• 1-1/8 in. x 10-spline input shaft — compatible with GM LS-series transmissions
• Diaphragm-style pressure plate — consistent clamping force across the RPM range
• Solid hub design — for positive power transfer
• Patented adapter ring design — mounts to your existing compatible flywheel; flywheel not included
• Alignment tool included — simplifies installation
• Mounting hardware included

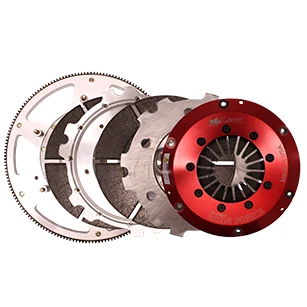

Kit Includes:

• Diaphragm pressure plate
• Two organic friction discs
• Floater plate
• Patented adapter ring
• Alignment/pilot tool
• Mounting hardware

Important Notes: This clutch is designed for high-horsepower street use and is not intended for competition or racing applications. For dedicated competition use, see McLeod's RXT or RXT 1200 series. A break-in period of approximately 500 miles of normal city driving is recommended — avoid aggressive launches or wide-open-throttle shifts during break-in. Flywheel compatibility should be verified prior to installation; recessed-hub flywheels may not be compatible.
