RADIUM Engineering 20-1000-06375-85 6AN ORB Swivel Banjo 8.5mm Barb Bulkhead to 3/8in SAE Male Fitting

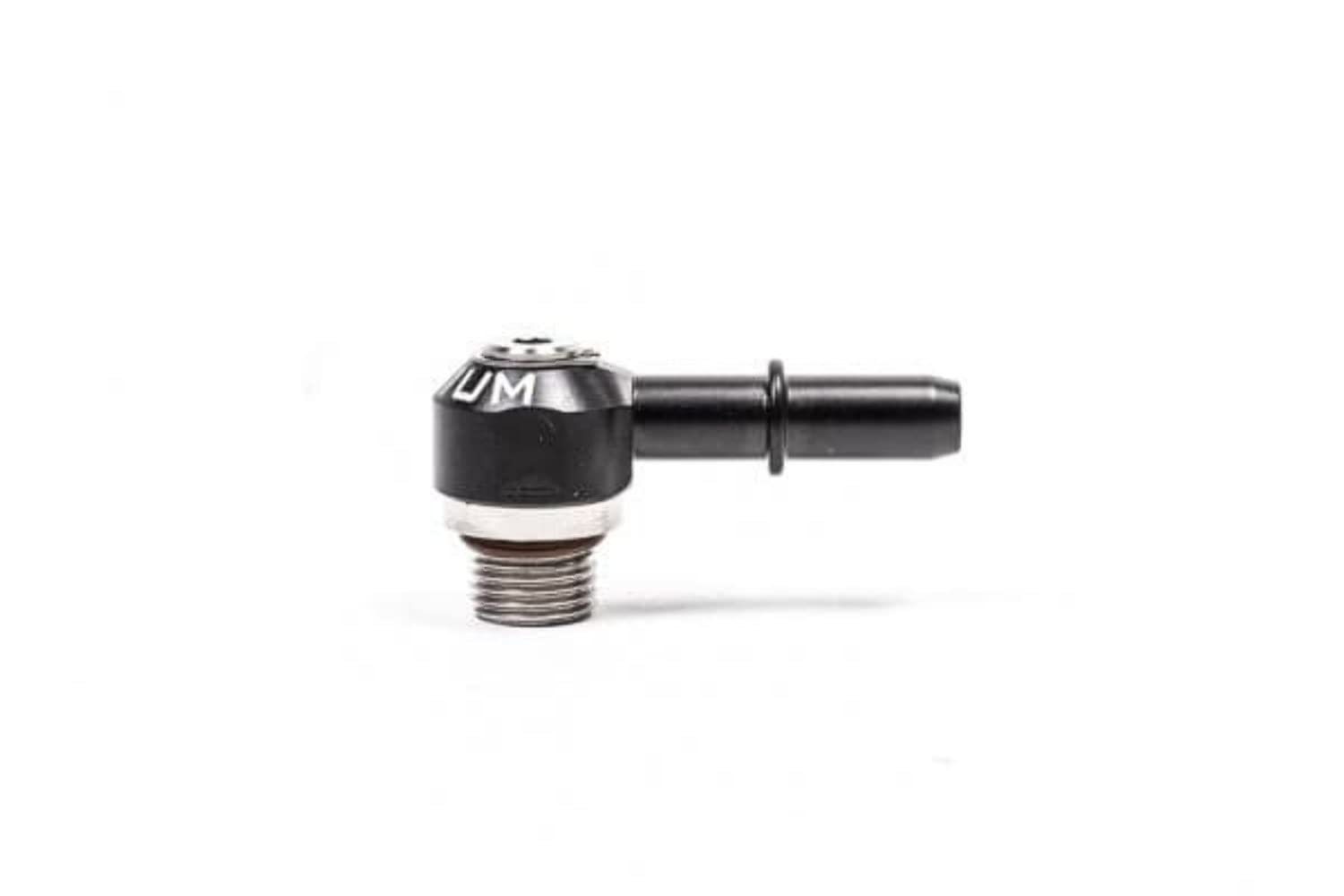

The Radium Engineering 20-1000-06375-85 is a low-profile, 90-degree swivel banjo fitting designed for high-performance fuel and oil plumbing. It threads into a 6AN ORB (O-Ring Boss) female port on one end and delivers a male 3/8-inch SAE quick-connect on the other, while also incorporating an 8.5mm hose barb on the stainless steel bulkhead side. The swivel design allows full 360-degree rotation even after installation, making routing hoses in tight engine bays significantly easier.

Key Features:

• 90-degree low-profile swivel banjo design — rotates 360° even after installation
• 6AN ORB (9/16"-18) threaded inlet — compatible with standard ORB-ported components
• Male 3/8-inch SAE quick-connect outlet for OEM-style fuel line connections
• 8.5mm hose barb on the stainless steel bulkhead side for additional line routing
• Installed height: 0.797 in (20.2 mm) from mounting surface to top
• Constructed from anodized aluminum and stainless steel for corrosion resistance and durability
• FKM O-rings included for compatibility with all fuel and oil types
• Rated for high-pressure systems — do not exceed 400 PSI
• Compatible with all fuel types, engine oil, and coolant

This fitting is an ideal solution for builders integrating Radium Engineering fuel hangers, surge tanks, or any 6AN ORB-ported component that requires a compact, swiveling transition to a 3/8-inch SAE quick-connect fuel line. The dual-connection design — with both a 3/8-inch SAE male fitting and an 8.5mm barb on the bulkhead side — makes it uniquely versatile for complex plumbing layouts. Service kits (Radium P/N 20-0723-01) are available separately to replace internal O-rings and the external retaining snap-ring.
