KC HiLiTES 91350 Gravity LED Pro6 Single Pair Pack System

The KC HiLiTES Gravity LED Pro6 Single Pair Pack System delivers professional-grade off-road illumination powered by KC's patented Gravity® Reflective Diode (GRD) technology. Each 6" Pro6 light uses a 20W Gravity® G6 LED optical insert housed in a durable UV-treated composite body, available in Spot, SAE/ECE Driving, and Wide-40 beam patterns to match your specific lighting needs.

Key Features:

• Patented Gravity® Reflective Diode (GRD) technology for superior beam shape, clarity, and light performance
• Patented Infinity Ring™ system provides a race-proven, durable housing with a distinctive look
• Universal highly adjustable ball mount system for easy installation and precise light aiming
• UV-treated composite housing for long-lasting durability in harsh conditions
• CREE XPL HD LED source at 5000K color temperature for crisp, white light output
• Shatter-resistant polycarbonate lens for added protection
• Multiple beam patterns: Spot, SAE/ECE Driving, and Wide-40
• IP68 waterproof rating — fully sealed against dust and water immersion
• Wide voltage range: 9–32V compatible

Light Performance (Per Light):

• Raw Lumens: 2,300 lm
• Lux @ 10 Meters: Driving SAE/ECE — 1,310 lx | Spot — 2,150 lx | Wide-40 — 390 lx
• Candela: Driving SAE/ECE — 131,000 cd | Spot — 215,000 cd | Wide-40 — 39,000 cd
• Beam Distance: Driving SAE/ECE — 724m | Spot — 972m | Wide-40 — 395m

Specifications:

• Wattage: 20W per light
• LED Source: CREE XPL HD
• LED Color Temperature: 5000K
• Amp Draw: 1.63A per light
• Voltage: 9–32V
• IP Rating: IP68
• Dimensions (per light): W — 6.00" x H — 7.00" x D — 3.125"

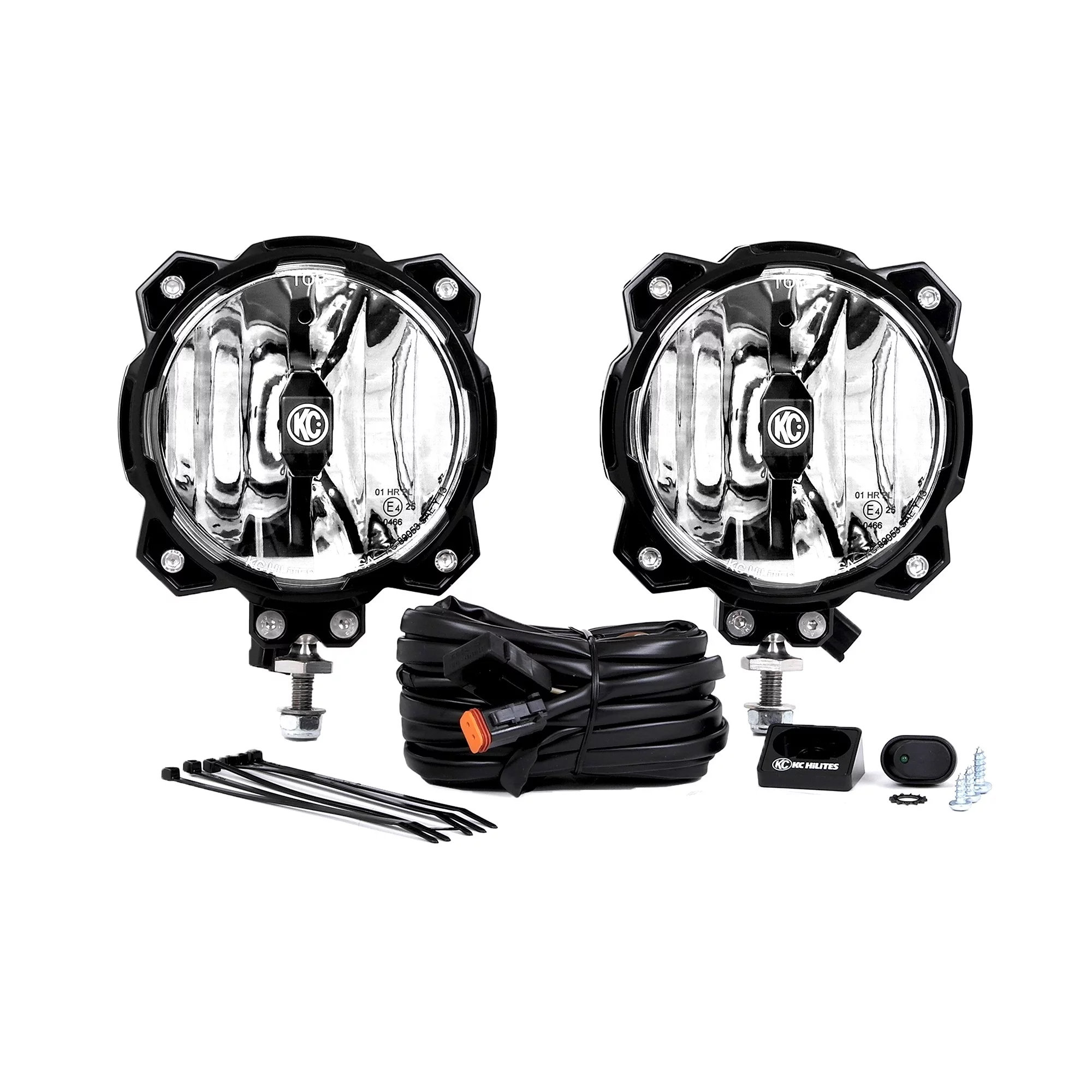

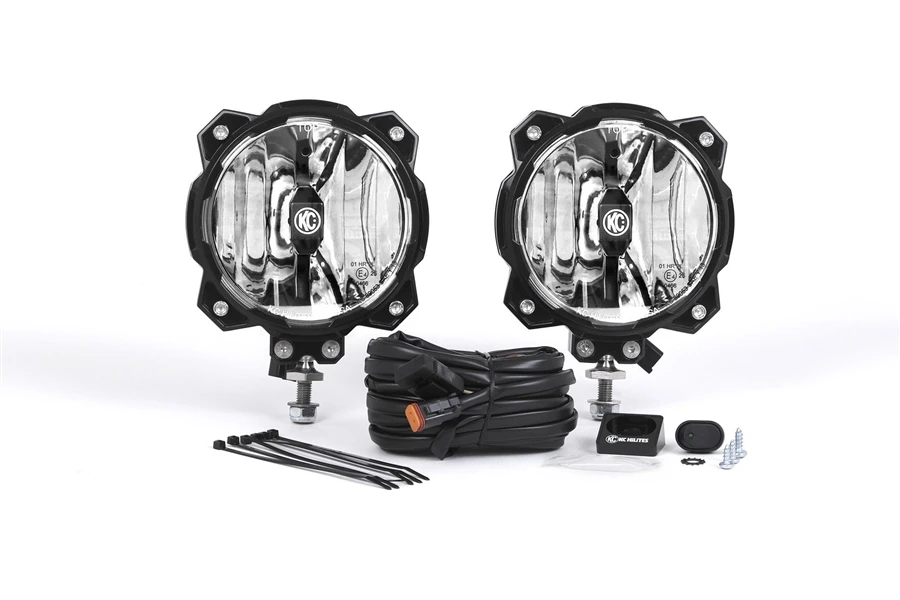

Parts Included:

• (2) Gravity® LED Pro6 Single Lights
• (2) Light Covers — Black with Yellow KC Logo
• Mounting Hardware
• Performance Wiring Harness with 2-Pin Waterproof Connectors and Illuminated LED Light Switch

Ideal for bumpers, A-pillar ditch light setups, and overhead mounting, the Pro6 Pair Pack system is a complete plug-and-play solution for serious off-road LED lighting.
