ACT T2SS-B02 Mod-Twin 225 XT Sprung Street Twin-Disc Clutch Kit

The ACT T2SS-B02 Mod-Twin 225 XT Sprung Street Clutch Kit is a high-capacity, SFI 1.2-certified twin-disc clutch system engineered for high-powered street and street/strip performance vehicles. Delivering an impressive 850 ft-lb of torque capacity, this kit is purpose-built for builds that have exceeded the limits of any single-disc clutch solution.

At the heart of this system are two 225mm (8.8") organic friction discs that multiply effective friction surface and heat capacity far beyond single-disc alternatives. Combined with a spring-centered Mono-Drive hub, this design delivers uncompromised pedal feel, smooth engagement, and reduced driveline shock from torsional vibration—making it equally at home on the street and the strip.

The fully modular and rebuildable design means individual components can be ordered separately, protecting your long-term investment. ACT's patented Monoloc Collar ensures uniform bearing and pressure plate loading for proper alignment and consistent clamping force.

Key Features:

• Twin-disc organic friction design — 225mm / 8.8" disc diameter
• 850 ft-lb torque capacity (78% over OE)
• Xtreme pressure plate for maximum clamping performance
• Sprung Mono-Drive hub for smooth street engagement and torsional vibration control

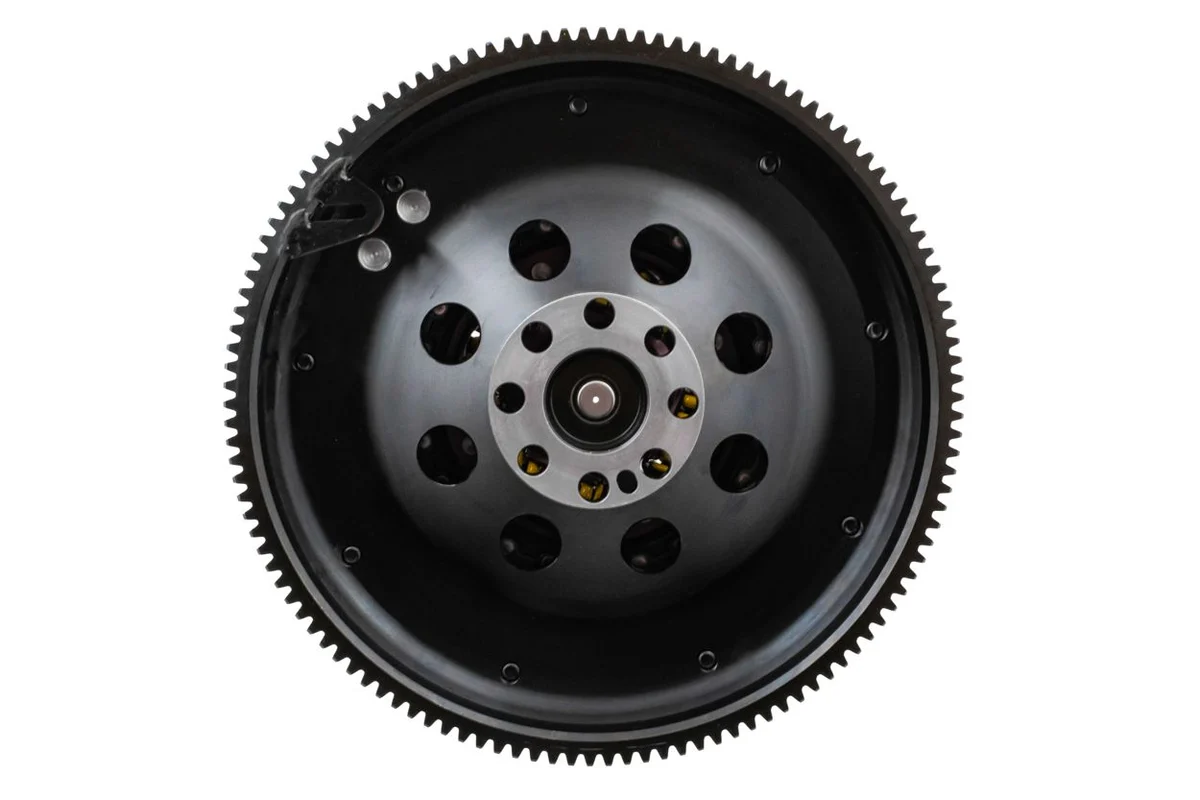

• CNC-machined, dynamically balanced flywheel included
• Patented Monoloc Collar for precise alignment
• SFI 1.2 certified
• Fully modular and rebuildable design
• 1.375" input shaft diameter
• 12-month warranty

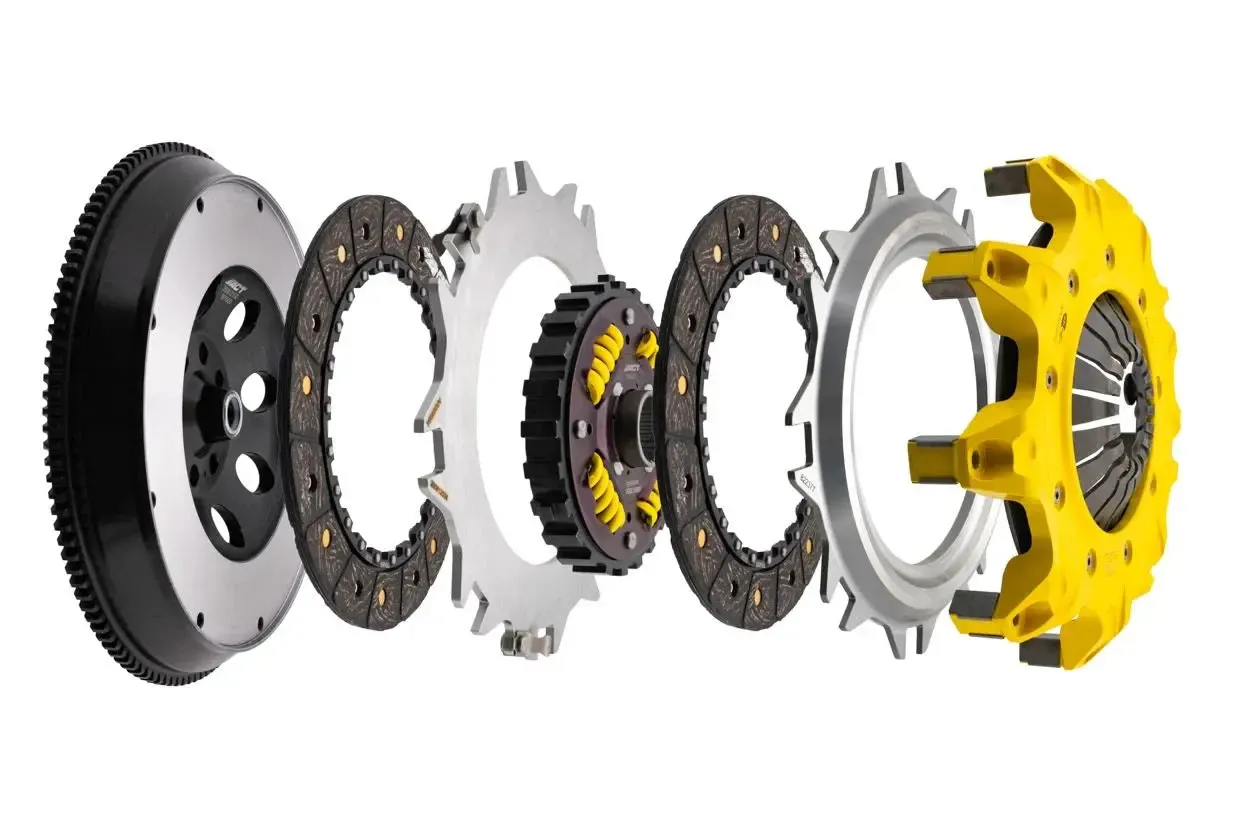

What's Included:

• CNC-machined, dynamically balanced flywheel
• Pressure plate cover
• Diaphragm spring
• Two organic friction discs
• Sprung Mono-Drive hub assembly
• Floater
• Monoloc Collar
• Release bearing
• Alignment tool
• Pilot bearing (if required)

The ACT T2SS-B02 Mod-Twin 225 XT Sprung Street Kit is the definitive clutch upgrade for serious street performance builds that demand maximum torque capacity without sacrificing everyday drivability.
