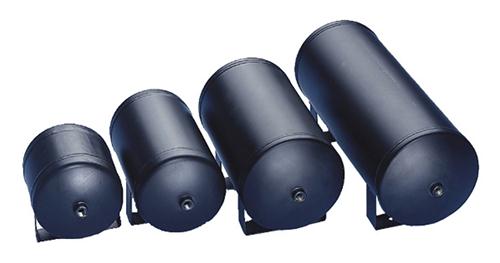

Firestone 9544 5-Gallon Air Tank with 3x 1/4in NPT and 1x 1/8in NPT Ports

The Firestone 9544 is a 5-gallon compressed air storage tank designed to serve as a reliable air supply source for air helper spring and air suspension systems. Its generous capacity helps enable faster inflation of air springs, reducing lag time and improving overall system response.

Built from steel and finished with a baked black enamel coating on both the interior and exterior surfaces, the 9544 resists corrosion for long-term durability. The tank is pressure tested to twice its working pressure and is SAE J10 compliant, with a maximum rated operating pressure of 150 PSI.

Key Features:

• 5-gallon compressed air capacity for fast, reliable air spring inflation
• Port configuration: (3) 1/4 in. NPT ports and (1) 1/8 in. NPT port
• Maximum operating pressure: 150 PSI
• Steel tank construction with baked black enamel interior and exterior coating
• Pressure tested to twice the working pressure for safety and reliability
• Manufactured to SAE J10 specifications
• Resists internal and external corrosion
• 2-year limited warranty

The Firestone 9544 air tank is a versatile addition to any air suspension or air helper spring setup, providing the on-demand compressed air volume needed for consistent leveling performance.
